NP70L-PHMDSW (1986)

Toyota Starlet

Production Dec 1986 - Dec 1989
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8612- )NP70..LHD

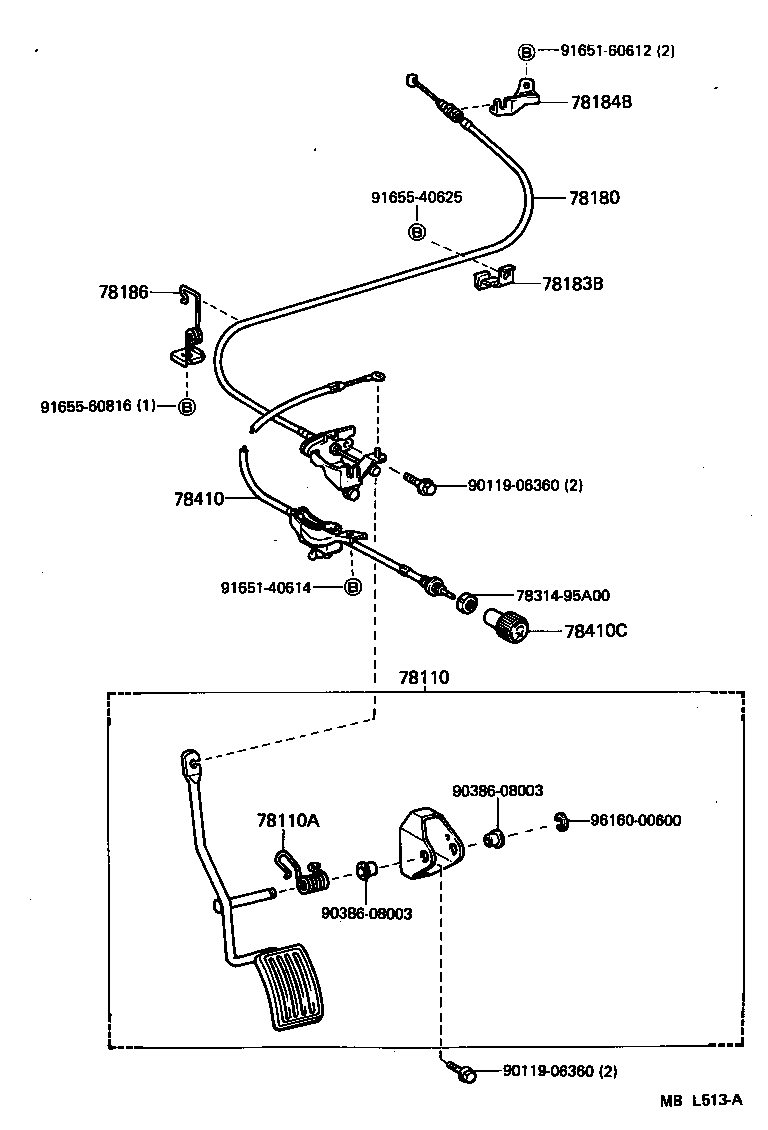

Click highlighted areas on diagram

diagram 78110 78110A 78180 78183B 78184B 78186 7831495A00 78410 78410C 9011906360 9011906360 9038608003 9038608003 9165140614 9165160612 9165540625 9165560816 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-10020

EP7#,NP70..LHD

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18053

EP7#,NP70..LHD

 1
78180 - WIRE ASSY, ACCELERATOR
78180-10360

NP70..LHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-10050

NP70..LHD

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
26662-55010

NP70

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-10110

NP70..LHD

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-10020

NP70..LHD

 1
78410C - KNOB, THROTTLE CABLE
78411-10010

NP70

 1
Common parts
78314-95A00
90119-06360
90386-08003
91651-40614
91651-60612
91655-40625
91655-60816
96160-00600
