NP70L-PHMDSW (1986)

Toyota Starlet

Production Dec 1986 - Dec 1989
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

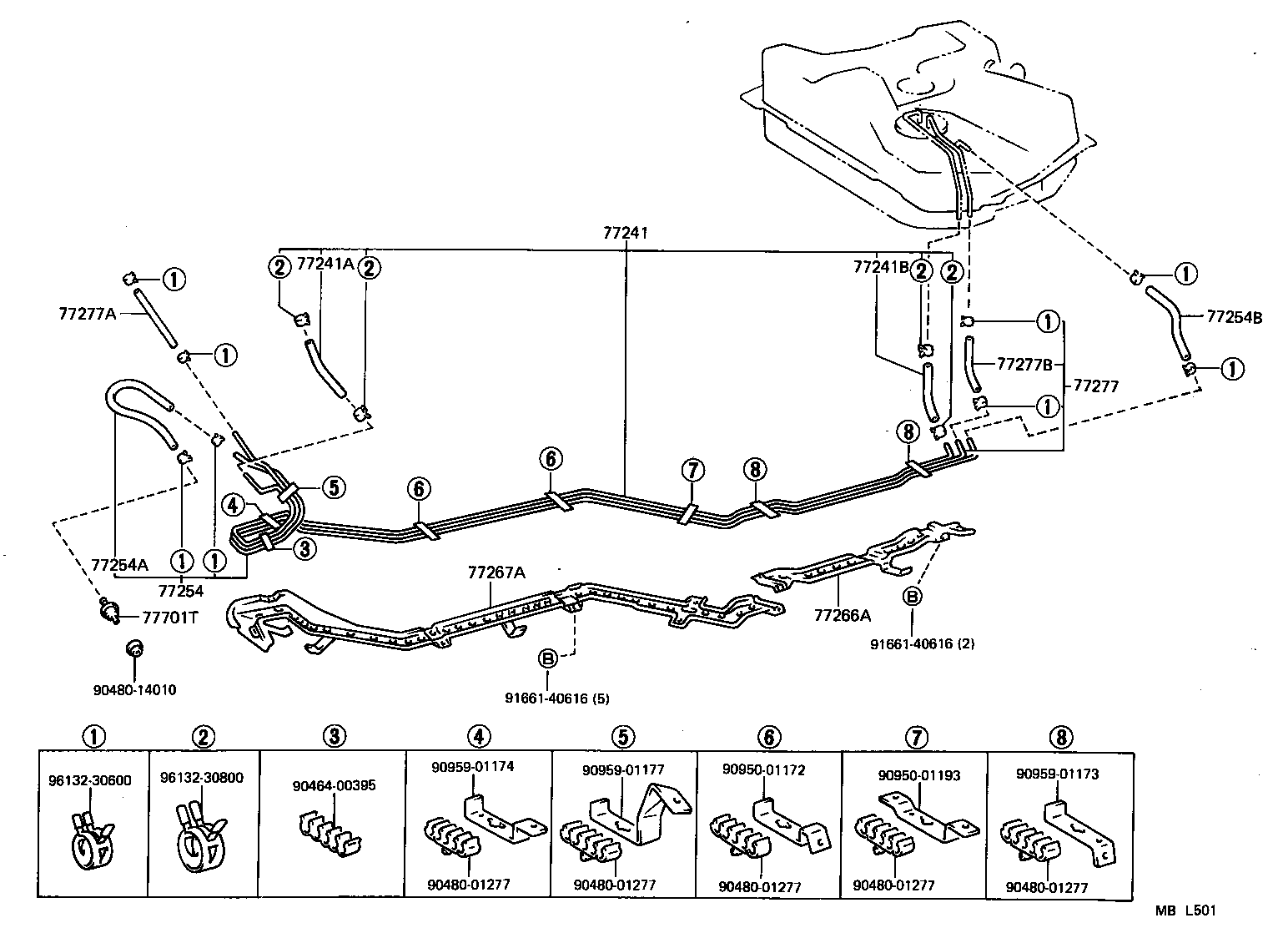

ILLUST NO. 2 OF 2(8612- )NP70

Click highlighted areas on diagram

diagram 77241 77241A 77241B 77254 77254A 77254B 77266A 77267A 77277 77277A 77277B 77701T 9046400395 9048001277 9048001277 9048001277 9048001277 9048001277 9048014010 9095001172 9095001193 9095901173 9095901174 9095901177 9166140616 9166140616 9613230600 9613230800
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77205-10190

NP70..LHD

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08020

NP70

*H,L=200,ID=7.6

 1
95333-08020

NP70

L=200,ID=8

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08020

NP70

*H,L=200,ID=7.6

 1
95333-08020

NP70

L=200,ID=8

 1
77254 - TUBE, FUEL EMISSION, NO.1
77019-10030

EP7#,NP70..LHD

 1
77019-10030

EP7#,NP70..LHD..(EUG,FRG)

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
77249-10030

EP7#,NP70..LHD..(EUG,FRG)

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06030

EP7#,NP70

*H,L=260

 1
95333-06030

EP7#,NP70

*H,L=260

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-10020

EP7#,NP70

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-10040

EP7#,NP70

 1
77277 - TUBE, FUEL RETURN, NO.1
77207-10080

NP70..LHD

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12094

NP70

*H,L=360

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95333-04020

NP70

*H,L=120

 1
95332-04020

NP70

*H,L=120,ID=4

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10069

EP7#,NP70..EUG,FRG

 1
Common parts
90464-00395
90480-01277
90480-14010
90950-01172
90950-01193
90959-01173
90959-01174
90959-01177
91661-40616
96132-30600
96132-30800
