NP70L-PHMDSW (1986)
Toyota Starlet

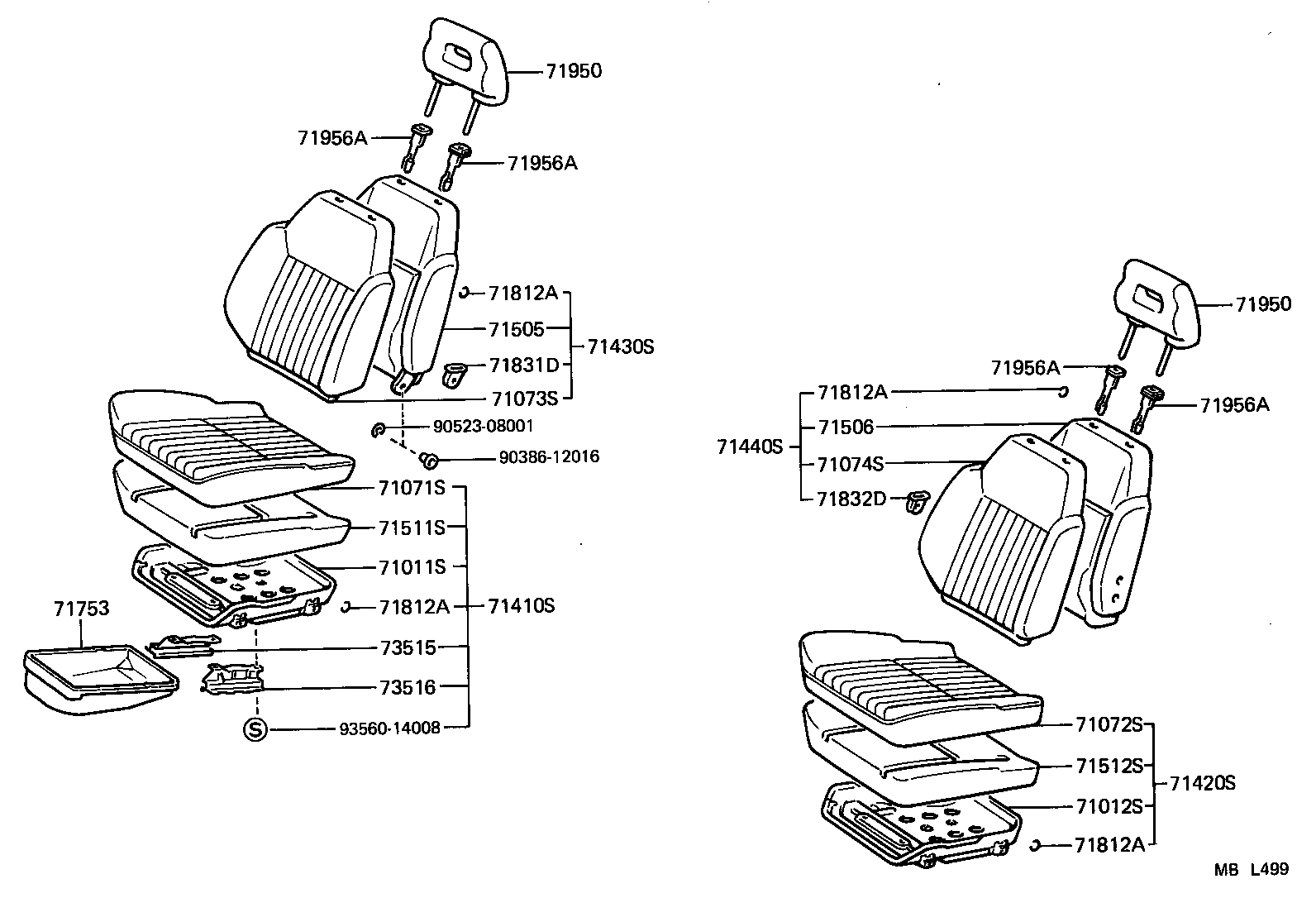

ILLUST NO. 1 OF 2(8612- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-10080 |
EP7#,NP70 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-10010 |
EP7#,NP70 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1085003 |
EP7#,NP70..XL FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1082006 |
EP7#,NP70..STD,XL FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1082003 |
EP7#,NP70..STD,XL FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1085003 |
EP7#,NP70..XL FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1082003 |
EP7#,NP70..STD,XL FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1082006 |
EP7#,NP70..STD,XL FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1084003 |
EP7#,NP70..XL FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1081003 |
EP7#,NP70..STD,XL FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1081006 |
EP7#,NP70..STD,XL FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1032006 |
EP7#,NP70..STD,XL FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71074-1034003 |
EP7#,NP70..XL FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1032003 |
EP7#,NP70..STD,XL FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1C07003 |
EP7#,NP70..STD,XL FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1C08003 |
EP7#,NP70..LHD..XL W/SEAT UNDER POCKET,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1C08006 |
EP7#,NP70..LHD..XL W/SEAT UNDER POCKET,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1C07006 |
EP7#,NP70..STD,XL FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1C09003 |
EP7#,NP70..LHD..XL W/SEAT UNDER POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1C16003 |
EP7#,NP70..XL FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1076006 |
EP7#,NP70..STD,XL FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1078003 |
EP7#,NP70..XL FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-1076003 |
EP7#,NP70..STD,XL FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1C02003 |
EP7#,NP70..STD,XL FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1C02006 |
EP7#,NP70..STD,XL FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1C03003 |
EP7#,NP70..XL FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1C01006 |
EP7#,NP70..STD,XL FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1C02003 |
EP7#,NP70..XL FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1C01003 |
EP7#,NP70..STD,XL FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-10020 |
EP7#,NP70..GL,XL *LBS |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-10020 |
EP7#,NP70..GL,XL *LBS |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-10100 |
EP7#,NP70 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-10100 |
EP7#,NP70 |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-10010 |
EP7#,NP70..GL,S,XL |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
EP7#,NP70 |
33 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
EP7#,NP70 |
33 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
EP7#,NP70 |
33 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
EP7#,NP70 |
33 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-10010 |
EP7#,NP70 |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-10010 |
EP7#,NP70 |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1010016 |
EP7#,NP70..GL,STD,XL BROWN,BROWN,TRIM4# |
1 | ||
| 71910-1010013 |
EP7#,NP70..GL,STD,XL GRAY,GRAY,TRIM1# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1010016 |
EP7#,NP70..GL,STD,XL BROWN,BROWN,TRIM4# |
1 | ||
| 71910-1010013 |
EP7#,NP70..GL,STD,XL GRAY,GRAY,TRIM1# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001001 |
EP7#,NP70 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71930-1006016 |
EP7#,NP70 W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001016 |
EP7#,NP70 W/O(LOCK),W/O LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006001 |
EP7#,NP70 W(LOCK),W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001001 |
EP7#,NP70 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71930-1006016 |
EP7#,NP70 W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001016 |
EP7#,NP70 W/O(LOCK),W/O LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006001 |
EP7#,NP70 W(LOCK),W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001001 |
EP7#,NP70 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71930-1006016 |
EP7#,NP70 W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001016 |
EP7#,NP70 W/O(LOCK),W/O LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006001 |
EP7#,NP70 W(LOCK),W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001001 |
EP7#,NP70 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71930-1006016 |
EP7#,NP70 W(LOCK),W/LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001016 |
EP7#,NP70 W/O(LOCK),W/O LOCK,BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006001 |
EP7#,NP70 W(LOCK),W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-10020 |
EP7#,NP70..LHD..(GL,S,XL) |
1 | ||
| 73516 - RAIL, FRONT SEAT UNDER TRAY, NO.2 | ||||
| 73508-10020 |
EP7#,NP70..LHD..(GL,S,XL) |
1 | ||
| Common parts | ||||
| 90386-12016 | ||||
| 90523-08001 | ||||
| 93560-14008 | ||||
