NP70L-PHMDSW (1986)

Toyota Starlet

Production Dec 1986 - Dec 1989
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8612- )

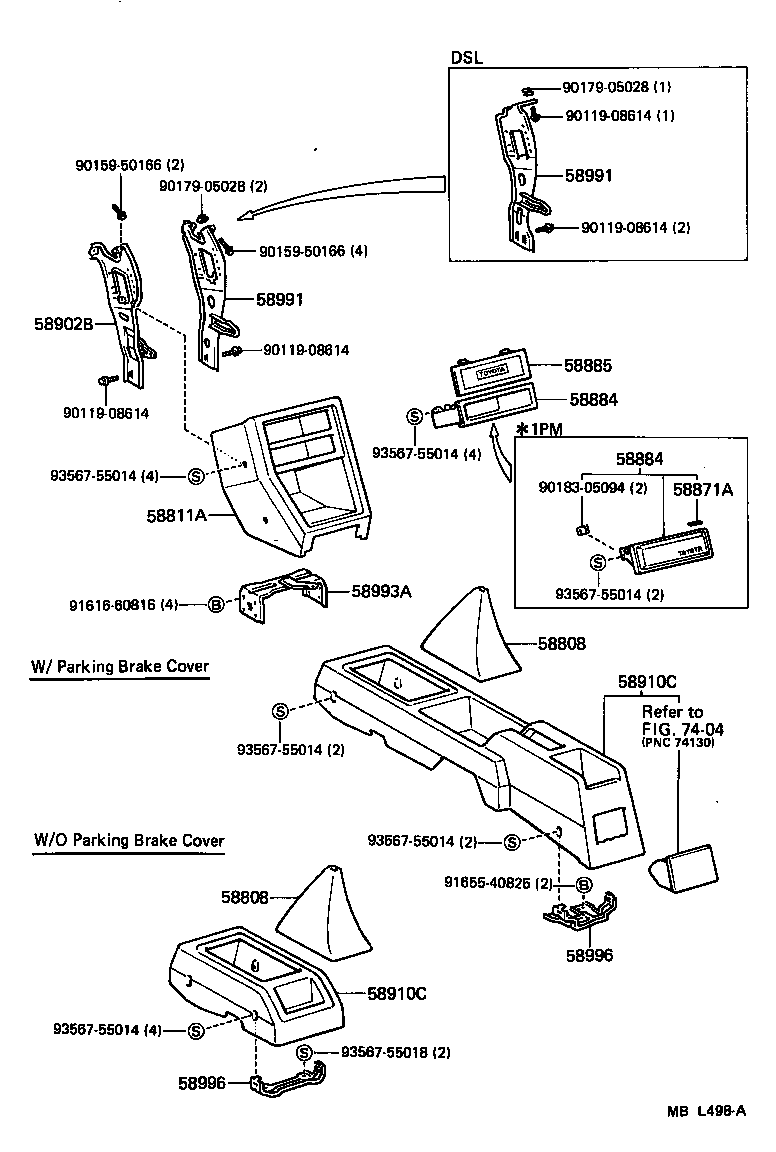

Click highlighted areas on diagram

diagram 58808 58808 58811A 58871A 58884 58884 58885 58902B 58910C 58910C 58991 58991 58993A 58996 58996 7404 9011908614 9011908614 9011908614 9011908614 9015950166 9015950166 9017905028 9017905028 9018305094 9161660816 9165540825 9356755014 9356755014 9356755014 9356755014 9356755014 9356755014 9356755018
Part # Description Qty Price
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-1007001

EP7#,NP70..MTM

BLACK,BLACK,TRIM1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-1007001

EP7#,NP70..MTM

BLACK,BLACK,TRIM1#

 1
58811A - BOX, CONSOLE, FRONT
58811-1014003

EP7#,NP70..LHD

W/CASSETTE,GRAY,GRAY,TRIM1#

 1
58811-1015006

EP7#,NP70..LHD

BROWN,BROWN,TRIM4#

 1
58811-1015003

EP7#,NP70..LHD

GRAY,GRAY,TRIM1#

 1
58811-1014006

EP7#,NP70..LHD

W/CASSETTE,BROWN,BROWN,TRIM4#

 1
58871A - CUSHION, CONSOLE BOX, NO.2
58872-24010

EP7#,NP70

*IPM,W/CASSETTE

 1
58884 - COVER, STEREO OPENING
55521-16010

EP7#,NP70

W/CASSETTE

 1
55521-20120

EP7#,NP70

*IPM,W/CASSETTE

 1
58884 - COVER, STEREO OPENING
55521-16010

EP7#,NP70

W/CASSETTE

 1
55521-20120

EP7#,NP70

*IPM,W/CASSETTE

 1
58885 - COVER, CONSOLE BOX OPENING
55522-20060

EP7#,NP70

 1
58902B - BRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1
58902-10070

EP7#,NP70..LHD

 1
58910C - BOX ASSY, CONSOLE, REAR
58911-1003003

EP7#,NP70

GRAY,GRAY,TRIM1#

 1
74130-1204023

EP7#,NP70

BROWN,GRAY,TRIM4#

 1
58911-1003006

EP7#,NP70

BROWN,BROWN,TRIM4#

 1
58910-1001003

EP7#,NP70..XL

W/PARKING BRAKE COVER,GRAY,GRAY,TRIM1#

 1
58910C - BOX ASSY, CONSOLE, REAR
58911-1003003

EP7#,NP70

GRAY,GRAY,TRIM1#

 1
74130-1204023

EP7#,NP70

BROWN,GRAY,TRIM4#

 1
58911-1003006

EP7#,NP70

BROWN,BROWN,TRIM4#

 1
58910-1001003

EP7#,NP70..XL

W/PARKING BRAKE COVER,GRAY,GRAY,TRIM1#

 1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58903-10040

EP7#,NP70..LHD

 1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58903-10040

EP7#,NP70..LHD

 1
58993A - BRACKET, CONSOLE BOX MOUNTING, LOWER
58993-10030

EP7#,NP70

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-10030

EP7#,NP70..XL

W/PARKING BRAKE COVER

 1
58995-10040

EP7#,NP70

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-10030

EP7#,NP70..XL

W/PARKING BRAKE COVER

 1
58995-10040

EP7#,NP70

 1
Common parts
90119-08614
90159-50166
90179-05028
90183-05094
91616-60816
91655-40825
93567-55014
93567-55018
Linked diagrams
7404
