NP70L-PHMDSW (1986)

Toyota Starlet

Production Dec 1986 - Dec 1989
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

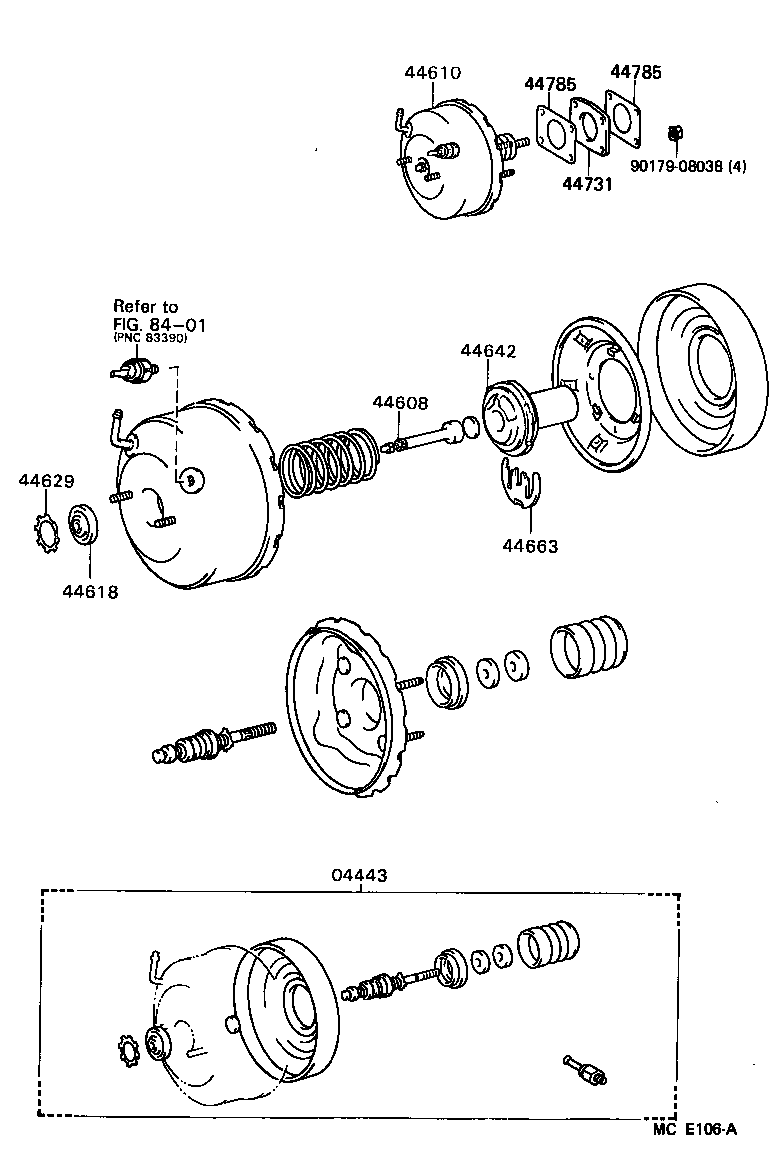

ILLUST NO. 1 OF 2(8612- )NP70

Click highlighted areas on diagram

diagram 04443 44608 44610 44618 44629 44642 44663 44731 44785 44785 8401 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-10160

NP70

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-12520

EP7#,NP70

 1
44610 - BOOSTER ASSY, BRAKE
44610-10140

NP70

 1
44618 - SEAL, BOOSTER BODY
44621-28120

EP7#,NP70

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

EP7#,NP70

 1
44642 - PISTON, BRAKE BOOSTER
44642-10060

EP7#,NP70

 1
44663 - KEY, VALVE STOPPER
44635-12480

EP7#,NP70

 1
44731 - BRACKET, BRAKE BOOSTER, FRONT
44731-10030

NP70

 1
44785 - GASKET, BRAKE BOOSTER
44785-14010

EP7#,NP70

 2
44785 - GASKET, BRAKE BOOSTER
44785-14010

EP7#,NP70

 2
Common parts
90179-08038
Linked diagrams
8401

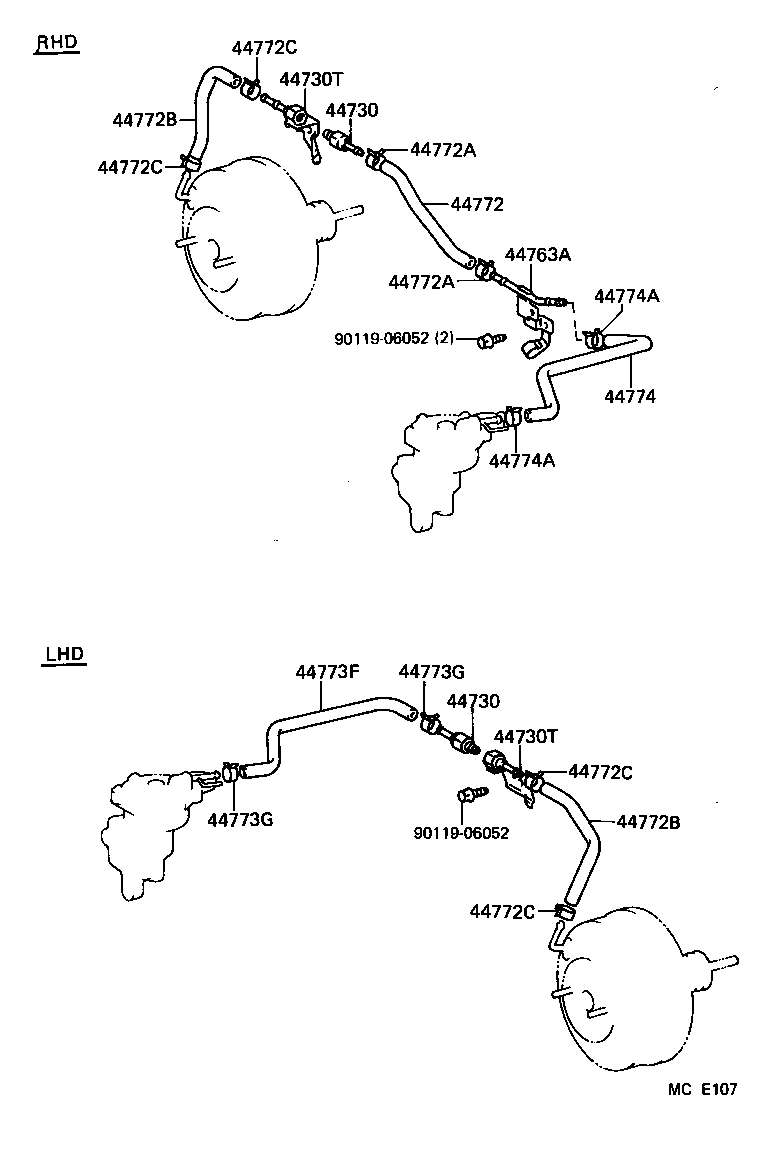

ILLUST NO. 2 OF 2(8612- )NP70

Click highlighted areas on diagram

diagram 44730 44730 44730T 44730T 44763A 44772 44772A 44772A 44772B 44772B 44772C 44772C 44772C 44772C 44773F 44773G 44773G 44774 44774A 44774A 9011906052 9011906052
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

NP70

 1
44730-60050

NP70

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

NP70

 1
44730-60050

NP70

 1
44730T - UNION(FOR VACUUM CHECK VALVE)
90404-52026

NP70..LHD

 1
44730T - UNION(FOR VACUUM CHECK VALVE)
90404-52026

NP70..LHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-10120

NP70..LHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-10120

NP70..LHD

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

EP7#,NP70

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

EP7#,NP70

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

EP7#,NP70

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

EP7#,NP70

 2
44773F - HOSE, UNION TO CHECK VALVE
44773-10160

NP70..LHD

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16002

NP70..LHD

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16002

NP70..LHD

 2
Common parts
90119-06052
