NP70L-PHMDSW (1986)

Toyota Starlet

Production Dec 1986 - Dec 1989
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8612- )NP70

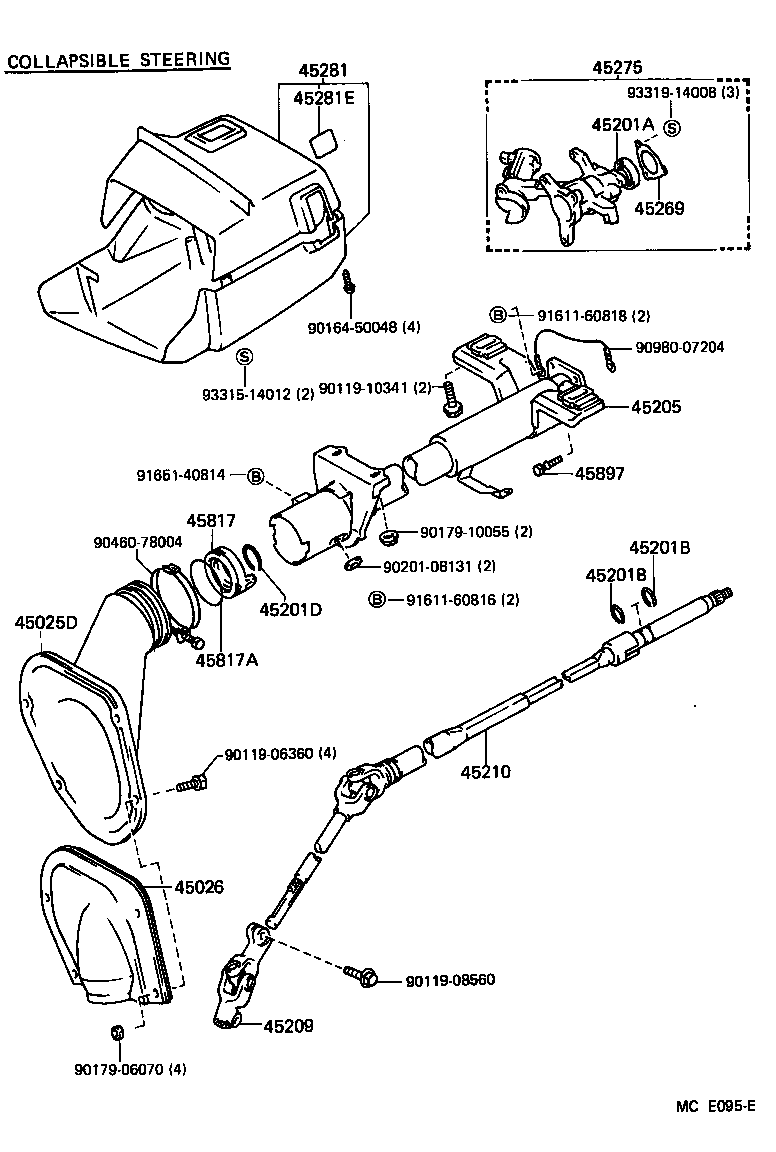

Click highlighted areas on diagram

diagram 45025D 45026 45201A 45201B 45201B 45201D 45205 45209 45210 45269 45275 45281 45281E 45817 45817A 45897 9011906360 9011908560 9011910341 9016450048 9017906070 9017910055 9020108131 9046078004 9098007204 9161160816 9161160818 9165140814 9331514012 9331914008
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-10040

EP7#,NP70..LHD

 1
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45025-10070

NP70..LHD

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

EP7#,NP70

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196

EP7#,NP70

T=1.35-1.45,T=1.4

 2
90520-17042

EP7#,NP70

T=1.20,T=1.2

 2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196

EP7#,NP70

T=1.35-1.45,T=1.4

 2
90520-17042

EP7#,NP70

T=1.20,T=1.2

 2
45201D - RING(FOR STEERING MAIN SHAFT)
96152-00300

EP7#,NP70

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-10130

EP7#,NP70..LHD

RIGID STEERING

 1
45870-10040

NP70..LHD

COLLAPSIBLE STEERING

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-10020

EP7#,NP70

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-10100

EP7#,NP70..LHD

RIGID STEERING

 1
45210-10130

NP70..LHD

COLLAPSIBLE STEERING

 1
45269 - RETAINER, MAIN SHAFT BEARING
45269-10010

EP7#,NP70

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-10051

EP7#,NP70..LHD

 1
45281 - HOUSING, STEERING COLUMN
45286-1091301

EP7#,NP70..LHD

BLACK,BLACK

 1
45817 - STOPPER, STEERING SHAFT THRUST
45808-20020

EP7#,NP70

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

EP7#,NP70

 1
Common parts
90119-06360
90119-08560
90119-10341
90164-50048
90179-06070
90179-10055
90201-08131
90460-78004
90980-07204
91611-60816
91611-60818
91651-40814
93315-14012
93319-14008
