NP70L-PHMDSW (1986)

Toyota Starlet

Production Dec 1986 - Dec 1989
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8612- )NP70

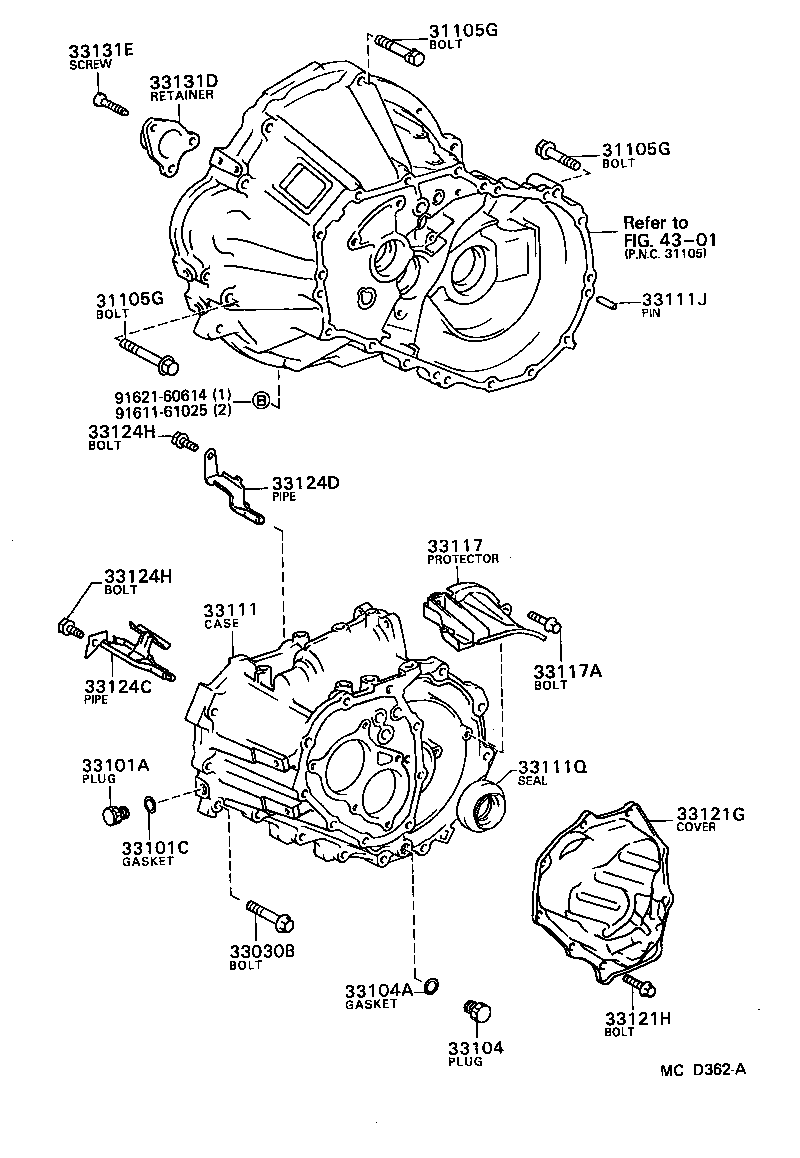

Click highlighted areas on diagram

diagram 31105G 31105G 31105G 33030B 33101A 33101C 33104 33104A 33111 33111J 33111Q 33117 33117A 33121G 33121H 33124C 33124D 33124H 33124H 33131D 33131E 4301 9161161025 9162160614
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

NP70

*10-1.25PX43-26,*10-1.25PX43-26

 1
90119-12168

NP70

*12-1.25PX55-30,*12-1.25PX55-30

 2
90119-12042

NP70

*12-1.25PX75-30,*12-1.25PX75-30

 1
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

NP70

*10-1.25PX43-26,*10-1.25PX43-26

 1
90119-12168

NP70

*12-1.25PX55-30,*12-1.25PX55-30

 2
90119-12042

NP70

*12-1.25PX75-30,*12-1.25PX75-30

 1
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

NP70

*10-1.25PX43-26,*10-1.25PX43-26

 1
90119-12168

NP70

*12-1.25PX55-30,*12-1.25PX55-30

 2
90119-12042

NP70

*12-1.25PX75-30,*12-1.25PX75-30

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08086

EP7#,NP70..MTM

*8-1.25PX45-27.5

 16
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

EP7#,NP70..MTM

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

EP7#,NP70..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

EP7#,NP70..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

EP7#,NP70..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33111-10070

EP7#,NP70..MTM

 1
33111-10071

EP7#,NP70..MTM

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

EP7#,NP70..MTM

L=23,OD=8

 4
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-34008

EP7#,NP70..MTM

 1
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-17010

EP7#,NP70..MTM

 1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
90105-08040

EP7#,NP70..MTM

 1
33121G - COVER, MANUAL TRANSMISSION CASE
33102-10020

EP7#,NP70..5F

 1
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90119-08494

EP7#,NP70..MTM

 9
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-10010

EP7#,NP70..MTM

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-10020

EP7#,NP70..MTM

 1
33131D - RETAINER, BEARING, FRONT
33131-12070

NP70

 1
33131E - SCREW(FOR BEARING RETAINER FRONT)
90149-60028

NP70

 3
Common parts
91611-61025
91621-60614
Linked diagrams
4301
