NP70L-PHMDSW (1986)
Toyota Starlet

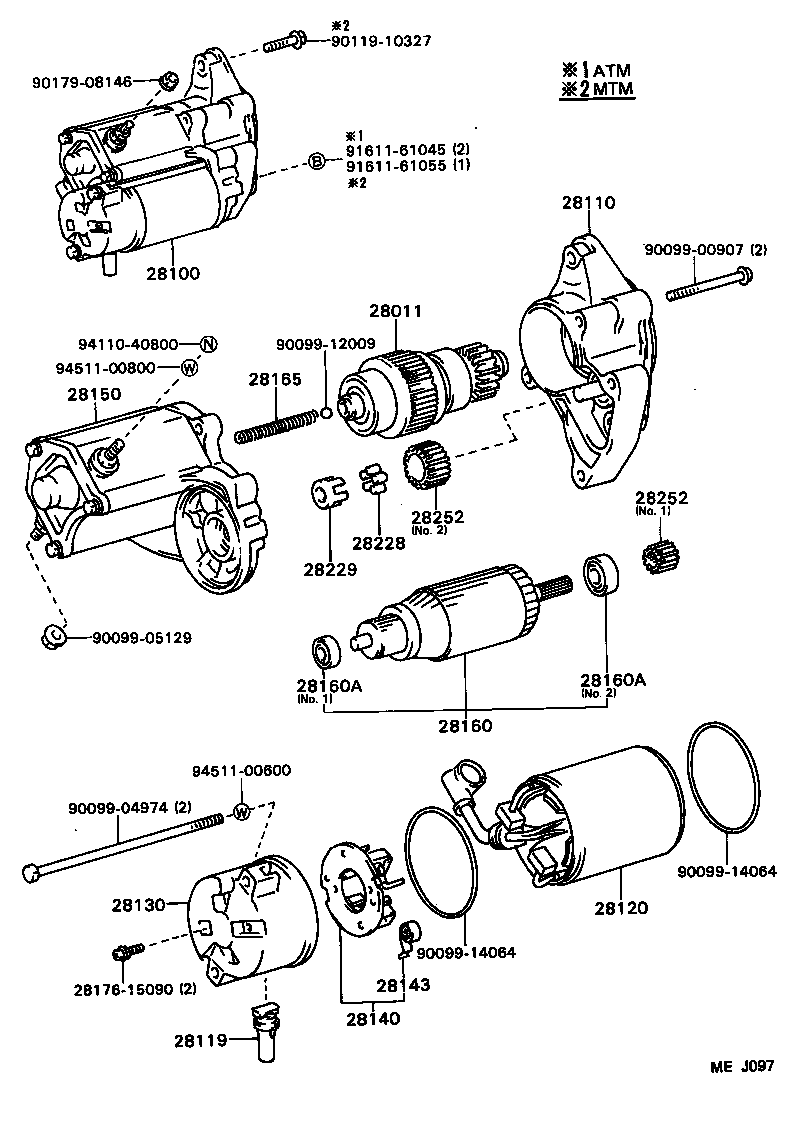

(8612- )1N
12V 1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-55010 |
1N..NP70 12V 1.4KW |
1 | ||
| 28011-55020 |
1N..NP70..LHD 12V 2.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-55010 |
1N..NP70 12V 1.4KW,12V 1.4KW |
1 | ||
| 28100-55020 |
1N..NP70..LHD 12V 2.0KW,12V 2.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-55010 |
1N..NP70 12V 1.4KW |
1 | ||
| 28115-55020 |
1N..NP70..LHD 12V 2.0KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-72020 |
1N..NP70 12V 1.4KW |
1 | ||
| 28119-77090 |
1N..NP70..LHD 12V 2.0KW |
1 | ||
| 28119-54070 |
1N..NP70..LHD 12V 2.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-64020 |
1N..NP70..LHD 12V 2.0KW |
1 | ||
| 28120-15090 |
1N..NP70 12V 1.4KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-55010 |
1N..NP70 12V 1.4KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-54070 |
1N..NP70..LHD 12V 2.0KW |
1 | ||
| 28140-15090 |
1N..NP70 12V 1.4KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
2EL#,1N..EP71,NP70 12V 1.0KW,1.4KW |
4 | ||
| 90099-17115 |
1N..NP70..LHD 12V 2.0KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-55010 |
1N..NP70 12V 1.4KW |
1 | ||
| 28150-55020 |
1N..NP70..LHD 12V 2.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54070 |
1N..NP70..LHD 12V 2.0KW |
1 | ||
| 28160-15090 |
1N..NP70 12V 1.4KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-54070 |
1N..NP70..LHD 12V 2.0KW,NO.1 |
1 | ||
| 90099-10143 |
1N..NP70 12V 1.4KW,NO.2 |
1 | ||
| 90099-10131 |
1N..NP70..LHD 12V 2.0KW,NO.2 |
1 | ||
| 90099-10144 |
1N..NP70 12V 1.4KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-54070 |
1N..NP70..LHD 12V 2.0KW,NO.1 |
1 | ||
| 90099-10143 |
1N..NP70 12V 1.4KW,NO.2 |
1 | ||
| 90099-10131 |
1N..NP70..LHD 12V 2.0KW,NO.2 |
1 | ||
| 90099-10144 |
1N..NP70 12V 1.4KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2EL#,1N..EP71,NP70 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2EL#,1N..EP71,NP70 12V 1.0KW,1.4KW,2.0KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
2EL#,1N..EP71,NP70 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28251-15090 |
1N..NP70 12V 1.4KW,NO.1 |
1 | ||
| 28254-54070 |
1N..NP70 12V 1.4KW,2.0KW,NO.1 |
1 | ||
| 28251-54070 |
1N..NP70..LHD 12V 2.0KW NO.1 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28251-15090 |
1N..NP70 12V 1.4KW,NO.1 |
1 | ||
| 28254-54070 |
1N..NP70 12V 1.4KW,2.0KW,NO.1 |
1 | ||
| 28251-54070 |
1N..NP70..LHD 12V 2.0KW NO.1 |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-14064 | ||||
| 90119-10327 | ||||
| 90179-08146 | ||||
| 91611-61045 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||

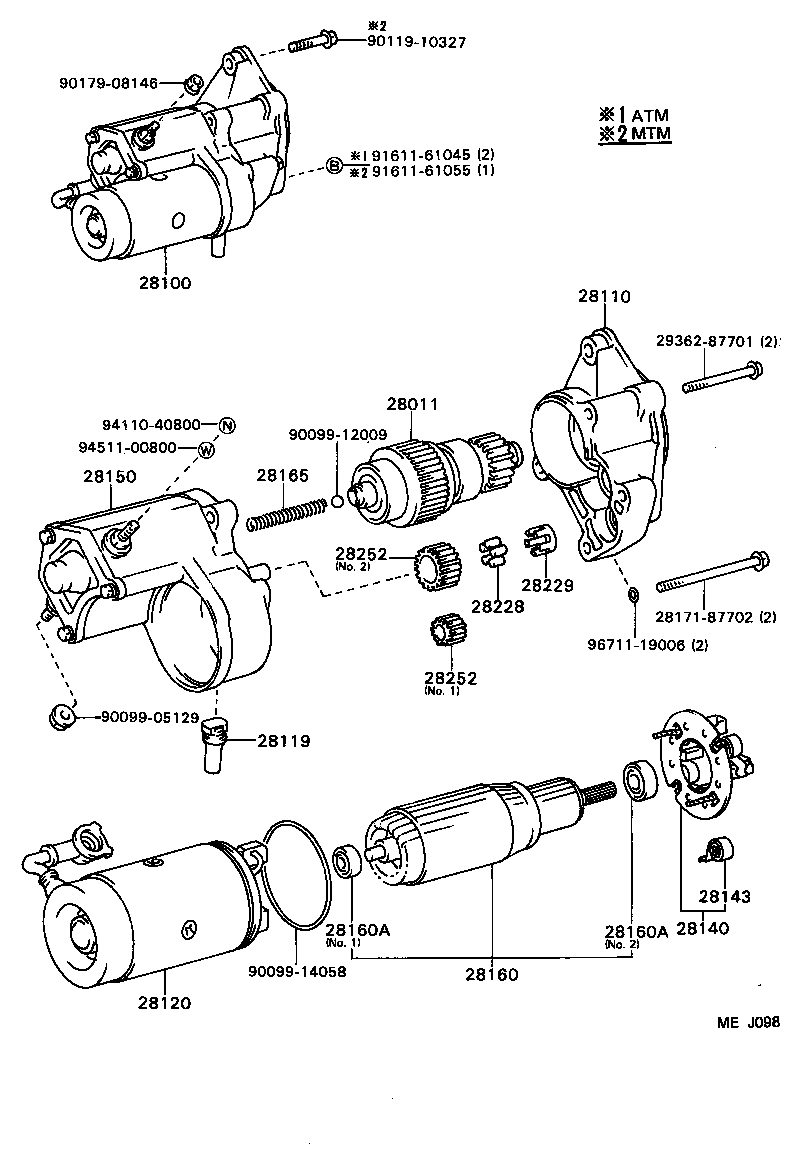

(8612- )1N
12V 2.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-55010 |
1N..NP70 12V 1.4KW |
1 | ||
| 28011-55020 |
1N..NP70..LHD 12V 2.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-55010 |
1N..NP70 12V 1.4KW,12V 1.4KW |
1 | ||
| 28100-55020 |
1N..NP70..LHD 12V 2.0KW,12V 2.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-55010 |
1N..NP70 12V 1.4KW |
1 | ||
| 28115-55020 |
1N..NP70..LHD 12V 2.0KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-72020 |
1N..NP70 12V 1.4KW |
1 | ||
| 28119-77090 |
1N..NP70..LHD 12V 2.0KW |
1 | ||
| 28119-54070 |
1N..NP70..LHD 12V 2.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-64020 |
1N..NP70..LHD 12V 2.0KW |
1 | ||
| 28120-15090 |
1N..NP70 12V 1.4KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-54070 |
1N..NP70..LHD 12V 2.0KW |
1 | ||
| 28140-15090 |
1N..NP70 12V 1.4KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
2EL#,1N..EP71,NP70 12V 1.0KW,1.4KW |
4 | ||
| 90099-17115 |
1N..NP70..LHD 12V 2.0KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-55010 |
1N..NP70 12V 1.4KW |
1 | ||
| 28150-55020 |
1N..NP70..LHD 12V 2.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54070 |
1N..NP70..LHD 12V 2.0KW |
1 | ||
| 28160-15090 |
1N..NP70 12V 1.4KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-54070 |
1N..NP70..LHD 12V 2.0KW,NO.1 |
1 | ||
| 90099-10143 |
1N..NP70 12V 1.4KW,NO.2 |
1 | ||
| 90099-10131 |
1N..NP70..LHD 12V 2.0KW,NO.2 |
1 | ||
| 90099-10144 |
1N..NP70 12V 1.4KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-54070 |
1N..NP70..LHD 12V 2.0KW,NO.1 |
1 | ||
| 90099-10143 |
1N..NP70 12V 1.4KW,NO.2 |
1 | ||
| 90099-10131 |
1N..NP70..LHD 12V 2.0KW,NO.2 |
1 | ||
| 90099-10144 |
1N..NP70 12V 1.4KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2EL#,1N..EP71,NP70 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2EL#,1N..EP71,NP70 12V 1.0KW,1.4KW,2.0KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
2EL#,1N..EP71,NP70 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28251-15090 |
1N..NP70 12V 1.4KW,NO.1 |
1 | ||
| 28254-54070 |
1N..NP70 12V 1.4KW,2.0KW,NO.1 |
1 | ||
| 28251-54070 |
1N..NP70..LHD 12V 2.0KW NO.1 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28251-15090 |
1N..NP70 12V 1.4KW,NO.1 |
1 | ||
| 28254-54070 |
1N..NP70 12V 1.4KW,2.0KW,NO.1 |
1 | ||
| 28251-54070 |
1N..NP70..LHD 12V 2.0KW NO.1 |
1 | ||
| Common parts | ||||
| 28171-87702 | ||||
| 29362-87701 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-14058 | ||||
| 90119-10327 | ||||
| 90179-08146 | ||||
| 91611-61045 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 96711-19006 | ||||
