NP70L-PHMDSW (1986)

Toyota Starlet

Production Dec 1986 - Dec 1989
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8612- )1N

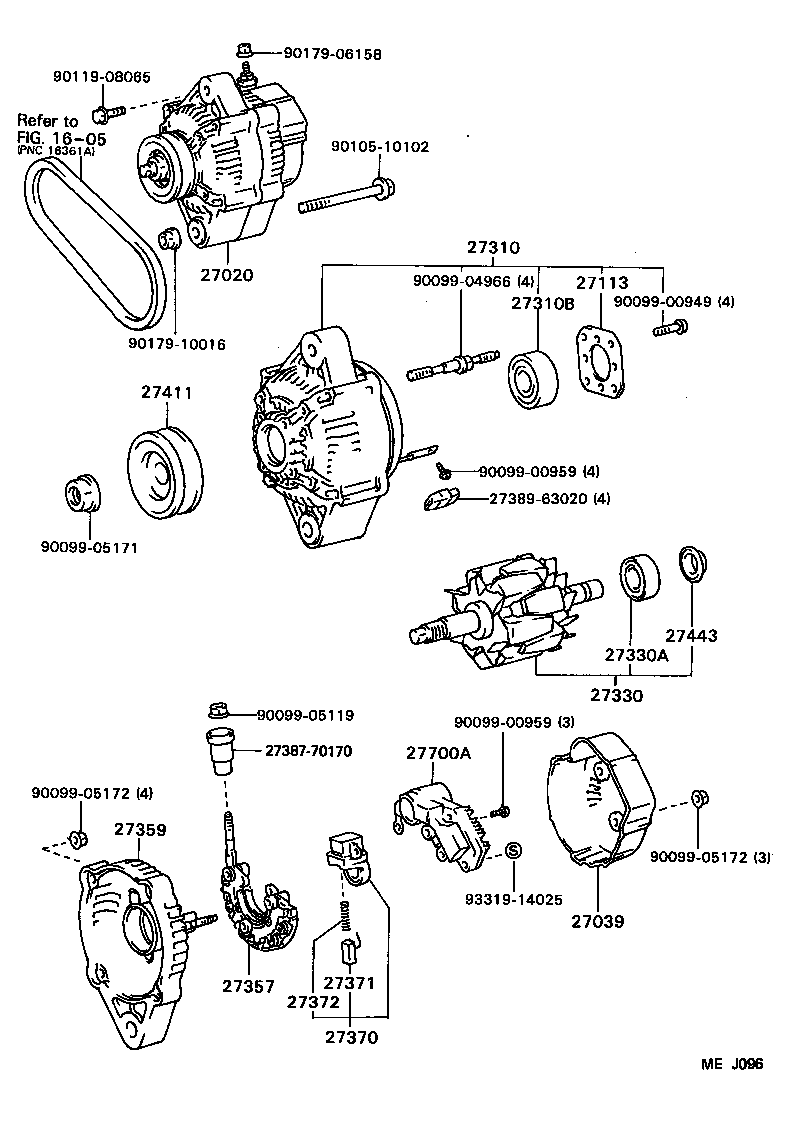

Click highlighted areas on diagram

12V 55A

diagram 1605 27020 27039 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27372 2738770170 2738963020 27411 27443 27700A 9009900949 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9010510102 9011908065 9017906158 9017910016 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-55020

1N..NP70

12V 55A,12V 55A

 1
27060-55030

1N..NP70..LHD

12V 55A,12V 55A,COLD SPEC

 1
27039 - COVER, ALTERNATOR REAR END
27039-72010

1N..NP70..LHD

12V 55A,COLD SPEC

 1
27039-72110

2ELC,1N..EP71,NP70..S,STD,XL

12V 55A

 1
27039-72110

1N..NP70

12V 55A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-72100

1N..NP70

12V 55A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-10021

1N..NP70

12V 55A

 1
27310-16011

1N..NP70..LHD

12V 55A,COLD SPEC

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10159

1N..NP70

12V 55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-10020

1N..NP70

12V 55A

 1
27330-10020

2ELC,1N..EP71,NP70..S,STD,XL

12V 55A

 1
27330-72100

1N..NP70..LHD

12V 55A,COLD SPEC

 1
27330-72101

1N..NP70..LHD

12V 55A,COLD SPEC

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

1N..NP70

12V 55A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63060

1N..NP70..LHD

12V 55A,COLD SPEC

 1
27357-63040

1N..NP70

12V 55A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16081

1N..NP70

12V 55A

 1
27359-16011

1N..NP70..LHD

12V 55A,COLD SPEC

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-63021

1N..NP70

12V 55A

 1
27371 - BRUSH, ALTERNATOR
27371-63020

1EL,2EL#,1N..EP7#,NP70

12V 40A,45A,55A

 2
27411 - PULLEY, ALTERNATOR
27411-55010

1N..NP70

12V 55A

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1EL,2EL#,1N..EP7#,NP70

12V 40A,45A,55A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-63021

1N..NP70

12V 55A

 1
Common parts
27387-70170
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90105-10102
90119-08065
90179-06158
90179-10016
93319-14025
Linked diagrams
1605
