NP70L-PHMDSW (1986)

Toyota Starlet

Production Dec 1986 - Dec 1989
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8612- )1N

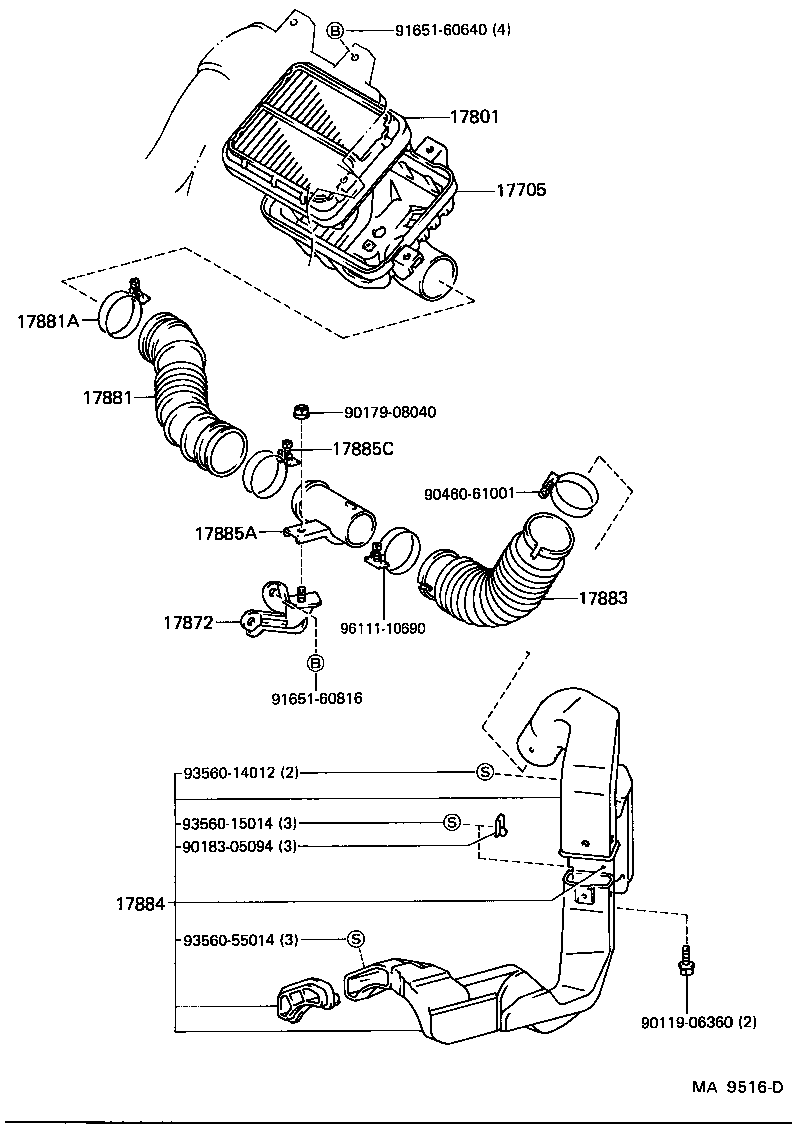

Click highlighted areas on diagram

diagram 17705 17801 17872 17881 17881A 17883 17884 17885A 17885C 9011906360 9017908040 9018305094 9046061001 9165160640 9165160816 9356014012 9356015014 9356055014 9611110690
Part # Description Qty Price
17705 - CAP SUB-ASSY, AIR CLEANER
17705-55020

1N..NP70

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74010

1N..NP70

 1
17872 - BRACKET, INTAKE AIR CONNECTOR
17872-55011

1N..NP70

 1
17872-55010

1N..NP70

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-55040

1N..NP70

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10730

1N..NP70

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-10010

1N..NP70

 1
17884 - HOSE, AIR CLEANER, NO.4
17880-10010

1N..NP70

 1
17885A - HOSE, AIR CLEANER, NO.5
17883-10010

1N..NP70

NO.2

 1
17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5)
96111-10670

1N..NP70

 1
Common parts
90119-06360
90179-08040
90183-05094
90460-61001
91651-60640
91651-60816
93560-14012
93560-15014
93560-55014
96111-10690
