NP70L-PHMDSW (1986)

Toyota Starlet

Production Dec 1986 - Dec 1989
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8612- )1N

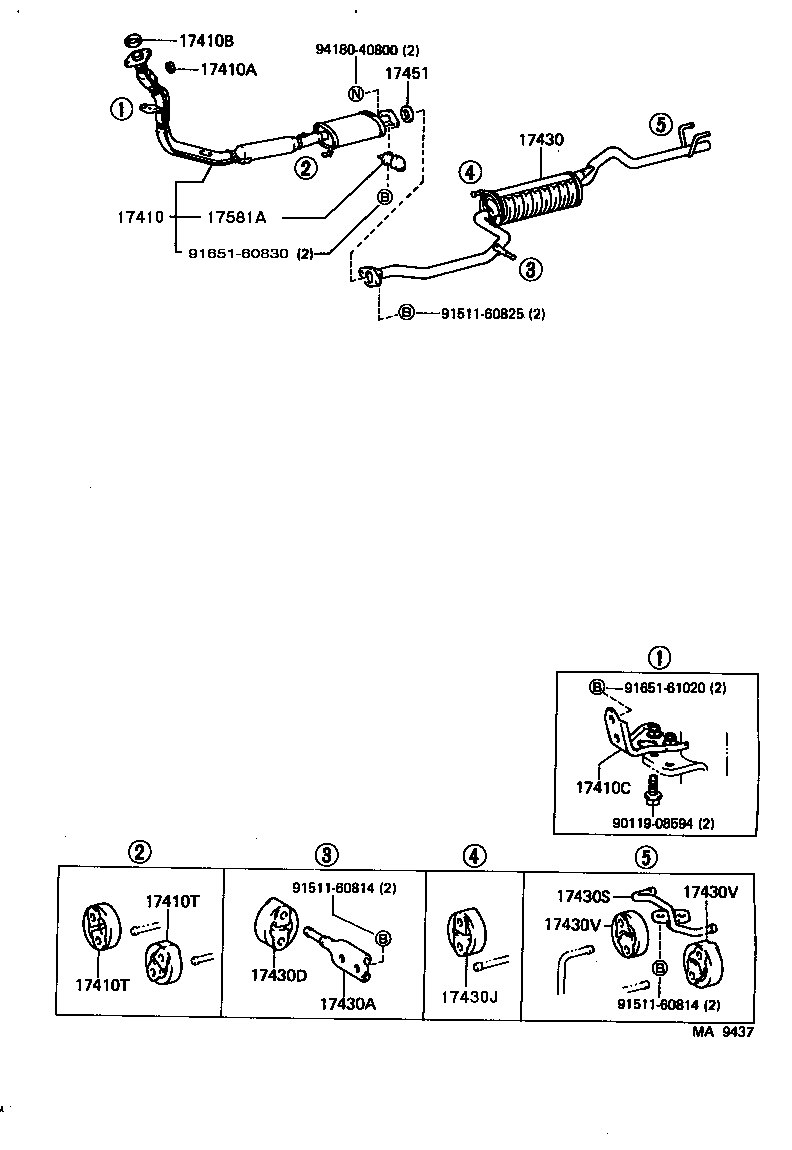

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410T 17410T 17430 17430A 17430D 17430J 17430S 17430V 17430V 17451 17581A 9011908594 9151160814 9151160814 9151160825 9165160830 9165161020 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-55020

1N..NP70

 1
17410-55040

1N..NP70

 1
17410-55021

1N..NP70

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1EL,2EL#,1N..EP7#,NP70

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

2EL,1N..EP71,NP70..EUG

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-55010

1N..NP70

 1
17410T - BOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)
17565-11010

1N..NP70

 2
17410T - BOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)
17565-11010

1N..NP70

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-55020

1N..NP70

 1
17430-55021

1N..NP70

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17572-11020

1EL,2EL#,1N..EP7#,NP70

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-11010

1EL,2EL#,1N..EP7#,NP70

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-11030

1EL,2EL#,1N..EP7#,NP70

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17509-11010

1N..NP70

 1
17509-55010

1N..NP70

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63120

1N..NP70

 2
17505-55010

1N..NP70

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-63120

1N..NP70

 2
17505-55010

1N..NP70

 2
17451 - GASKET, EXHAUST PIPE
90917-06004

1N..NP70

 1
Common parts
90119-08594
91511-60814
91511-60825
91651-60830
91651-61020
94180-40800
