NP70L-PHMDSW (1986)

Toyota Starlet

Production Dec 1986 - Dec 1989
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8612- )1N

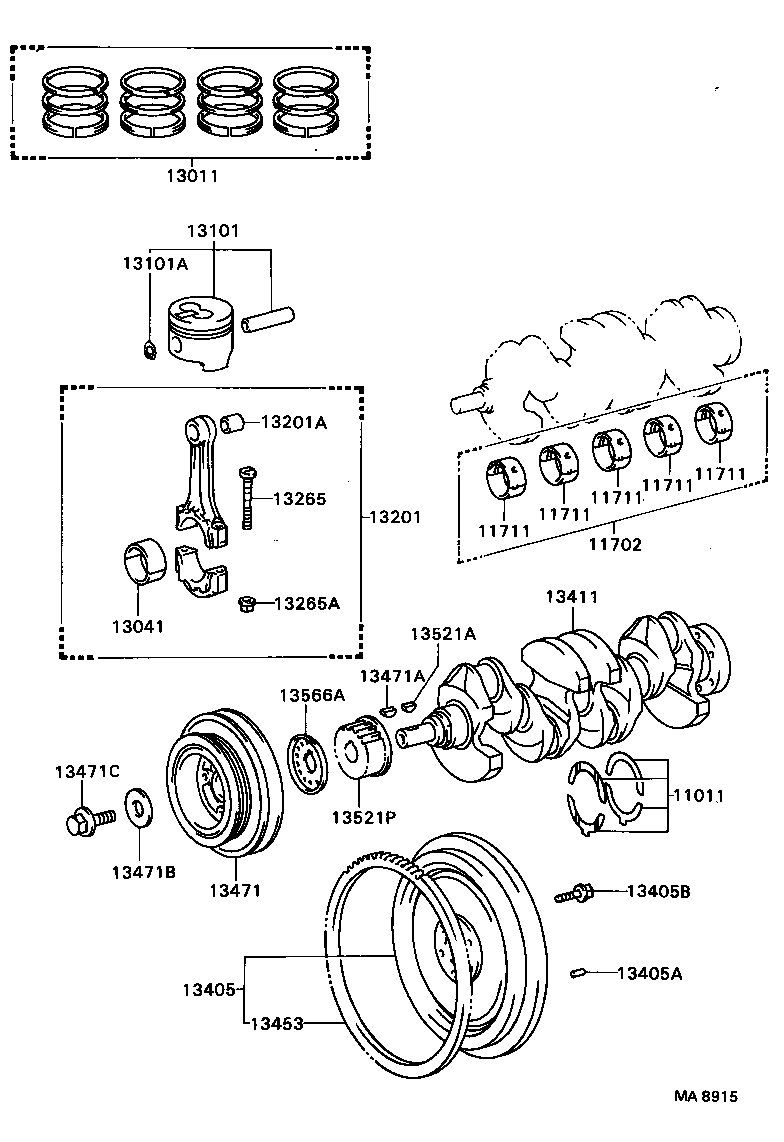

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13101 13101A 13201 13201A 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471A 13471B 13471C 13521A 13521P 13566A
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-22011

1N..NP70

STD,STD

 1
11012-22011

1N..NP70

O/S 0.125,O/S 0.125

 1
11013-22011

1N..NP70

O/S 0.250,O/S 0.25

 1
11702 - BEARING SET, CRANKSHAFT
11704-55020

1N..NP70

U/S 0.25,U/S 0.25

 1
11705-55010

1N..NP70

U/S 0.50,U/S 0.50

 1
11704-55010

1N..NP70

U/S 0.25,U/S 0.25

 1
11705-55020

1N..NP70

U/S 0.50,U/S 0.50

 1
11711 - BEARING, CRANKSHAFT
11701-5501002

1N..NP70

MARK"2",MARK 2

 5
11701-5502002

1N..NP70

MARK"2",MARK 2

 5
11701-5502001

1N..NP70

MARK"1",MARK 1

 5
11701-5501003

1N..NP70

MARK"3",MARK 3

 5
11701-5502003

1N..NP70

MARK"3",MARK 3

 5
11701-5501001

1N..NP70

MARK"1",MARK 1

 5
11711 - BEARING, CRANKSHAFT
11701-5501002

1N..NP70

MARK"2",MARK 2

 5
11701-5502002

1N..NP70

MARK"2",MARK 2

 5
11701-5502001

1N..NP70

MARK"1",MARK 1

 5
11701-5501003

1N..NP70

MARK"3",MARK 3

 5
11701-5502003

1N..NP70

MARK"3",MARK 3

 5
11701-5501001

1N..NP70

MARK"1",MARK 1

 5
11711 - BEARING, CRANKSHAFT
11701-5501002

1N..NP70

MARK"2",MARK 2

 5
11701-5502002

1N..NP70

MARK"2",MARK 2

 5
11701-5502001

1N..NP70

MARK"1",MARK 1

 5
11701-5501003

1N..NP70

MARK"3",MARK 3

 5
11701-5502003

1N..NP70

MARK"3",MARK 3

 5
11701-5501001

1N..NP70

MARK"1",MARK 1

 5
11711 - BEARING, CRANKSHAFT
11701-5501002

1N..NP70

MARK"2",MARK 2

 5
11701-5502002

1N..NP70

MARK"2",MARK 2

 5
11701-5502001

1N..NP70

MARK"1",MARK 1

 5
11701-5501003

1N..NP70

MARK"3",MARK 3

 5
11701-5502003

1N..NP70

MARK"3",MARK 3

 5
11701-5501001

1N..NP70

MARK"1",MARK 1

 5
11711 - BEARING, CRANKSHAFT
11701-5501002

1N..NP70

MARK"2",MARK 2

 5
11701-5502002

1N..NP70

MARK"2",MARK 2

 5
11701-5502001

1N..NP70

MARK"1",MARK 1

 5
11701-5501003

1N..NP70

MARK"3",MARK 3

 5
11701-5502003

1N..NP70

MARK"3",MARK 3

 5
11701-5501001

1N..NP70

MARK"1",MARK 1

 5
13011 - RING SET, PISTON
13013-55010

1N..NP70

O/S 0.50,O/S 0.50

 1
13011-55010

1N..NP70

STD,STD

 1
13041 - BEARING, CONNECTING ROD
13041-5502001

1N..NP70

MARK"1",MARK 1

 4
13041-5502002

1N..NP70

MARK"2",MARK 2

 4
13041-5501002

1N..NP70

MARK"2",MARK 2

 4
13041-5501001

1N..NP70

MARK"1",MARK 1

 4
13041-5502003

1N..NP70

MARK"3",MARK 3

 4
13041-5501003

1N..NP70

MARK"3",MARK 3

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-55020

1N..NP70

STD,STD

 4
13101-5502003

1N..NP70

STD,STD,MARK"3",MARK3

 4
13101-5502002

1N..NP70

STD,STD,MARK"2",MARK2

 4
13103-55020

1N..NP70

O/S 0.50,O/S 0.50

 4
13101-5502001

1N..NP70

STD,STD,MARK"1",MARK1

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-25003

1N..NP70

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-59075

1N..NP70

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73109

1N..NP70

 4
13265 - BOLT, CONNECTING ROD
13265-55011

1N..NP70

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90179-08118

1N..NP70

 8
13405 - FLYWHEEL SUB-ASSY
13405-55010

1N..NP70

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08120

1N..NP70

L=18,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90105-10071

1N..NP70

 6
13411 - CRANKSHAFT
13411-55900

1N..NP70

 1
13453 - GEAR, FLYWHEEL RING
13453-55010

1N..NP70

 1
13471 - PULLEY, CRANKSHAFT
13408-55010

1N..NP70

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
95161-10519

1N..NP70

 1
13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
90201-13019

1N..NP70

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-12060

1N..NP70

 1
13521P - PULLEY, CRANKSHAFT TIMING
13521-55010

1N..NP70

 1
13566A - GUIDE, TIMING BELT
13566-55010

1N..NP70

 1
