NP70L-PHMDSW (1986)

Toyota Starlet

Production Dec 1986 - Dec 1989
Engine 1N
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8612- )1N

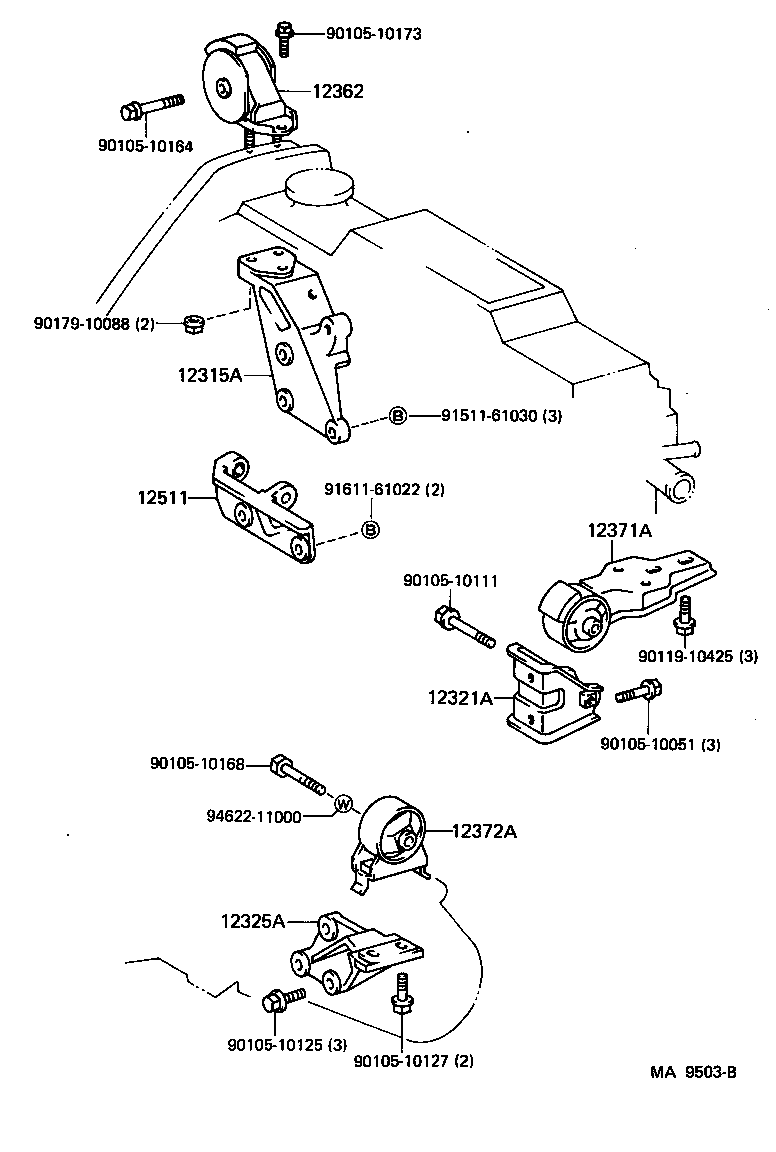

Click highlighted areas on diagram

diagram 12315A 12321A 12325A 12362 12371A 12372A 12511 9010510051 9010510111 9010510125 9010510127 9010510164 9010510168 9010510173 9011910425 9017910088 9151161030 9161161022 9462211000
Part # Description Qty Price
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-55020

1N..NP70

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-55010

1N..NP70

 1
12321-55030

1N..NP70

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-55010

1N..NP70

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-55020

1N..NP70

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-55030

1N..NP70

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-55030

1N..NP70

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-55010

1N..NP70

 1
Common parts
90105-10051
90105-10111
90105-10125
90105-10127
90105-10164
90105-10168
90105-10173
90119-10425
90179-10088
91511-61030
91611-61022
94622-11000
