KP62R-PHMRS (1978)

Toyota Starlet

Production Oct 1978 - May 1980
Engine 3KH
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8005)

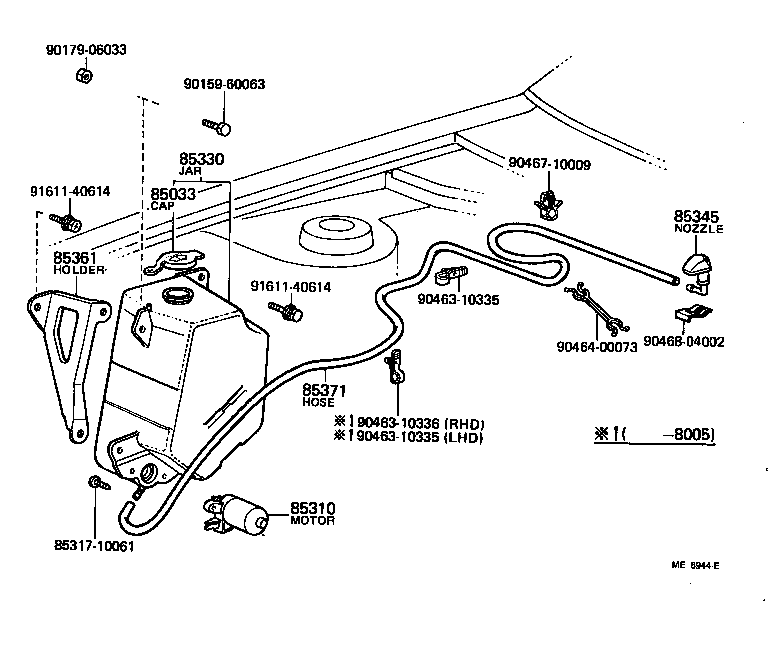

Click highlighted areas on diagram

diagram 85033 85310 8531710061 85330 85345 85361 85371 9015960063 9017906033 9046310335 9046310335 9046310336 9046400073 9046710009 9046804002 9161140614 9161140614
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-10070

KP6#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-60010

KP6#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-10080

KP6#

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-10080

KP6#

 1
85361 - HOLDER, WINDSHIELD WASHER
85361-10060

KP6#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06007

KP6#

 1
Common parts
85317-10061
90159-60063
90179-06033
90463-10335
90463-10336
90464-00073
90467-10009
90468-04002
91611-40614
