KP62L-PHMRS (1978)
Toyota Starlet
(7802-8208)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1 | ||||
| 55330-10020 |
KP6#..LHD |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-1011005 |
KP6#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55311-1011004 |
KP6#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55301-1036006 |
KP6#..SED..LHD ALMINISH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55301-1036001 |
KP6#..SED..LHD ALMINISH,BLACK,BLACK,TRIM2# |
1 | ||
| 55311-1011006 |
KP6#..LHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55301-1036004 |
KP6#..SED..LHD ALMINISH,BLUE,BLUE,TRIM8# |
1 | ||
| 55311-1011001 |
KP6#..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55311-1011004 |
KP6#..SED..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-10040 |
KP6#..LHD |
1 | ||
| 55309A - COVER, BASE SWITCH HOLE, NO.1 | ||||
| 55384-2001101 |
KP6# BLACK,BLACK,TRIM2# |
1 | ||
| 55322 - BRACKET, INSTRUMENT PANEL, NO.1 | ||||
| 55321-10060 |
KP6#..LHD |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-10020 |
KP6#..LHD |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55411-1011005 |
KP6#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55411-1011001 |
KP6#..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55411-1011004 |
KP6#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55411-1011104 |
KP6#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55411-1011106 |
KP6#..LHD L-BROWN,BROWN,TRIM4# |
1 | ||
| 55411-1011104 |
KP6#..SED..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55411-1011101 |
KP6#..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55411-1011105 |
KP6#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55401B - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-10010 |
KP6# UPR,L=6 |
3 | ||
| 55419-10020 |
KP6# LWR,L=30 |
2 | ||
| 55401B - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-10010 |
KP6# UPR,L=6 |
3 | ||
| 55419-10020 |
KP6# LWR,L=30 |
2 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1015004 |
KP6#..SED..LHD..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1015001 |
KP6#..SED..LHD..GEN BLACK,BLACK,TRIM2# |
1 | ||
| 55401-1015005 |
KP6#..SED..LHD..GEN BEIGE,BEIGE,TRIM4# |
1 | ||
| 55401-1015105 |
KP6#..SED..LHD..GEN BEIGE,BEIGE,TRIM4# |
1 | ||
| 55401-1015104 |
KP60,62..SED..LHD..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1015101 |
KP60,62..SED..LHD..GEN BLACK,BLACK,TRIM2# |
1 | ||
| 55401-1015106 |
KP60,62..SED..LHD..GEN L-BROWN,BROWN,TRIM4# |
1 | ||
| 55412 - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-1003004 |
KP6#..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55414-1003005 |
KP6#..LHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55414-1003004 |
KP6#..SED..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55414-1003001 |
KP6#..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55414-1003006 |
KP6#..LHD L-BROWN,BROWN,TRIM4# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-10020 |
KP6# |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-1002004 |
KP6#..SED BLUE,BLUE,TRIM8# |
1 | ||
| 55522-1002001 |
KP6# BLACK,BLACK,TRIM2# |
1 | ||
| 55522-1002104 |
KP6#..SED BLUE,BLUE,TRIM8# |
1 | ||
| 55522-1002101 |
KP6# BLACK,BLACK,TRIM2# |
1 | ||
| 55522-1002005 |
KP6# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55522-1002106 |
KP6# L-BROWN,BROWN,TRIM4# |
1 | ||
| 55461 - COVER, HEATER CONTROL HOLE | ||||
| 55523-1002004 |
KP6#..LHD..GEN W/O HEATER,BLUE,BLUE,TRIM8# |
1 | ||
| 55523-1002001 |
KP60,62..LHD..GEN W/O HEATER,BLACK,BLACK,TRIM2# |
1 | ||
| 55523-1002005 |
KP6#..LHD..GEN W/O HEATER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55523-1002006 |
KP60,62..LHD..GEN W/O HEATER,L-BROWN,BROWN,TRIM4# |
1 | ||
| 55523-1004001 |
KP60,62..SED..LHD..GEN ALMINISH,W/O HEATER,BLACK,BLACK,TRIM2# |
1 | ||
| 55523-1004004 |
KP60,62..SED..LHD..GEN ALMINISH,W/O HEATER,BLUE,BLUE,TRIM8# |
1 | ||
| 55523-1002004 |
KP60,62..SED..LHD..GEN W/O HEATER,BLUE,BLUE,TRIM8# |
1 | ||
| 55523-1004006 |
KP60,62..SED..LHD..GEN ALMINISH,W/O HEATER,L-BROWN,BROWN,TRIM4# |
1 | ||
| 55476 - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55477-10010 |
KP6# |
1 | ||
| 55502 - DOOR SUB-ASSY, GLOVE COMPARTMENT, OUTER | ||||
| 55551-1001005 |
KP6# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55551-1001004 |
KP6# BLUE,BLUE,TRIM8# |
1 | ||
| 55502-1001104 |
KP6#..SED ALMINISH,BLUE,BLUE,TRIM8# |
1 | ||
| 55502-1001106 |
KP6#..SED ALMINISH,L-BROWN,BROWN,TRIM4# |
1 | ||
| 55502-1001101 |
KP6#..SED ALMINISH,BLACK,BLACK,TRIM2# |
1 | ||
| 55551-1001004 |
KP6#..SED BLUE,BLUE,TRIM8# |
1 | ||
| 55551-1001001 |
KP6# BLACK,BLACK,TRIM2# |
1 | ||
| 55551-1001006 |
KP6# L-BROWN,BROWN,TRIM4# |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-12020 |
KP6# |
1 | ||
| 55508 - STRIKER SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-10010 |
KP6# |
1 | ||
| 55512 - PLATE, RADIO TUNER FINISH | ||||
| 55513-1008001 |
KP6#..LHD W/RADIO,W/O CLOCK,L=130,BLACK,BLACK,TRIM2# |
1 | ||
| 55513-1007005 |
KP6#..LHD W/RADIO,CLOCK,L=124,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55513-1008005 |
KP6#..LHD W/RADIO,W/O CLOCK,L=130,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55513-1007004 |
KP6#..LHD W/RADIO,CLOCK,L=124,BLUE,BLUE,TRIM8# |
1 | ||
| 55513-1007001 |
KP6#..LHD W/RADIO,CLOCK,L=124,BLACK,BLACK,TRIM2# |
1 | ||
| 55405-1008001 |
KP6#..SED..LHD ALMINISH,BLACK,BLACK,TRIM2# |
1 | ||
| 55405-1008006 |
KP6#..SED..LHD ALMINISH,L-BROWN,BROWN,TRIM4# |
1 | ||
| 55405-1007006 |
KP6#..SED..LHD ALMINISH,W/CLOCK,L-BROWN,BROWN,TRIM4# |
1 | ||
| 55513-1012001 |
KP6#..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 55405-1007004 |
KP6#..SED..LHD ALMINISH,W/CLOCK,BLUE,BLUE,TRIM8# |
1 | ||
| 55405-1008004 |
KP6#..SED..LHD ALMINISH,BLUE,BLUE,TRIM8# |
1 | ||
| 55405-1007001 |
KP6#..SED..LHD ALMINISH,W/CLOCK,BLACK,BLACK,TRIM2# |
1 | ||
| 55513-1012006 |
KP6#..LHD L-BROWN,BROWN,TRIM4# |
1 | ||
| 55513-1013004 |
KP6#..SED..LHD W/CLOCK,BLUE,BLUE,TRIM8# |
1 | ||
| 55513-1008004 |
KP6#..LHD W/RADIO,W/O CLOCK,L=130,BLUE,BLUE,TRIM8# |
1 | ||
| 55513-1013006 |
KP6#..LHD W/CLOCK,L-BROWN,BROWN,TRIM4# |
1 | ||
| 55513-1013001 |
KP6#..LHD W/CLOCK,BLACK,BLACK,TRIM2# |
1 | ||
| 55513-1012004 |
KP6#..SED..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 55514 - DOOR, GLOVE COMPARTMENT, INNER | ||||
| 55552-10010 |
KP6# |
1 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-14010 |
KP6# |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-10010 |
KP6# |
1 | ||
| 55537 - COVER, REAR WINDOW DEFOGGER SWITCH HOLE | ||||
| 55537-22010 |
KP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-10020 |
KP6# |
1 | ||
| 55579 - COVER, SIDE DEFROSTER OPENING, LH | ||||
| 55579-1001004 |
KP60,62..SED..LHD..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 55579-1001005 |
KP6#..SED..LHD..GEN BEIGE,BEIGE,TRIM4# |
1 | ||
| 55579-1001006 |
KP60,62..SED..LHD..GEN L-BROWN,BROWN,TRIM4# |
1 | ||
| 55579-1001001 |
KP60,62..SED..LHD..GEN BLACK,BLACK,TRIM2# |
1 | ||
| 55584 - HOLDER, MAP | ||||
| 55584-10030 |
KP6# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-10010 |
KP6# |
2 | ||
| 55653 - REGISTER, INSTRUMENT PANEL, NO.3 | ||||
| 55063-12010 |
KP6# |
2 | ||
| 55653 - REGISTER, INSTRUMENT PANEL, NO.3 | ||||
| 55063-12010 |
KP6# |
2 | ||
| 55681 - SUPPORT, INSTRUMENT PANEL REGISTER, NO.1 | ||||
| 55682-10010 |
KP60,62..SED..GEN |
1 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 58914-22010 |
KP6# |
1 | ||
| 55686-10020 |
KP6# |
1 | ||
| Common parts | ||||
| 55682-10010 | ||||
| 90159-50029 | ||||
| 90159-60066 | ||||
| 90159-60070 | ||||
| 90161-26007 | ||||
| 90179-05095 | ||||
| 90183-05003 | ||||
| 90183-05094 | ||||
| 90468-08008 | ||||
| 90506-10015 | ||||
| 90541-03007 | ||||
| 91651-40614 | ||||
| 91651-40625 | ||||
| 91656-40616 | ||||
| 93229-54008 | ||||
| 93269-16016 | ||||
| 93530-15012 | ||||
| 93530-55012 | ||||
| 93540-15014 | ||||
| 93540-55014 | ||||
| 93540-55016 | ||||
| 93560-15012 | ||||
| 93560-54014 | ||||
| 93566-15512 | ||||
| 93566-55512 | ||||
| 93566-55516 | ||||

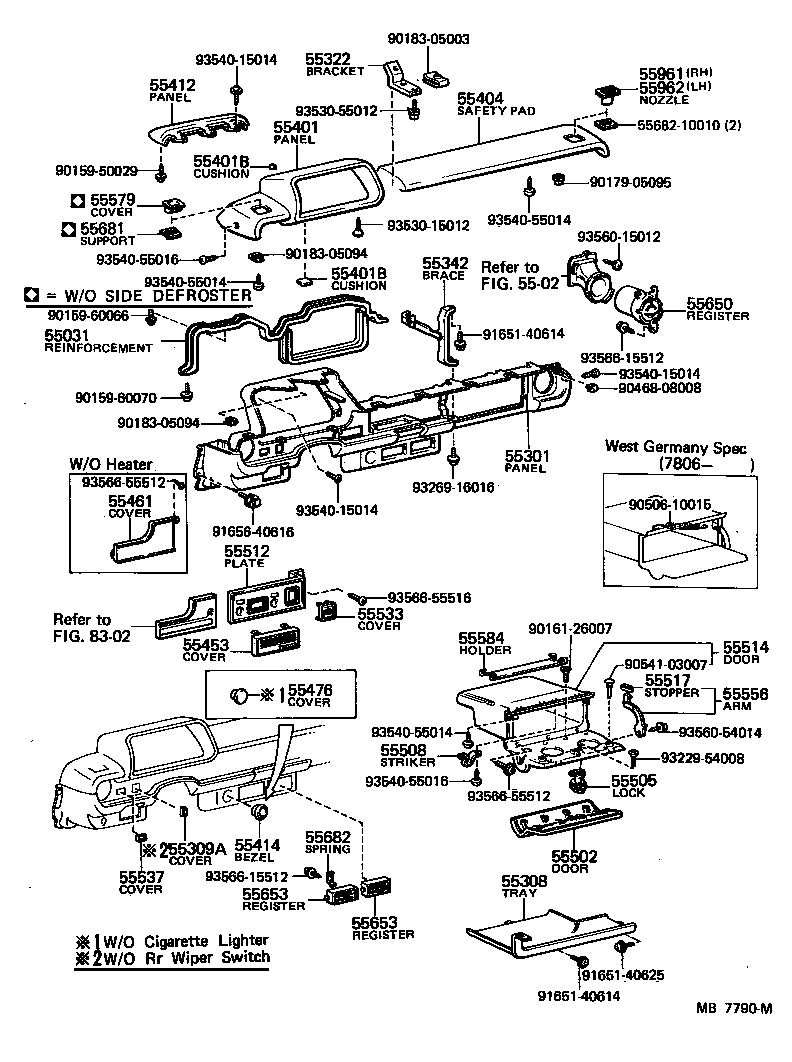

| Linked diagrams | ||||
| 5502 | ||||
| 8302 | ||||
