KP62L-PHKRS (1978)
Toyota Starlet

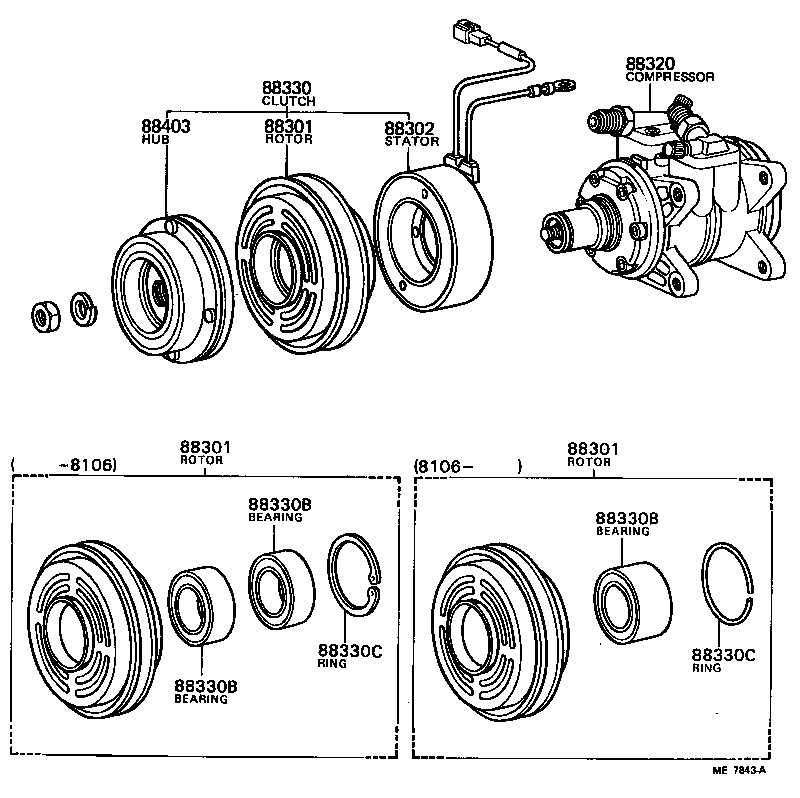

(7810- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-20060 |
KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88412-12040 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88412-14020 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-20060 |
KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88412-12040 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88412-14020 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-20060 |
KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88412-12040 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88412-14020 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14020 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88411-14050 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88411-22040 |
KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-10030 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88320-12180 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-20130 |
KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88410-12080 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88410-14100 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 90099-10117 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 90099-10117 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 90099-10117 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
2 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07114 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 90099-07094 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07114 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 90099-07094 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-26030 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88403-22030 |
KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88403-14030 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||

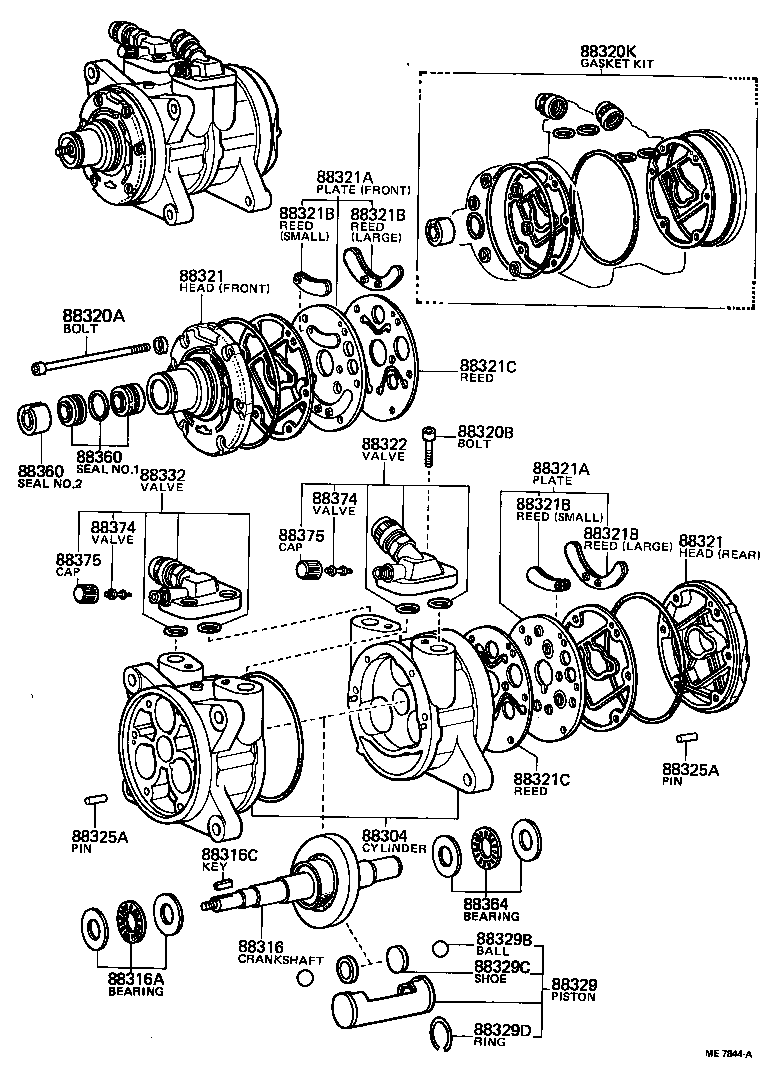

(7810- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-12010 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-12060 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88316-12061 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG OIL DRAIN TYPE |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 90099-10123 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13011 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 90099-13019 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG OIL DRAIN TYPE |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04923 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
6 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04924 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
4 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-16010 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 04881-35010 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 04881-12020 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG OIL DRAIN TYPE |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-12010 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG RR |
1 | ||
| 88321-12030 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG FR |
1 | ||
| 88321-12031 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG FR OIL DRAIN TYPE |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-12010 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG RR |
1 | ||
| 88321-12030 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG FR |
1 | ||
| 88321-12031 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG FR OIL DRAIN TYPE |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-12040 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG FR |
1 | ||
| 88306-12010 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-12040 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG FR |
1 | ||
| 88306-12010 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG RR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12030 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG LARGE |
2 | ||
| 88307-12040 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG SMALL |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12030 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG LARGE |
2 | ||
| 88307-12040 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG SMALL |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12030 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG LARGE |
2 | ||
| 88307-12040 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG SMALL |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12030 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG LARGE |
2 | ||
| 88307-12040 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG SMALL |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-12010 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-12010 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-12200 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88371-10010 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
4 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-12040 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
3 | ||
| 88329B - BALL, PISTON | ||||
| 90099-12010 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
6 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-12060 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
6 | ||
| 88329D - RING, PISTON | ||||
| 88317-12010 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
6 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-10010 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88372-16010 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 90099-15031 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG NO.2 |
1 | ||
| 88360-12070 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG NO.1 |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 90099-15031 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG NO.2 |
1 | ||
| 88360-12070 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG NO.1 |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 90099-10123 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
2 | ||

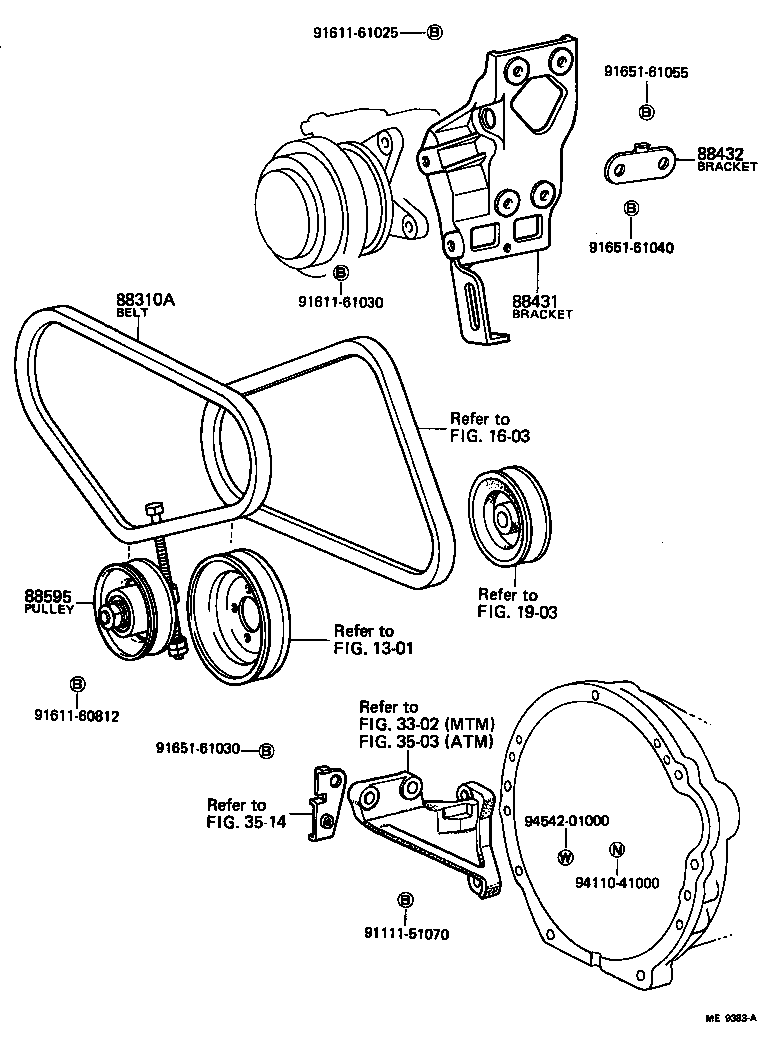

(7810-8005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-50870 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 99322-00870 |
KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN |
1 | ||
| 99322-50900 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-10020 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88431-10010 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88437-12180 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-10010 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-10040 |
KP62..LHD..GEN |
1 | ||
| 88440-10030 |
KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88440-10010 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| Common parts | ||||
| 90099-04573 | ||||
| 91111-51070 | ||||
| 91611-61045 | ||||
| 91651-61016 | ||||
| 91651-61025 | ||||
| 91651-61030 | ||||
| 91651-61040 | ||||
| 94110-41000 | ||||
| 94542-01000 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1603 | ||||
| 1903 | ||||
| 2301 | ||||
| 3302 | ||||
| 3503 | ||||
| 3514 | ||||

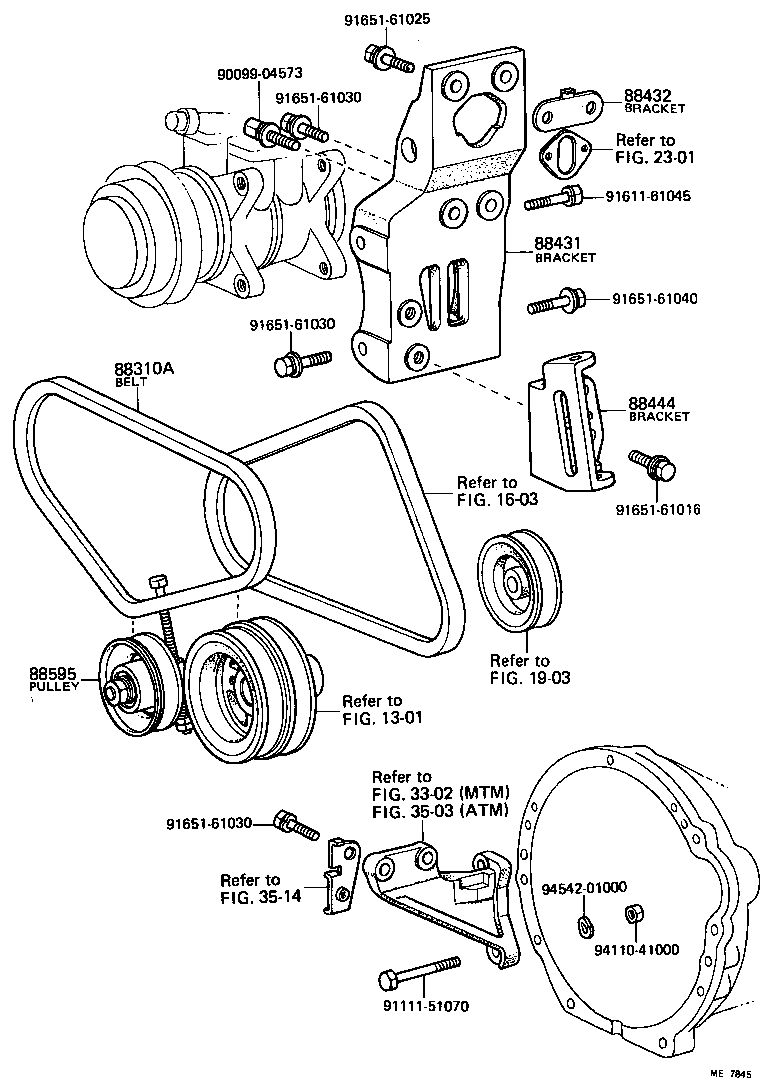

(8005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-50870 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 99322-00870 |
KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN |
1 | ||
| 99322-50900 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-10020 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88431-10010 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88437-12180 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-10040 |
KP62..LHD..GEN |
1 | ||
| 88440-10030 |
KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88440-10010 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| Common parts | ||||
| 91111-51070 | ||||
| 91611-60812 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
| 91651-61030 | ||||
| 91651-61040 | ||||
| 91651-61055 | ||||
| 94110-41000 | ||||
| 94542-01000 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1603 | ||||
| 1903 | ||||
| 3302 | ||||
| 3503 | ||||
| 3514 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
