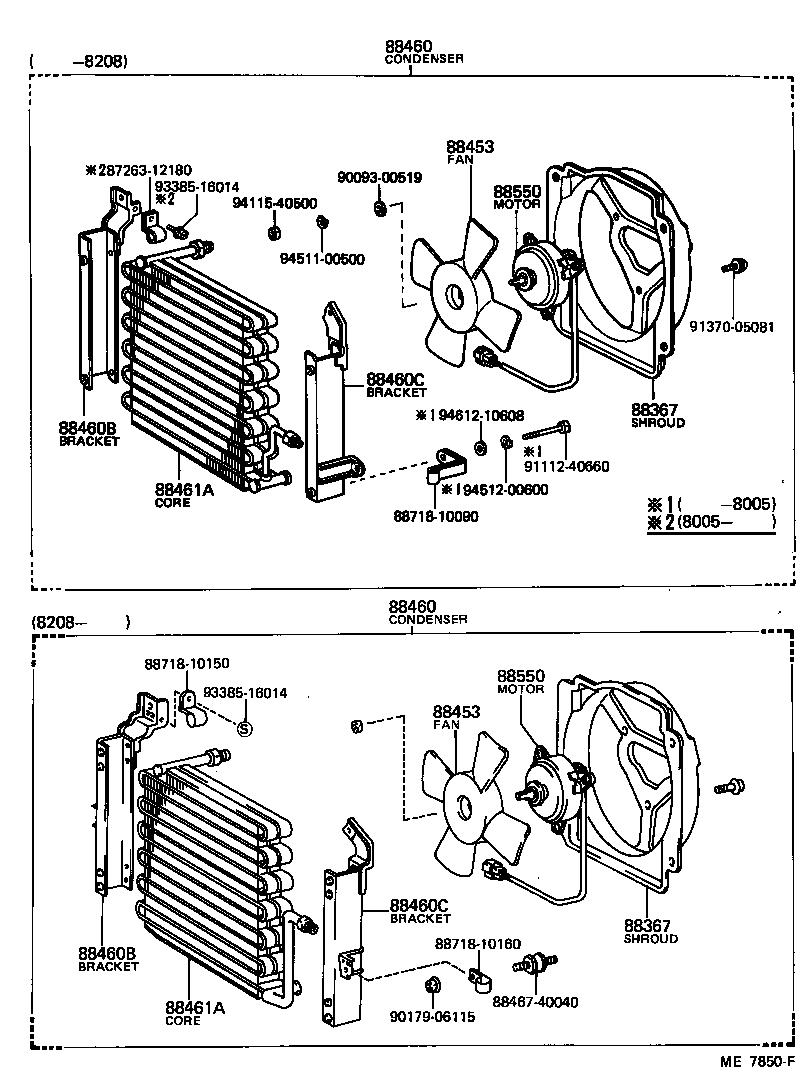

KP62L-PHKRS (1978)
Toyota Starlet
(7810- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-10030 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-10030 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-16010 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-16010 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-10050 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88460-10031 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88460-10030 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-10050 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88460-10031 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88460-10030 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-10010 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88463-10011 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88463-10030 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-10010 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88463-10011 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88463-10030 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-10021 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88463-10040 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88463-10020 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-10021 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88463-10040 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88463-10020 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-10010 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88461-10011 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88461-10020 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-10010 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88461-10011 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88461-10020 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-10020 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-10020 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| Common parts | ||||
| 87263-12180 | ||||
| 88467-40040 | ||||
| 88718-10090 | ||||
| 88718-10150 | ||||
| 88718-10160 | ||||
| 90093-00519 | ||||
| 90179-06115 | ||||
| 91112-40660 | ||||
| 91370-05081 | ||||
| 93385-16014 | ||||
| 94115-40500 | ||||
| 94511-00500 | ||||
| 94512-00600 | ||||
| 94612-10608 | ||||

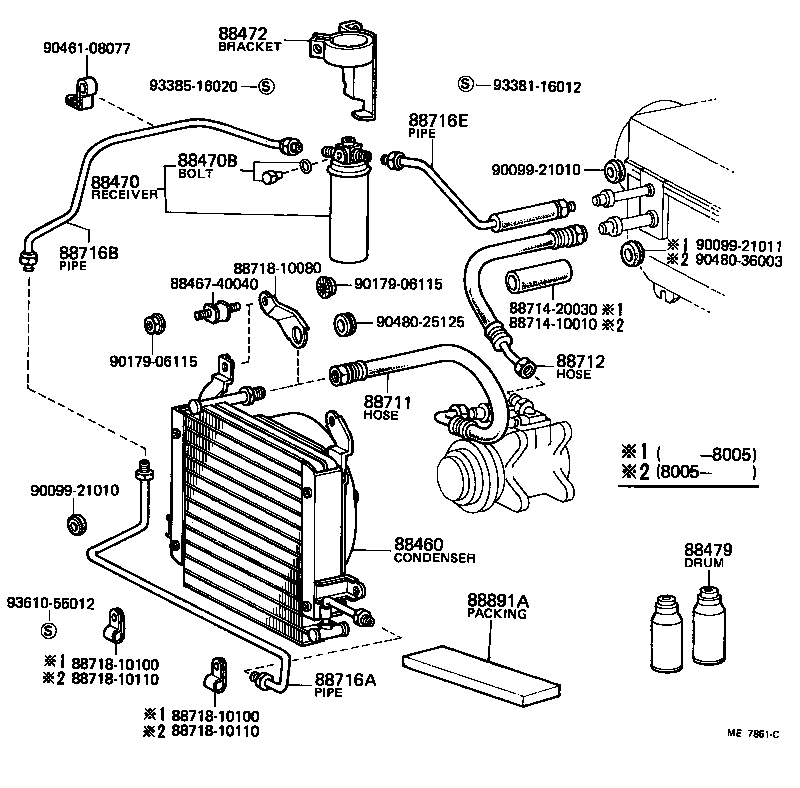

(7810-8208)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-10050 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88460-10031 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88460-10030 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-95400 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88471-10010 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88470-14010 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-10090 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88472-10080 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG 400G |
2 | ||
| 90986-02001 |
KP62..LHD..GEN 400G |
2 | ||
| 88434-30010 |
KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-10030 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88711-10040 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-10020 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88712-10050 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-10160 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88716-10210 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-10170 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88716-10220 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-10200 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88716-10180 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-10030 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN L=80 |
1 | ||
| 88578-10050 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN L=230 |
2 | ||
| 88578-10040 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN L=160 |
2 | ||
| Common parts | ||||
| 88467-40040 | ||||
| 88714-10010 | ||||
| 88714-20030 | ||||
| 88718-10080 | ||||
| 88718-10100 | ||||
| 88718-10110 | ||||
| 90099-21010 | ||||
| 90099-21011 | ||||
| 90179-06115 | ||||
| 90461-08077 | ||||
| 90480-25125 | ||||
| 90480-36003 | ||||
| 93381-16012 | ||||
| 93385-16020 | ||||
| 93610-55012 | ||||
