KP62L-PHKRS (1978)

Toyota Starlet

Production Oct 1978 - Aug 1982
Engine 3KH
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8208)

Click highlighted areas on diagram

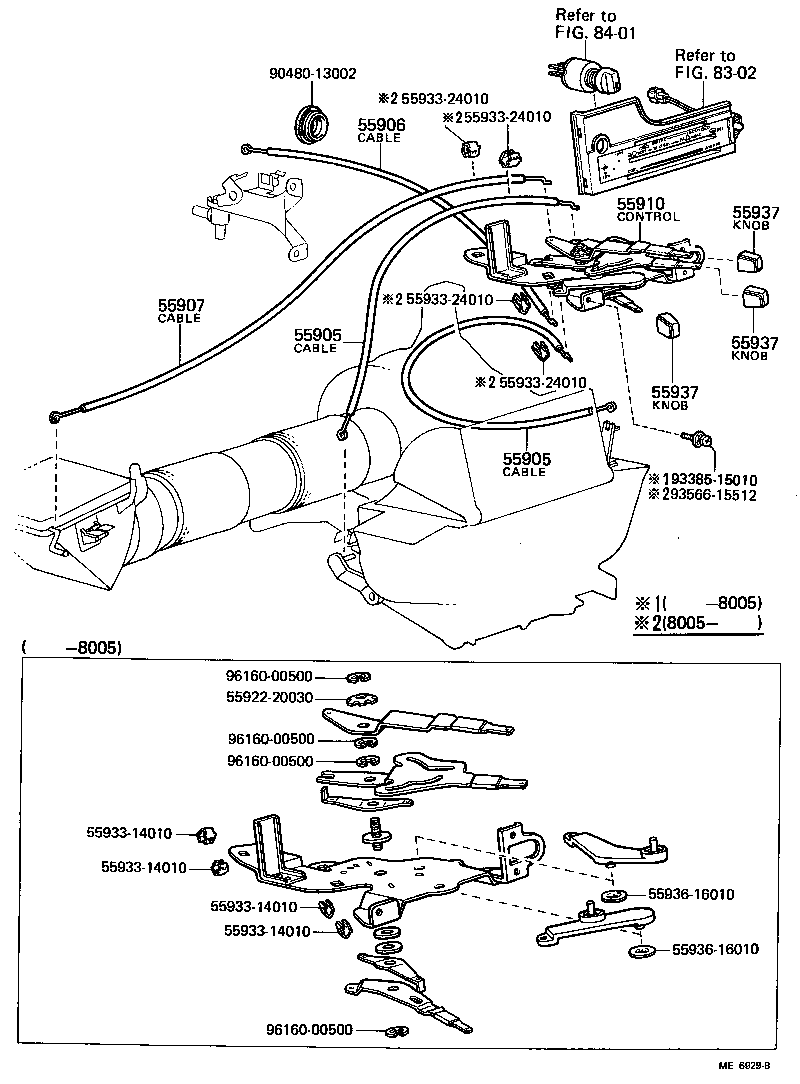

diagram 55905 55905 55906 55907 55910 5592220030 5593314010 5593314010 5593314010 5593314010 5593324010 5593324010 5593324010 5593324010 5593616010 5593616010 55937 55937 55937 8302 8401 9048013002 9338515010 9356615512 9616000500 9616000500 9616000500 9616000500
Part # Description Qty Price
55905 - CABLE SUB-ASSY, DEFROST CONTROL
55906-10110

KP6#..LHD

L=440

 1
55909-10030

KP6#

L=670

 1
55906-10111

KP6#..LHD

L=430

 1
55909-10032

KP6#..LHD

L=680

 1
55906-10112

KP6#..LHD

L=410

 1
55905 - CABLE SUB-ASSY, DEFROST CONTROL
55906-10110

KP6#..LHD

L=440

 1
55909-10030

KP6#

L=670

 1
55906-10111

KP6#..LHD

L=430

 1
55909-10032

KP6#..LHD

L=680

 1
55906-10112

KP6#..LHD

L=410

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55907-10050

KP6#..LHD

L=630

 1
55907-10051

KP6#..LHD

L=650

 1
55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY
55908-10042

KP6#..LHD

L=785

 1
55908-10030

KP6#..LHD

L=790

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-10921

KP6#..LHD

 1
55910-10171

KP6#..LHD

W/O HEATER

 1
55910-10151

KP6#..LHD

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-22050

KP6#

 3
55937 - KNOB, HEATER CONTROL LEVER
55905-22050

KP6#

 3
55937 - KNOB, HEATER CONTROL LEVER
55905-22050

KP6#

 3
Common parts
55922-20030
55933-14010
55933-24010
55936-16010
90480-13002
93385-15010
93566-15512
96160-00500
Linked diagrams
8302
8401

(7802-8208)

Click highlighted areas on diagram

diagram 5501 5501 5503 5503 5503 5503 87201 87210 87211 87212 87214C 87215C 87231 87231 87232 87232 9011906182 9015940094 9046108264 9046108264 9356015010
Part # Description Qty Price
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-10080

KP6#..LHD

 1
87210 - DAMPER ASSY, AIR
87210-10020

KP6#..LHD

 1
87211 - DUCT, AIR, NO.1
55086-10020

KP6#..LHD

 1
55086-10010

KP6#..LHD

W/O HEATER

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-12051

KP60,62..SED..GEN

 1
87231-12051

KP60..LHD;KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN

BOOST VENTILATOR

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-12051

KP60,62..SED..GEN

 1
87231-12051

KP60..LHD;KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN

BOOST VENTILATOR

 1
87232 - HOSE, HEATER DEFROSTER, LH
87231-12051

KP60..LHD;KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN

BOOST VENTILATOR

 1
87231-12051

KP60,62..SED..GEN

 1
87232 - HOSE, HEATER DEFROSTER, LH
87231-12051

KP60..LHD;KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN

BOOST VENTILATOR

 1
87231-12051

KP60,62..SED..GEN

 1
Common parts
90119-06182
90159-40094
90461-08264
93560-15010
Linked diagrams
5501
5503
