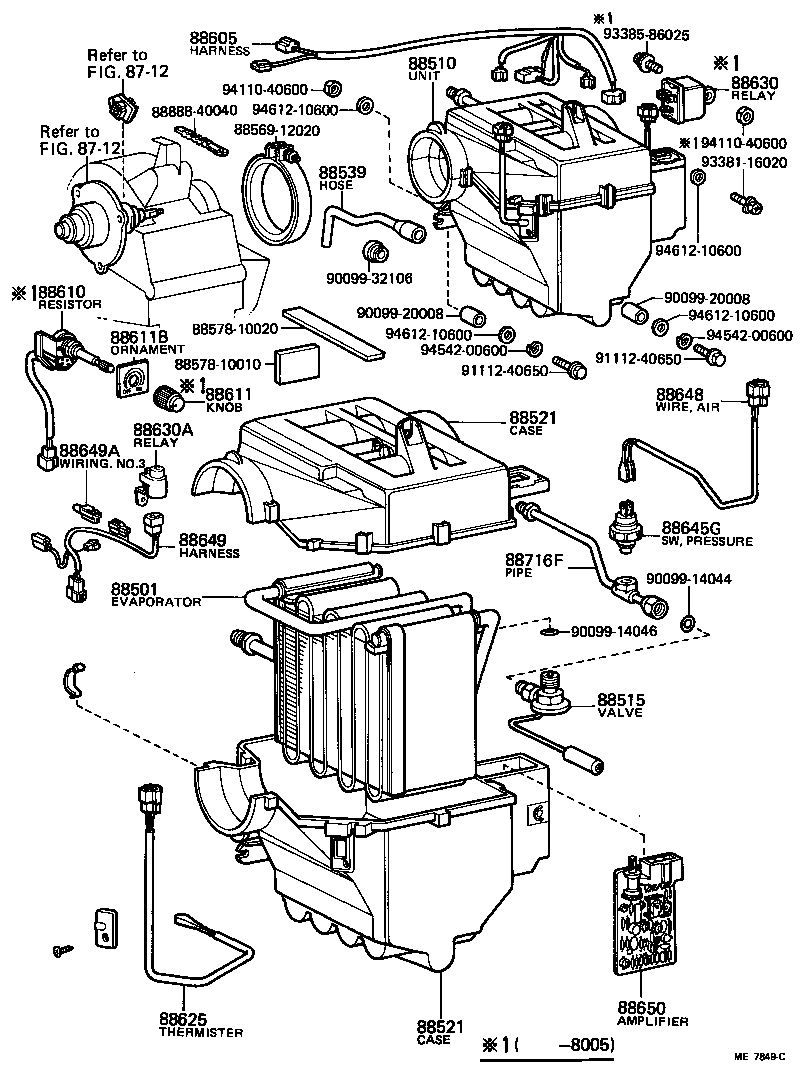

KP62L-PHKRS (1978)
Toyota Starlet
(7810-8208)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-10040 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88501-10041 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88501-10042 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-10041 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88510-10040 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88510-10060 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20040 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88521-10030 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN UPR |
1 | ||
| 88521-10040 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN LWR |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88521-10030 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN UPR |
1 | ||
| 88521-10040 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN LWR |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-10040 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-10040 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88605-10080 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-10010 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88611 - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-10010 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88611B - PLATE, COOLER CONTROL SWITCH | ||||
| 88895-10010 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88895-10070 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-20060 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88625-12050 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-10010 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-10020 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-22010 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-10070 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88648-10130 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88648-12110 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88648-10100 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88649A - WIRING, COOLER, NO.3 | ||||
| 88648-10110 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-10020 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88650-20100 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-10230 |
KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN |
1 | ||
| 88716-10190 |
KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| Common parts | ||||
| 88569-12020 | ||||
| 88578-10010 | ||||
| 88578-10020 | ||||
| 88888-40040 | ||||
| 90099-14044 | ||||
| 90099-14046 | ||||
| 90099-20008 | ||||
| 90099-32106 | ||||
| 91112-40650 | ||||
| 93381-16020 | ||||
| 93385-86025 | ||||
| 94110-40600 | ||||
| 94542-00600 | ||||
| 94612-10600 | ||||
| Linked diagrams | ||||
| 8712 | ||||
