KP62L-PHKRS (1978)
Toyota Starlet
(7802-8208)

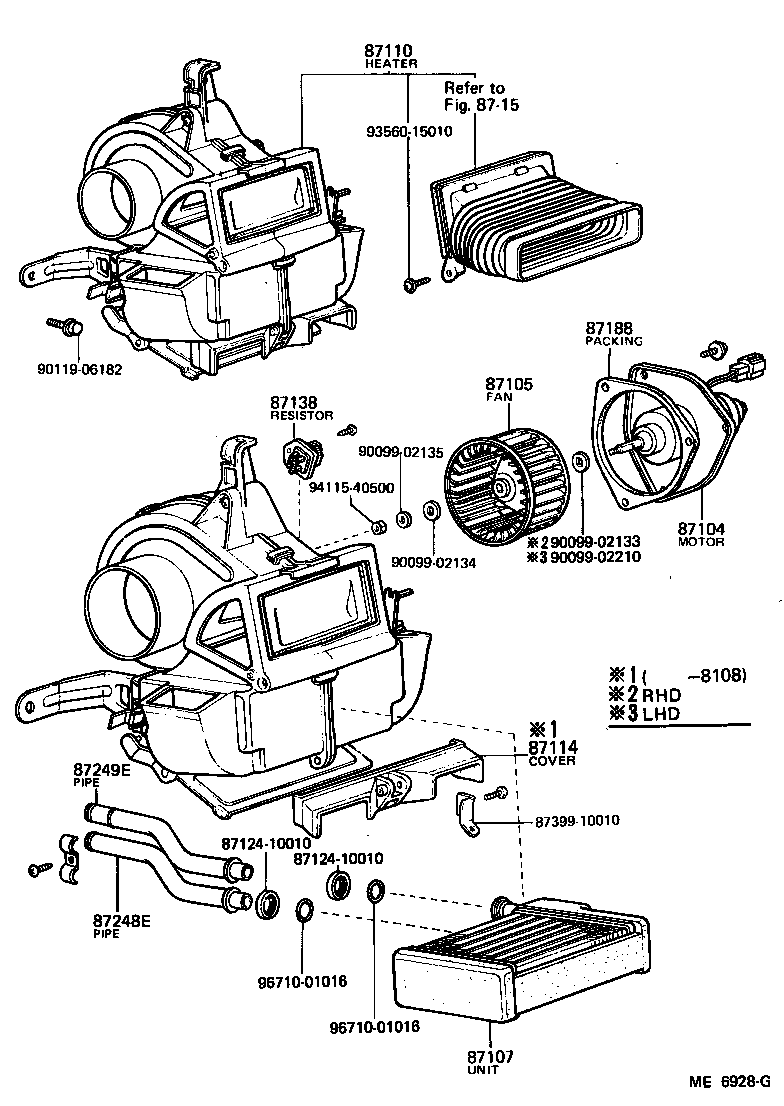

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-10090 |
KP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88550-87701 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG COOLER |
1 | ||
| 87104-10090 |
KP60,62..LHD;KP61..LHD..EUG W/BOOST VENTILATOR |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-12040 |
KP6#..LHD |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-10110 |
KP60,62..GEN |
1 | ||
| 87107-10100 |
KP6# HEAVY DUTY |
1 | ||
| 87107-10110 |
KP6# |
1 | ||
| 87110 - HEATER ASSY | ||||
| 87110-10140 |
KP6#..LHD |
1 | ||
| 87110-10140 |
KP6#..LHD..GEN |
1 | ||
| 87110-10142 |
KP60,62..LHD..GEN |
1 | ||
| 87114 - COVER, HEATER | ||||
| 87114-10010 |
KP6# |
1 | ||
| 87114-10020 |
KP6# |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-14020 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG COOLER |
1 | ||
| 87138-16010 |
KP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 87138-16010 |
KP60,62..GEN |
1 | ||
| 87188 - PACKING, HEATER BLOWER MOTOR | ||||
| 87128-22010 |
KP60,62 |
1 | ||
| 87248E - PIPE, HEATER WATER INLET, E | ||||
| 87291-10100 |
KP60,62 |
1 | ||
| 87249E - PIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT) | ||||
| 87291-10090 |
KP60,62 |
1 | ||
| Common parts | ||||
| 87124-10010 | ||||
| 87399-10010 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-02210 | ||||
| 90119-06182 | ||||
| 93560-15010 | ||||
| 94115-40500 | ||||
| 96710-01016 | ||||
| Linked diagrams | ||||
| 8715 | ||||

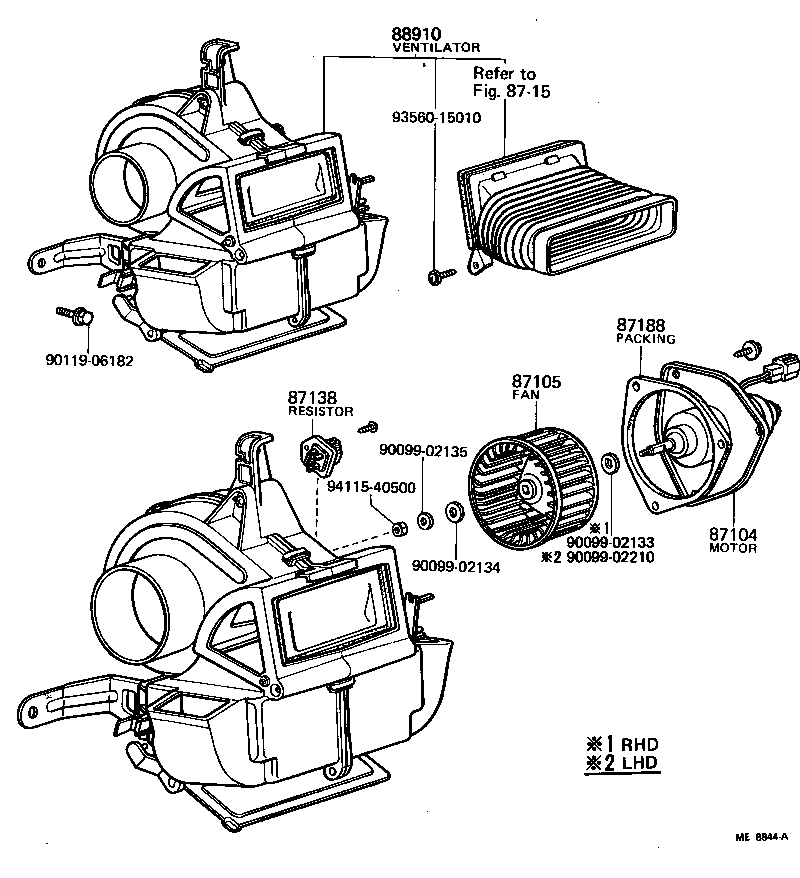

(7810-8208)KP60..LHD ; (7810-8208)KP62..LHD..5F; (7810-8208)KP61..LHD..EUG ; (7810
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-10090 |
KP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 87104-10090 |
KP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88550-87701 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG COOLER |
1 | ||
| 88550-87701 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG COOLER |
1 | ||
| 87104-10090 |
KP60,62..LHD;KP61..LHD..EUG W/BOOST VENTILATOR |
1 | ||
| 87104-10090 |
KP60,62..LHD;KP61..LHD..EUG W/BOOST VENTILATOR |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-12040 |
KP6#..LHD |
1 | ||
| 87105-12040 |
KP6#..LHD |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-14020 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG COOLER |
1 | ||
| 87138-14020 |
KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG COOLER |
1 | ||
| 87138-16010 |
KP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 87138-16010 |
KP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 87138-16010 |
KP60,62..GEN |
1 | ||
| 87138-16010 |
KP60,62..GEN |
1 | ||
| 87188 - PACKING, HEATER BLOWER MOTOR | ||||
| 87128-22010 |
KP60,62 |
1 | ||
| 87128-22010 |
KP60,62 |
1 | ||
| 88910 - VENTILATOR ASSY, BOOST | ||||
| 88910-10010 |
KP60..LHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88910-10010 |
KP60..LHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 88910-10012 |
KP60,62..LHD;KP61..LHD..EUG |
1 | ||
| 88910-10012 |
KP60,62..LHD;KP61..LHD..EUG |
1 | ||
| Common parts | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-02210 | ||||
| 90119-06182 | ||||
| 93560-15010 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 8715 | ||||
