KP62L-PHKRS (1978)

Toyota Starlet

Production Oct 1978 - Aug 1982
Engine 3KH
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-7903)

Click highlighted areas on diagram

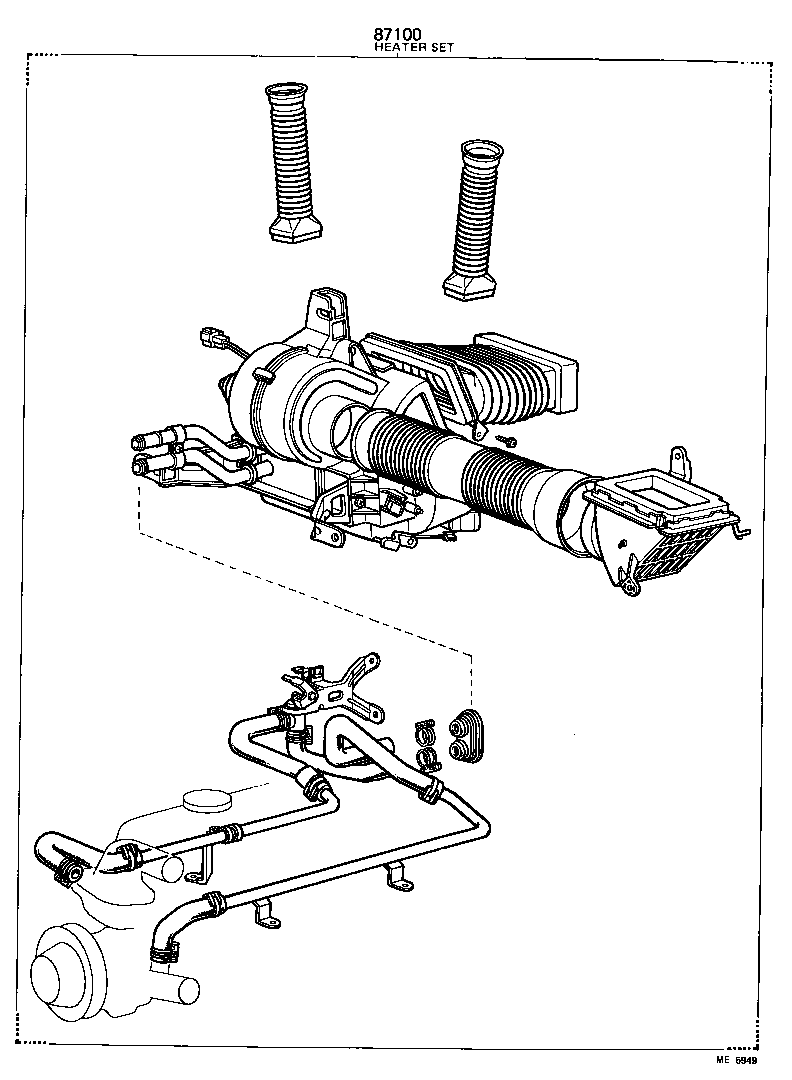

diagram 87100
Part # Description Qty Price
87100 - HEATER AND ACCESSORY ASSY
87100-10250

KP6#..SED..LHD..GEN

 1

(7810- )

Click highlighted areas on diagram

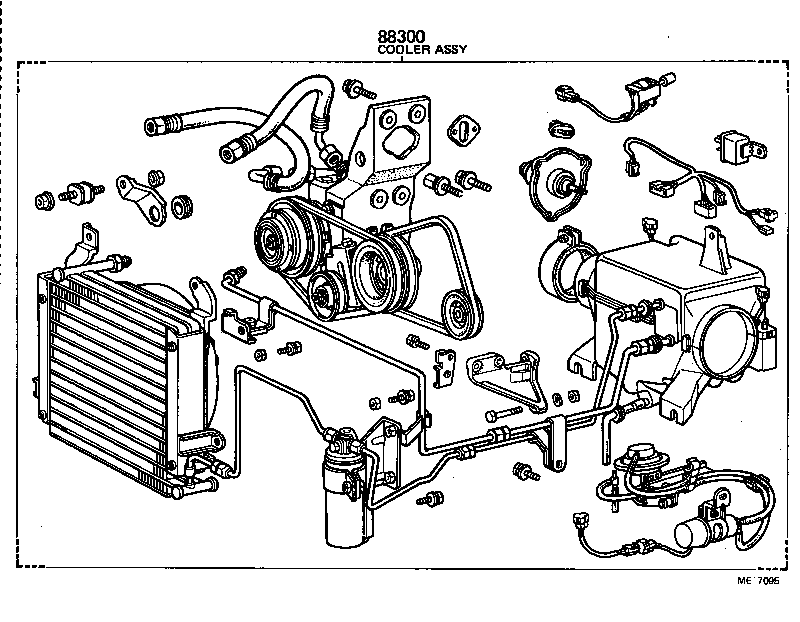

diagram 88300
Part # Description Qty Price
88300 - COOLER & ACCESSORY ASSY
88300-10071

KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN

 1
88300-10100

KP62..LHD..GEN

 1
88300-10070

KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG

 1
