KP62L-PHKRS (1978)

Toyota Starlet

Production Oct 1978 - Aug 1982
Engine 3KH
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

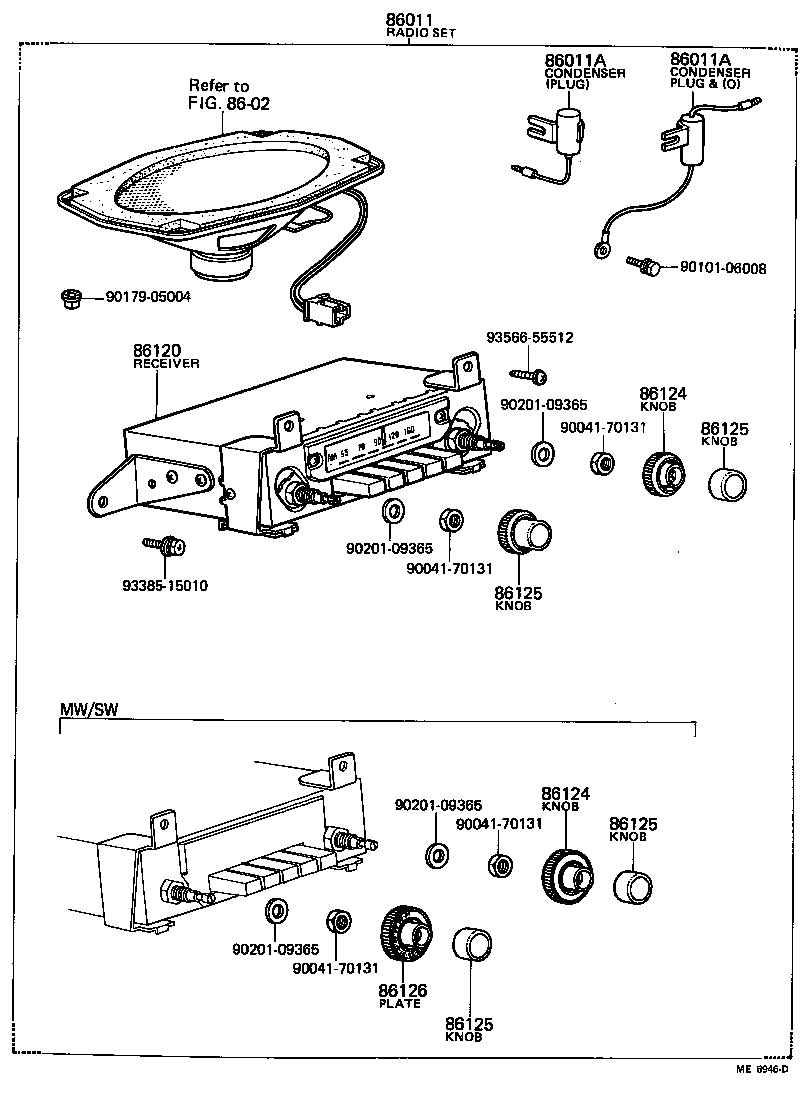

(7802-8005)

Click highlighted areas on diagram

diagram 86011 86011A 86011A 8602 86120 86124 86124 86125 86125 86125 86125 86126 9004170131 9004170131 9004170131 9004170131 9010106008 9017905004 9020109365 9020109365 9020109365 9020109365 9338515010 9356655512
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-10150

KP6#..LHD..GEN

MW/SW

 1
86011-10120

KP6#..LHD

AM

 1
86011-10121

KP6#..LHD

AM

 1
86011-10151

KP60,62..LHD..GEN

MW/SW

 1
86011-10230

KP60,62..LHD..GEN

AM/FM

 1
86011A - CONDENSER, RADIO SETTING
90980-04010

KP6#

W/REGULATOR

 1
90980-04027

KP6#

IGNITION COIL,TEN

 1
90980-04033

KP6#

IGNITION COIL,MATSUSHITA

 1
86011A - CONDENSER, RADIO SETTING
90980-04010

KP6#

W/REGULATOR

 1
90980-04027

KP6#

IGNITION COIL,TEN

 1
90980-04033

KP6#

IGNITION COIL,MATSUSHITA

 1
86120 - RECEIVER ASSY, RADIO
86120-10120

KP6#..LHD..GEN

MW/SW

 1
86120-14300

KP60,62..GEN

MW/SW

 1
86120-10090

KP6#..LHD

AM

 1
86120-14161

KP60,62..GEN

AM/FM

 1
86120-10180

KP6#

AM

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-10020

KP6#

AM,MW/LW,MW/FM/LW

 1
86124-10040

KP6#..GEN

MW/SW

 1
86124-12010

KP6#

AM,MW/LW,MW/FM/LW

 2
86124-12010

KP60,62..GEN

AM/FM

 2
86124-14050

KP60,62..GEN

MW/SW

 1
86124-14070

KP60,62..GEN

MW/SW

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-10020

KP6#

AM,MW/LW,MW/FM/LW

 1
86124-10040

KP6#..GEN

MW/SW

 1
86124-12010

KP6#

AM,MW/LW,MW/FM/LW

 2
86124-12010

KP60,62..GEN

AM/FM

 2
86124-14050

KP60,62..GEN

MW/SW

 1
86124-14070

KP60,62..GEN

MW/SW

 1
86125 - KNOB, RADIO RECEIVER SWITCH
86125-10030

KP6#

AM,MW/LW,MW/FM/LW : RH

 1
86125-12011

KP60,62..GEN

MW/SW

 2
86125-10030

KP6#..GEN

MW/SW

 2
86125-12011

KP60,62..GEN

AM/FM

 2
86125-12011

KP6#

AM,MW/LW,MW/FM/LW

 2
86125-10040

KP6#

AM,MW/LW,MW/FM/LW : LH

 1
86125 - KNOB, RADIO RECEIVER SWITCH
86125-10030

KP6#

AM,MW/LW,MW/FM/LW : RH

 1
86125-12011

KP60,62..GEN

MW/SW

 2
86125-10030

KP6#..GEN

MW/SW

 2
86125-12011

KP60,62..GEN

AM/FM

 2
86125-12011

KP6#

AM,MW/LW,MW/FM/LW

 2
86125-10040

KP6#

AM,MW/LW,MW/FM/LW : LH

 1
86125 - KNOB, RADIO RECEIVER SWITCH
86125-10030

KP6#

AM,MW/LW,MW/FM/LW : RH

 1
86125-12011

KP60,62..GEN

MW/SW

 2
86125-10030

KP6#..GEN

MW/SW

 2
86125-12011

KP60,62..GEN

AM/FM

 2
86125-12011

KP6#

AM,MW/LW,MW/FM/LW

 2
86125-10040

KP6#

AM,MW/LW,MW/FM/LW : LH

 1
86125 - KNOB, RADIO RECEIVER SWITCH
86125-10030

KP6#

AM,MW/LW,MW/FM/LW : RH

 1
86125-12011

KP60,62..GEN

MW/SW

 2
86125-10030

KP6#..GEN

MW/SW

 2
86125-12011

KP60,62..GEN

AM/FM

 2
86125-12011

KP6#

AM,MW/LW,MW/FM/LW

 2
86125-10040

KP6#

AM,MW/LW,MW/FM/LW : LH

 1
86126 - PLATE, RADIO RECEIVER
86126-10010

KP6#..GEN

MW/SW

 1
Common parts
90041-70131
90101-06008
90179-05004
90201-09365
93385-15010
93566-55512
Linked diagrams
8602

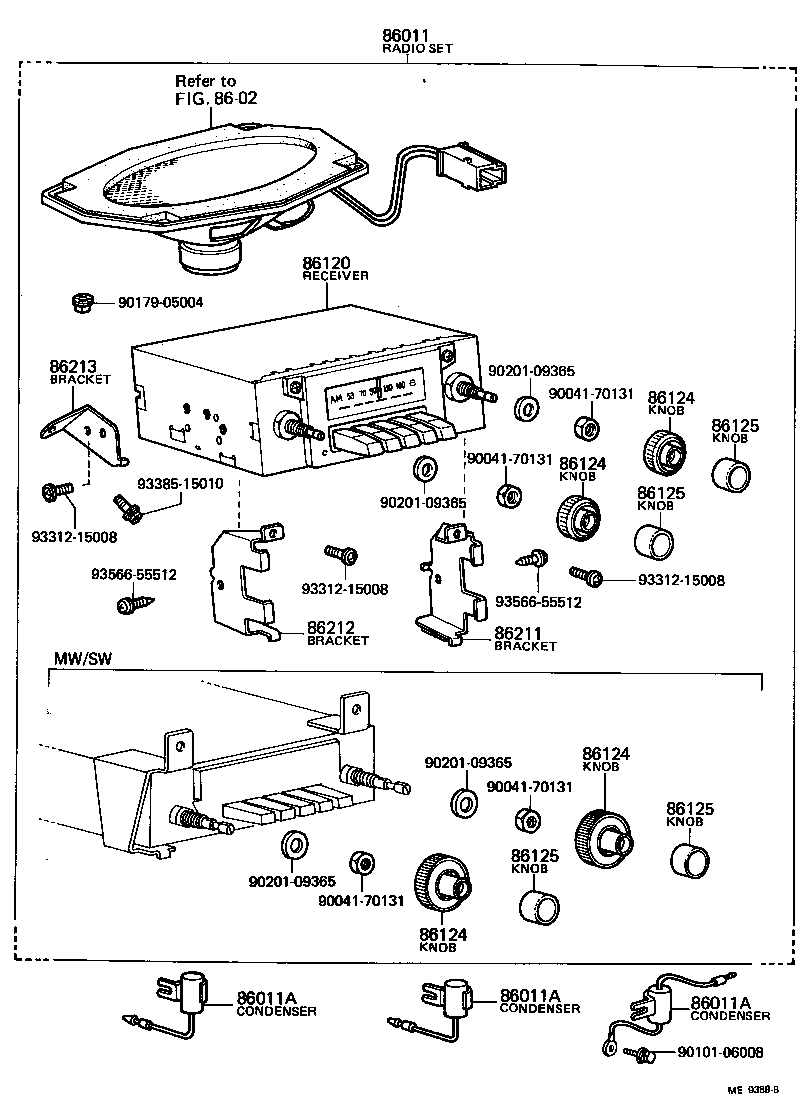

(8005-8208)

Click highlighted areas on diagram

diagram 86011 86011A 86011A 86011A 8602 86120 86124 86124 86124 86124 86125 86125 86125 86125 86211 86212 86213 9004170131 9004170131 9004170131 9004170131 9010106008 9017905004 9020109365 9020109365 9020109365 9020109365 9331215008 9331215008 9331215008 9338515010 9356655512 9356655512
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-10150

KP6#..LHD..GEN

MW/SW

 1
86011-10120

KP6#..LHD

AM

 1
86011-10121

KP6#..LHD

AM

 1
86011-10151

KP60,62..LHD..GEN

MW/SW

 1
86011-10230

KP60,62..LHD..GEN

AM/FM

 1
86011A - CONDENSER, RADIO SETTING
90980-04010

KP6#

W/REGULATOR

 1
90980-04027

KP6#

IGNITION COIL,TEN

 1
90980-04033

KP6#

IGNITION COIL,MATSUSHITA

 1
86011A - CONDENSER, RADIO SETTING
90980-04010

KP6#

W/REGULATOR

 1
90980-04027

KP6#

IGNITION COIL,TEN

 1
90980-04033

KP6#

IGNITION COIL,MATSUSHITA

 1
86011A - CONDENSER, RADIO SETTING
90980-04010

KP6#

W/REGULATOR

 1
90980-04027

KP6#

IGNITION COIL,TEN

 1
90980-04033

KP6#

IGNITION COIL,MATSUSHITA

 1
86120 - RECEIVER ASSY, RADIO
86120-10120

KP6#..LHD..GEN

MW/SW

 1
86120-14300

KP60,62..GEN

MW/SW

 1
86120-10090

KP6#..LHD

AM

 1
86120-14161

KP60,62..GEN

AM/FM

 1
86120-10180

KP6#

AM

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-10020

KP6#

AM,MW/LW,MW/FM/LW

 1
86124-10040

KP6#..GEN

MW/SW

 1
86124-12010

KP6#

AM,MW/LW,MW/FM/LW

 2
86124-12010

KP60,62..GEN

AM/FM

 2
86124-14050

KP60,62..GEN

MW/SW

 1
86124-14070

KP60,62..GEN

MW/SW

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-10020

KP6#

AM,MW/LW,MW/FM/LW

 1
86124-10040

KP6#..GEN

MW/SW

 1
86124-12010

KP6#

AM,MW/LW,MW/FM/LW

 2
86124-12010

KP60,62..GEN

AM/FM

 2
86124-14050

KP60,62..GEN

MW/SW

 1
86124-14070

KP60,62..GEN

MW/SW

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-10020

KP6#

AM,MW/LW,MW/FM/LW

 1
86124-10040

KP6#..GEN

MW/SW

 1
86124-12010

KP6#

AM,MW/LW,MW/FM/LW

 2
86124-12010

KP60,62..GEN

AM/FM

 2
86124-14050

KP60,62..GEN

MW/SW

 1
86124-14070

KP60,62..GEN

MW/SW

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-10020

KP6#

AM,MW/LW,MW/FM/LW

 1
86124-10040

KP6#..GEN

MW/SW

 1
86124-12010

KP6#

AM,MW/LW,MW/FM/LW

 2
86124-12010

KP60,62..GEN

AM/FM

 2
86124-14050

KP60,62..GEN

MW/SW

 1
86124-14070

KP60,62..GEN

MW/SW

 1
86125 - KNOB, RADIO RECEIVER SWITCH
86125-10030

KP6#

AM,MW/LW,MW/FM/LW : RH

 1
86125-12011

KP60,62..GEN

MW/SW

 2
86125-10030

KP6#..GEN

MW/SW

 2
86125-12011

KP60,62..GEN

AM/FM

 2
86125-12011

KP6#

AM,MW/LW,MW/FM/LW

 2
86125-10040

KP6#

AM,MW/LW,MW/FM/LW : LH

 1
86125 - KNOB, RADIO RECEIVER SWITCH
86125-10030

KP6#

AM,MW/LW,MW/FM/LW : RH

 1
86125-12011

KP60,62..GEN

MW/SW

 2
86125-10030

KP6#..GEN

MW/SW

 2
86125-12011

KP60,62..GEN

AM/FM

 2
86125-12011

KP6#

AM,MW/LW,MW/FM/LW

 2
86125-10040

KP6#

AM,MW/LW,MW/FM/LW : LH

 1
86125 - KNOB, RADIO RECEIVER SWITCH
86125-10030

KP6#

AM,MW/LW,MW/FM/LW : RH

 1
86125-12011

KP60,62..GEN

MW/SW

 2
86125-10030

KP6#..GEN

MW/SW

 2
86125-12011

KP60,62..GEN

AM/FM

 2
86125-12011

KP6#

AM,MW/LW,MW/FM/LW

 2
86125-10040

KP6#

AM,MW/LW,MW/FM/LW : LH

 1
86125 - KNOB, RADIO RECEIVER SWITCH
86125-10030

KP6#

AM,MW/LW,MW/FM/LW : RH

 1
86125-12011

KP60,62..GEN

MW/SW

 2
86125-10030

KP6#..GEN

MW/SW

 2
86125-12011

KP60,62..GEN

AM/FM

 2
86125-12011

KP6#

AM,MW/LW,MW/FM/LW

 2
86125-10040

KP6#

AM,MW/LW,MW/FM/LW : LH

 1
86211 - BRACKET, RADIO, NO.1
86207-10010

KP6#

 1
86212 - BRACKET, RADIO, NO.2
86208-10010

KP6#

 1
86213 - BRACKET, RADIO, NO.3
86215-10080

KP6#..LHD

 1
Common parts
90041-70131
90101-06008
90179-05004
90201-09365
93312-15008
93385-15010
93566-55512
Linked diagrams
8602

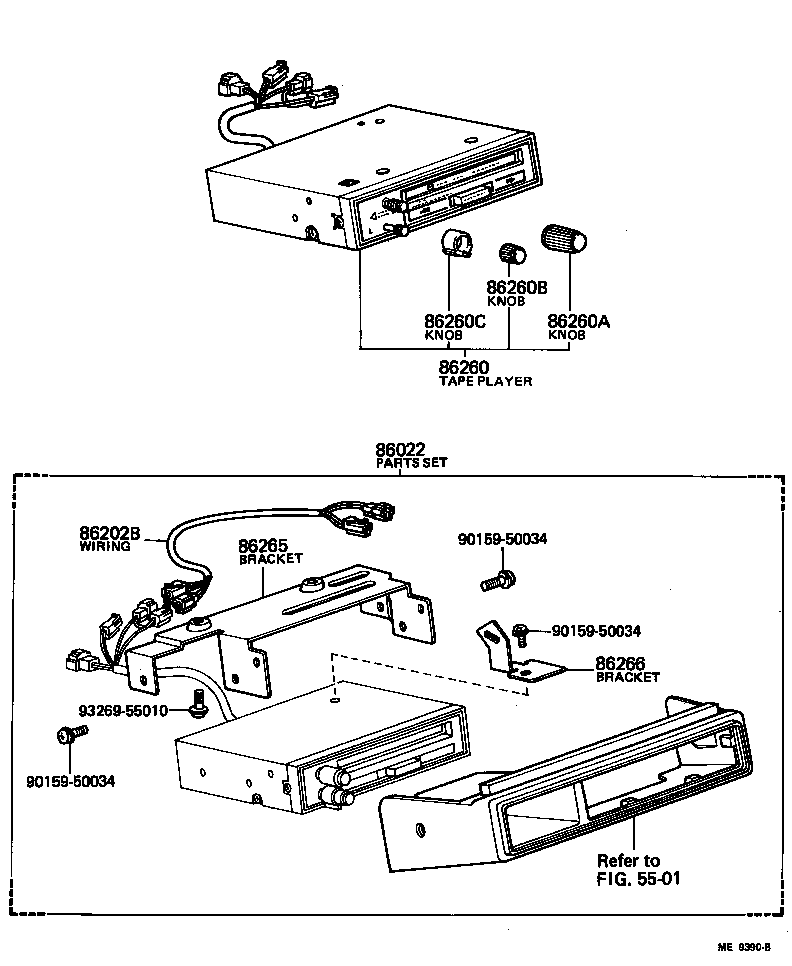

(8005-8208)

Click highlighted areas on diagram

diagram 5501 86022 86202B 86260 86260A 86260B 86260C 86265 86266 9015950034 9015950034 9015950034 9326955010
Part # Description Qty Price
86022 - PARTS SET, TAPE PLAYER SETTING
86022-19036

KP62..LHD..GEN

 1
86202B - WIRE, TAPE PLAYER
86202-10051

KP62..LHD..GEN

 1
86260 - TAPE PLAYER ASSY
86260-16020

KP62..LHD..GEN

 1
86260A - KNOB, TAPE PLAYER VOLUME
86128-12060

KP62..LHD..GEN

 1
86260B - KNOB, TAPE PLAYER TONE
86128-12040

KP62..LHD..GEN

 1
86260C - KNOB, TAPE PLAYER BALANCE
86128-12020

KP62..LHD..GEN

 1
86265 - BRACKET, TAPE PLAYER, NO.1
86265-10081

KP62..LHD..GEN

 1
86266 - BRACKET, TAPE PLAYER, NO.2
86266-10121

KP62..LHD..GEN

 1
Common parts
90159-50034
93269-55010
Linked diagrams
5501
