KP62L-PHKRS (1978)

Toyota Starlet

Production Oct 1978 - Aug 1982
Engine 3KH
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8208)

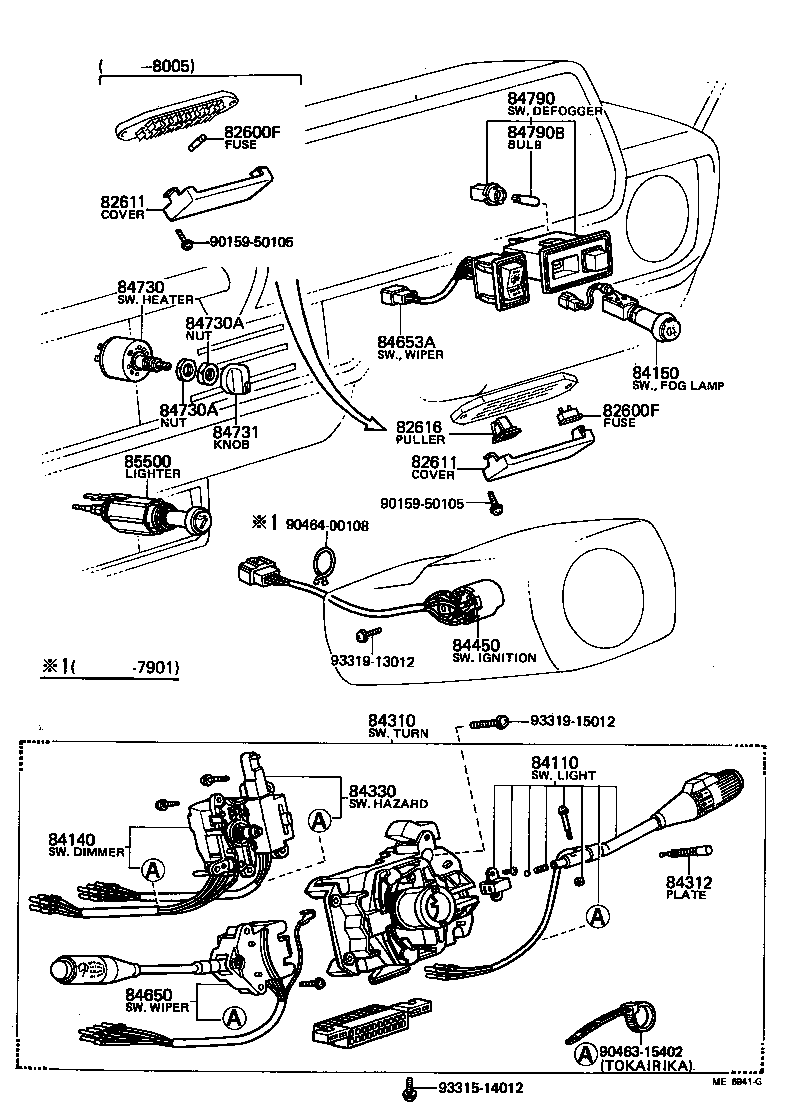

Click highlighted areas on diagram

diagram 82600F 82600F 82611 82611 82616 84110 84140 84150 84310 84312 84330 84450 84650 84653A 84730 84730A 84730A 84731 84790 84790B 85500 9015950105 9015950105 9046315402 9046400108 9331514012 9331913012 9331915012
Part # Description Qty Price
82600F - FUSE, FUSE BLOCK
99118-62915

KP6#

15A,15A

 7
99118-62920

KP6#

20A,20A

 1
99118-62005

KP6#

5A

 2
82600F - FUSE, FUSE BLOCK
99118-62915

KP6#

15A,15A

 7
99118-62920

KP6#

20A,20A

 1
99118-62005

KP6#

5A

 2
82611 - COVER, FUSE BLOCK
82611-10050

KP6#

 1
82611-10051

KP60;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN

SUMITOMO

 1
82611-10052

KP60,62;KP61..EUG

SUMITOMO

 1
82611-10080

KP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN

FURUKAWA

 1
82611 - COVER, FUSE BLOCK
82611-10050

KP6#

 1
82611-10051

KP60;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN

SUMITOMO

 1
82611-10052

KP60,62;KP61..EUG

SUMITOMO

 1
82611-10080

KP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN

FURUKAWA

 1
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-19105

KP6#..LHD

MATSUSHITA

 1
84112-19106

KP6#..LHD

MATSUSHITA

 1
84112-19086

KP6#..LHD

TOKAIRIKA

 1
84112-19107

KP6#..LHD

MATSUSHITA

 1
84112-19087

KP6#..LHD

TOKAIRIKA

 1
84112-19085

KP6#..LHD

TOKAIRIKA

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-19025

KP6#..LHD

TOKAIRIKA

 1
84140-19026

KP6#..LHD

TOKAIRIKA

 1
84140-10041

KP6#..LHD

MATSUSHITA

 1
84140-10040

KP6#..LHD

MATSUSHITA

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-10240

KP6#..LHD

W/*IW

 1
84310-10231

KP6#..LHD..GEN

 1
84310-10241

KP6#..LHD

W/*IW

 1
84310-10230

KP6#..LHD..GEN

 1
84310-10230

KP6#..LHD

 1
84310-10232

KP60,62..LHD..GEN

 1
84310-10242

KP6#..LHD

W/*IW

 1
84312 - PLATE, HORN CONTACT
84312-20011

KP6#

TOKAIRIKA

 1
84312-20020

KP6#

MATSUSHITA

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-19025

KP6#..LHD

TOKAIRIKA

 1
84332-10090

KP6#..LHD

MATSUSHITA

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-10080

KP6#..LHD

 1
84450-14021

KP6#

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-10110

KP6#..LHD

MATSUSHITA

 1
84652-19165

KP6#..LHD

TOKAIRIKA,W/*IW

 1
84652-10110

KP6#..LHD..GEN

MATSUSHITA

 1
84652-10111

KP6#..LHD..GEN

MATSUSHITA

 1
84652-19155

KP6#..LHD..GEN

TOKAIRIKA

 1
84652-19155

KP6#..LHD

TOKAIRIKA

 1
84652-10120

KP6#..LHD

MATSUSHITA,W/*IW

 1
84652-19166

KP6#..LHD

TOKAIRIKA,W/*IW

 1
84652-10121

KP6#..LHD

MATSUSHITA,W/*IW

 1
84652-19167

KP6#..LHD

TOKAIRIKA,W/*IW

 1
84652-10112

KP60,62..LHD..GEN

MATSUSHITA

 1
84652-19156

KP6#..LHD..GEN

TOKAIRIKA

 1
84652-19157

KP60,62..LHD..GEN

TOKAIRIKA

 1
84652-10122

KP6#..LHD

MATSUSHITA,W/*IW

 1
84653A - SWITCH, REAR WIPER
84653-10010

KP6#

 1
84653-10020

KP6#

 1
84653-21030

KP6#

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-10060

KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN

W/COOLER

 1
84732-10050

KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN

W/COOLER

 1
84732-10041

KP6#

 1
84732-10040

KP6#

 1
84730A - NUT, HEATER BLOWER SWITCH
90170-11206

KP6#

 2
84730A - NUT, HEATER BLOWER SWITCH
90170-11206

KP6#

 2
84731 - KNOB, HEATER BLOWER SWITCH
84731-16010

KP6#

 1
84731-12010

KP6#

 1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-22040

KP6#

 1
84790-10060

KP6#

 1
84790-10050

KP6#

 1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
90981-11018

KP6#

12V 1.2W W/O SOCKET,12V 1.4W

 1
90981-11024

KP6#

12V 1.4W,12V 1.4W

 1
90981-11014

KP6#

14V 1.4W,12V 1.4W

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-12031

KP6#..GEN

 1
85500-30340

KP60,62..GEN

 1
Common parts
90159-50105
90463-15402
90464-00108
93315-14012
93319-13012
93319-15012
