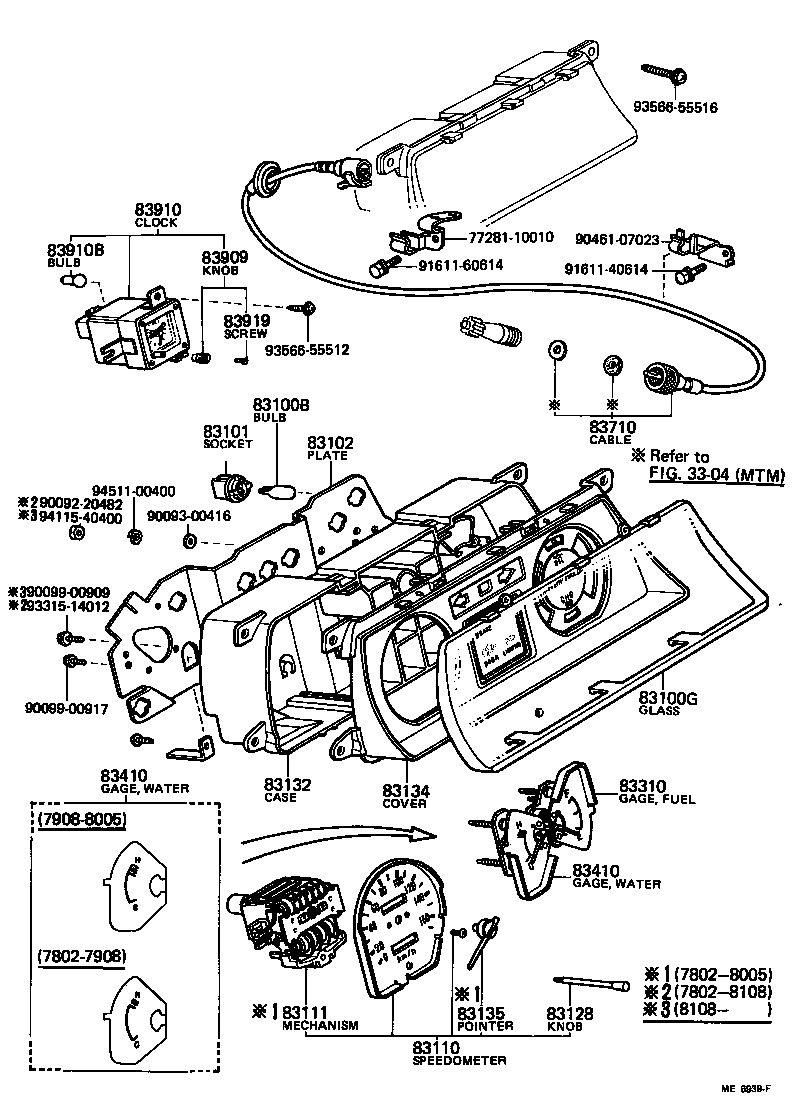

KP62L-PHKRS (1978)
Toyota Starlet
(7802-8208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
KP6#..SED 12V 1.2W W/O SOCKET |
4 | ||
| 99132-12034 |
KP6# 12V 3.4W |
12 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-10340 |
KP6#..SED..LHD W/TACHOMETER |
1 | ||
| 83138-10330 |
KP6# W/O KNOB HOLE |
1 | ||
| 83138-10320 |
KP6#..LHD W/KNOB HOLE |
1 | ||
| 83138-10330 |
KP6#..LHD W/O KNOB HOLE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
KP6# 12V 3.4W |
12 | ||
| 83101-14040 |
KP6#..SED 12V 1.4W,W/TACHOMETER |
4 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-10040 |
KP6#..LHD |
1 | ||
| 83247-10090 |
KP6#..SED..LHD W/TACHOMETER |
1 | ||
| 83247-10041 |
KP6#..LHD |
1 | ||
| 83247-10130 |
KP60,62..LHD..GEN MILE & KM |
1 | ||
| 83247-10170 |
KP60,62..LHD KM |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83241-10080 |
KP6#..LHD KM,W/TRIP KNOB |
1 | ||
| 83241-10090 |
KP6#..SED..LHD..GEN MILE & KM |
1 | ||
| 83241-10070 |
KP6#..LHD KM |
1 | ||
| 83241-10100 |
KP6#..SED..LHD..GEN MILE & KM, W/TRIP KNOB |
1 | ||
| 83110-10400 |
KP6#..SED..LHD MILE & KM |
1 | ||
| 83110-10460 |
KP6#..SED..LHD W/TACHOMETER,KM |
1 | ||
| 83110-10401 |
KP6#..SED..LHD MILE & KM |
1 | ||
| 83110-10380 |
KP60,62..LHD KM |
1 | ||
| 83110-10390 |
KP60,62..LHD KM,W/TRIP KNOB |
1 | ||
| 83110-10530 |
KP60,62..LHD..GEN MILE & KM |
1 | ||
| 83111 - MECHANISM, SPEEDOMETER | ||||
| 83111-10380 |
KP6# KM |
1 | ||
| 83111-14870 |
KP6# KM,W/TRIP COUNTER |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14820 |
KP6# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-10030 |
KP6#..LHD |
1 | ||
| 83132-10031 |
KP6#..LHD |
1 | ||
| 83132-10040 |
KP6#..SED..LHD W/TACHOMETER |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-10070 |
KP6#..SED..LHD |
1 | ||
| 83133-10071 |
KP6#..SED..LHD |
1 | ||
| 83133-10160 |
KP6#..SED..LHD W/TACHOMETER |
1 | ||
| 83133-10250 |
KP6#..SED..LHD |
1 | ||
| 83135 - POINTER, SPEEDOMETER | ||||
| 83135-10380 |
KP6# KM |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-10031 |
KP6#..LHD |
1 | ||
| 83243-10030 |
KP6#..LHD |
1 | ||
| 83243-10050 |
KP6#..SED..LHD W/TACHOMETER |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-10050 |
KP6#..SED..LHD W/TACHOMETER |
1 | ||
| 83244-10032 |
KP6#..LHD |
1 | ||
| 83244-10031 |
KP6#..LHD |
1 | ||
| 83244-10030 |
KP6#..LHD |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-10050 |
KP6#..SED..LHD W/TACHOMETER |
1 | ||
| 83244-10032 |
KP6#..LHD |
1 | ||
| 83244-10031 |
KP6#..LHD |
1 | ||
| 83244-10030 |
KP6#..LHD |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-19456 |
KP6#..LHD..MTM L=2200 |
1 | ||
| 83710-19455 |
KP6#..LHD L=2200 |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
KP6# |
1 | ||
| 83909-10041 |
KP6# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-10071 |
KP6#..LHD |
1 | ||
| 83910-10070 |
KP6#..LHD |
1 | ||
| 83910-10060 |
KP6#..LHD |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 99132-11034 |
KP6# 12V 3.4W |
1 | ||
| Common parts | ||||
| 77281-10010 | ||||
| 90092-20482 | ||||
| 90093-00416 | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
| 90461-07023 | ||||
| 91611-40614 | ||||
| 91611-60614 | ||||
| 93315-14012 | ||||
| 93566-55512 | ||||
| 93566-55516 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
| Linked diagrams | ||||
| 3304 | ||||

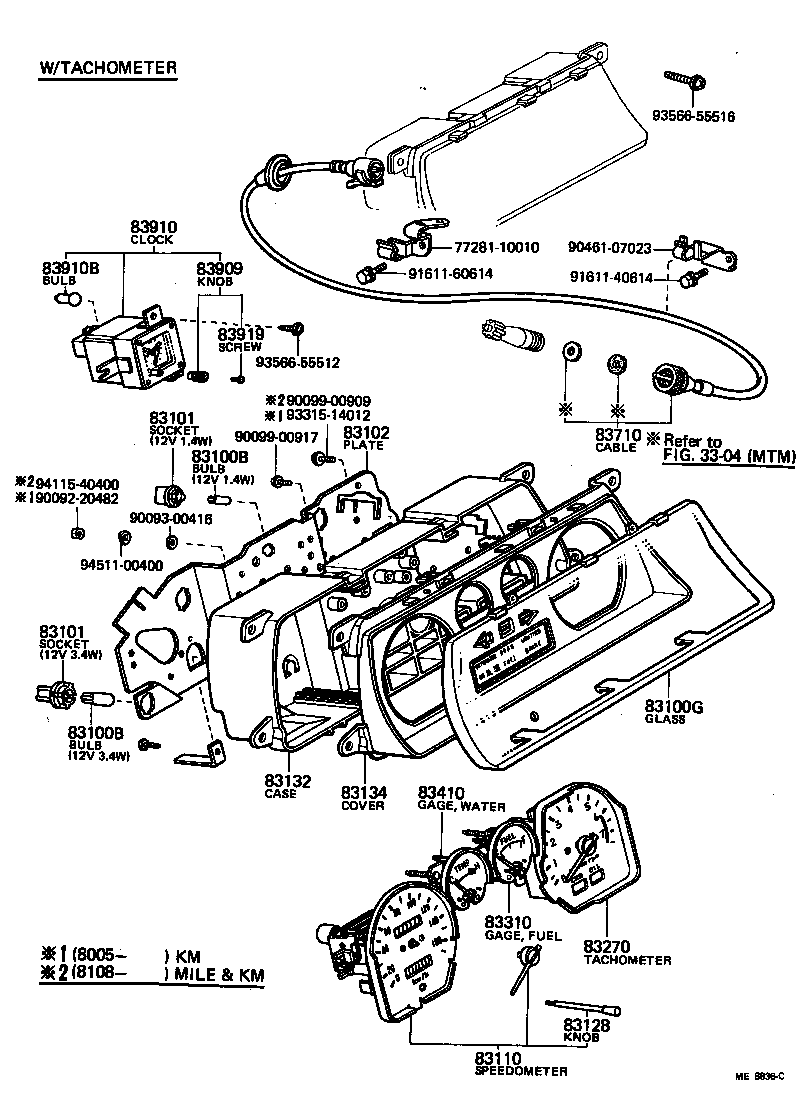

(8005-8208)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
KP6#..SED 12V 1.2W W/O SOCKET |
4 | ||
| 99132-12034 |
KP6# 12V 3.4W |
12 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
KP6#..SED 12V 1.2W W/O SOCKET |
4 | ||
| 99132-12034 |
KP6# 12V 3.4W |
12 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-10340 |
KP6#..SED..LHD W/TACHOMETER |
1 | ||
| 83138-10330 |
KP6# W/O KNOB HOLE |
1 | ||
| 83138-10320 |
KP6#..LHD W/KNOB HOLE |
1 | ||
| 83138-10330 |
KP6#..LHD W/O KNOB HOLE |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
KP6# 12V 3.4W |
12 | ||
| 83101-14040 |
KP6#..SED 12V 1.4W,W/TACHOMETER |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
KP6# 12V 3.4W |
12 | ||
| 83101-14040 |
KP6#..SED 12V 1.4W,W/TACHOMETER |
4 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-10040 |
KP6#..LHD |
1 | ||
| 83247-10090 |
KP6#..SED..LHD W/TACHOMETER |
1 | ||
| 83247-10041 |
KP6#..LHD |
1 | ||
| 83247-10130 |
KP60,62..LHD..GEN MILE & KM |
1 | ||
| 83247-10170 |
KP60,62..LHD KM |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83241-10080 |
KP6#..LHD KM,W/TRIP KNOB |
1 | ||
| 83241-10090 |
KP6#..SED..LHD..GEN MILE & KM |
1 | ||
| 83241-10070 |
KP6#..LHD KM |
1 | ||
| 83241-10100 |
KP6#..SED..LHD..GEN MILE & KM, W/TRIP KNOB |
1 | ||
| 83110-10400 |
KP6#..SED..LHD MILE & KM |
1 | ||
| 83110-10460 |
KP6#..SED..LHD W/TACHOMETER,KM |
1 | ||
| 83110-10401 |
KP6#..SED..LHD MILE & KM |
1 | ||
| 83110-10380 |
KP60,62..LHD KM |
1 | ||
| 83110-10390 |
KP60,62..LHD KM,W/TRIP KNOB |
1 | ||
| 83110-10530 |
KP60,62..LHD..GEN MILE & KM |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14820 |
KP6# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-10030 |
KP6#..LHD |
1 | ||
| 83132-10031 |
KP6#..LHD |
1 | ||
| 83132-10040 |
KP6#..SED..LHD W/TACHOMETER |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-10070 |
KP6#..SED..LHD |
1 | ||
| 83133-10071 |
KP6#..SED..LHD |
1 | ||
| 83133-10160 |
KP6#..SED..LHD W/TACHOMETER |
1 | ||
| 83133-10250 |
KP6#..SED..LHD |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-10030 |
KP6#..SED..LHD W/TACHOMETER |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-10031 |
KP6#..LHD |
1 | ||
| 83243-10030 |
KP6#..LHD |
1 | ||
| 83243-10050 |
KP6#..SED..LHD W/TACHOMETER |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-10050 |
KP6#..SED..LHD W/TACHOMETER |
1 | ||
| 83244-10032 |
KP6#..LHD |
1 | ||
| 83244-10031 |
KP6#..LHD |
1 | ||
| 83244-10030 |
KP6#..LHD |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-19456 |
KP6#..LHD..MTM L=2200 |
1 | ||
| 83710-19455 |
KP6#..LHD L=2200 |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
KP6# |
1 | ||
| 83909-10041 |
KP6# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-10071 |
KP6#..LHD |
1 | ||
| 83910-10070 |
KP6#..LHD |
1 | ||
| 83910-10060 |
KP6#..LHD |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 99132-11034 |
KP6# 12V 3.4W |
1 | ||
| Common parts | ||||
| 77281-10010 | ||||
| 90092-20482 | ||||
| 90093-00416 | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
| 90461-07023 | ||||
| 91611-40614 | ||||
| 91611-60614 | ||||
| 93315-14012 | ||||
| 93566-55512 | ||||
| 93566-55516 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
| Linked diagrams | ||||
| 3304 | ||||
