KP62L-PHKRS (1978)
Toyota Starlet
(7802-8005)

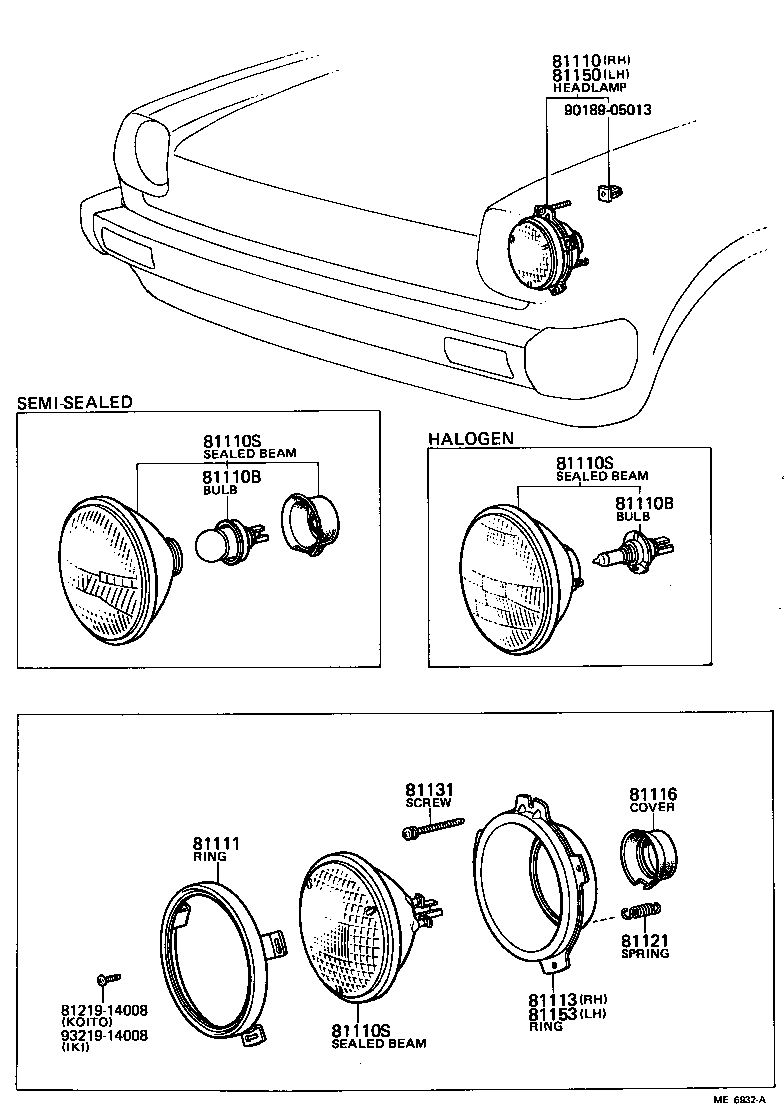

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-10180 |
KP6#..LHD SEMI-SEALED,YELLOW |
1 | ||
| 81110-19756 |
KP60,62..LHD..GEN IKI |
1 | ||
| 81110-10190 |
KP6#..LHD..GEN KOITO |
1 | ||
| 81110-19755 |
KP6#..LHD..GEN IKI |
1 | ||
| 81110-19746 |
KP60,62..LHD..GEN KOITO |
1 | ||
| 81110-19776 |
KP6#..LHD SEMI-SEALED,WHITE |
1 | ||
| 81110-10160 |
KP6#..LHD SEMI-SEALED,WHITE |
1 | ||
| 81110-19786 |
KP60..LHD;KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN SEMI-SEALED,YELLOW |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13013 |
KP6# 12V 45/40W,WHITE,12V 45/40W,SEMI-SEALED,WHITE |
2 | ||
| 90981-13014 |
KP60..LHD;KP62..LHD..5F;KP61..LHD..5F..GEN;KP61..LHD..3D..GEN;KP61..LHD..5F..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG;KP61..LHD..(4D,5D)..(3FC,4F);KP61..LHD..3D..(3FC,4F)..EUG 12V 45/40W,YELLOW,12V 45/40W,SEMI-SEALED,YELLOW |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13013 |
KP6# 12V 45/40W,WHITE,12V 45/40W,SEMI-SEALED,WHITE |
2 | ||
| 90981-13014 |
KP60..LHD;KP62..LHD..5F;KP61..LHD..5F..GEN;KP61..LHD..3D..GEN;KP61..LHD..5F..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG;KP61..LHD..(4D,5D)..(3FC,4F);KP61..LHD..3D..(3FC,4F)..EUG 12V 45/40W,YELLOW,12V 45/40W,SEMI-SEALED,YELLOW |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-01016 |
KP6#..LHD..GEN 12V 50/40W,KOITO |
2 | ||
| 90981-01018 |
KP6#..LHD 12V 45/40W,*YSB,SEMI-SEALED,YELLOW |
2 | ||
| 90981-01017 |
KP6#..LHD 12V 45/40W,*WSB,SEMI-SEALED,WHITE |
2 | ||
| 90981-04003 |
KP60,62..LHD..GEN 12V 65/55W,*WB,IKI |
2 | ||
| 90981-04004 |
KP60,62..LHD..GEN 12V 65/55W,*WB,KOITO |
2 | ||
| 90981-04006 |
KP6#..LHD 12V 45/40W,*WSB,SEMI-SEALED,WHITE |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-01016 |
KP6#..LHD..GEN 12V 50/40W,KOITO |
2 | ||
| 90981-01018 |
KP6#..LHD 12V 45/40W,*YSB,SEMI-SEALED,YELLOW |
2 | ||
| 90981-01017 |
KP6#..LHD 12V 45/40W,*WSB,SEMI-SEALED,WHITE |
2 | ||
| 90981-04003 |
KP60,62..LHD..GEN 12V 65/55W,*WB,IKI |
2 | ||
| 90981-04004 |
KP60,62..LHD..GEN 12V 65/55W,*WB,KOITO |
2 | ||
| 90981-04006 |
KP6#..LHD 12V 45/40W,*WSB,SEMI-SEALED,WHITE |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-01016 |
KP6#..LHD..GEN 12V 50/40W,KOITO |
2 | ||
| 90981-01018 |
KP6#..LHD 12V 45/40W,*YSB,SEMI-SEALED,YELLOW |
2 | ||
| 90981-01017 |
KP6#..LHD 12V 45/40W,*WSB,SEMI-SEALED,WHITE |
2 | ||
| 90981-04003 |
KP60,62..LHD..GEN 12V 65/55W,*WB,IKI |
2 | ||
| 90981-04004 |
KP60,62..LHD..GEN 12V 65/55W,*WB,KOITO |
2 | ||
| 90981-04006 |
KP6#..LHD 12V 45/40W,*WSB,SEMI-SEALED,WHITE |
2 | ||
| 81111 - RING, SEALED BEAM RETAINING | ||||
| 81111-12421 |
KP6#..GEN IKI |
2 | ||
| 81111-22150 |
KP6# KOITO |
2 | ||
| 81111-16010 |
KP60,62..GEN IKI |
2 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-12070 |
KP6# KOITO |
1 | ||
| 81153-16020 |
KP6# KOITO |
1 | ||
| 81113-10061 |
KP6#..GEN IKI |
1 | ||
| 81153-16010 |
KP60,62..GEN IKI |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-62010 |
KP6# KOITO |
2 | ||
| 81121-10170 |
KP6#..GEN IKI |
2 | ||
| 81121-16010 |
KP60,62..GEN IKI |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-16010 |
KP60,62..GEN IKI |
4 | ||
| 81131-10150 |
KP6# KOITO |
4 | ||
| 81131-10170 |
KP6#..GEN IKI |
4 | ||
| 81131-20360 |
KP6# KOITO |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-10130 |
KP6#..LHD SEMI-SEALED,YELLOW |
1 | ||
| 81150-10110 |
KP6#..LHD SEMI-SEALED,WHITE |
1 | ||
| 81150-19695 |
KP6#..LHD..GEN IKI |
1 | ||
| 81150-10140 |
KP6#..LHD..GEN KOITO |
1 | ||
| 81150-19716 |
KP6#..LHD SEMI-SEALED,WHITE |
1 | ||
| 81150-19686 |
KP60,62..LHD..GEN KOITO |
1 | ||
| 81150-19696 |
KP60,62..LHD..GEN IKI |
1 | ||
| 81150-19726 |
KP60..LHD;KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN SEMI-SEALED,YELLOW |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81113-16020 |
KP6# KOITO |
1 | ||
| 81113-16010 |
KP60,62..GEN IKI |
1 | ||
| 81153-12010 |
KP6# KOITO |
1 | ||
| 81153-10021 |
KP6#..GEN IKI |
1 | ||
| Common parts | ||||
| 81219-14008 | ||||
| 90189-05013 | ||||
| 93219-14008 | ||||

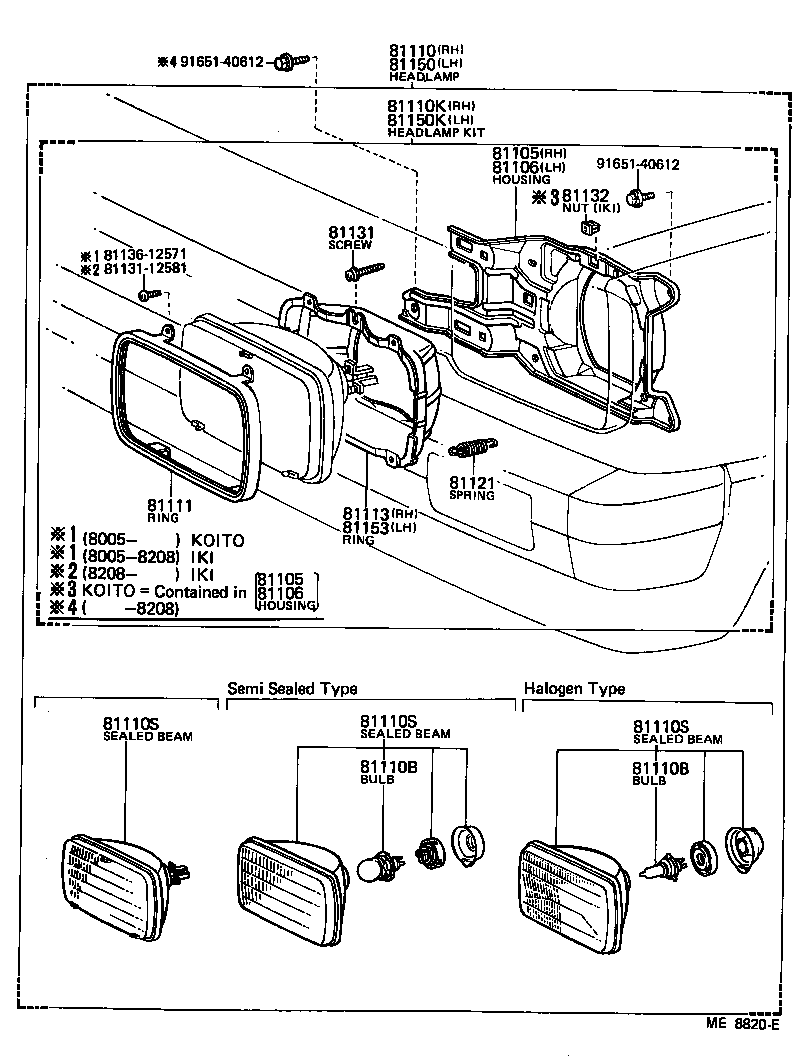

(8005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-10151 |
KP6# KOITO |
1 | ||
| 81105-10171 |
KP60,62..GEN IKI |
1 | ||
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-10151 |
KP6# KOITO |
1 | ||
| 81105-10171 |
KP60,62..GEN IKI |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-10121 |
KP60,62..GEN IKI |
1 | ||
| 81106-10101 |
KP6# KOITO |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-10121 |
KP60,62..GEN IKI |
1 | ||
| 81106-10101 |
KP6# KOITO |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-10180 |
KP6#..LHD SEMI-SEALED,YELLOW |
1 | ||
| 81110-19756 |
KP60,62..LHD..GEN IKI |
1 | ||
| 81110-10190 |
KP6#..LHD..GEN KOITO |
1 | ||
| 81110-19755 |
KP6#..LHD..GEN IKI |
1 | ||
| 81110-19746 |
KP60,62..LHD..GEN KOITO |
1 | ||
| 81110-19776 |
KP6#..LHD SEMI-SEALED,WHITE |
1 | ||
| 81110-10160 |
KP6#..LHD SEMI-SEALED,WHITE |
1 | ||
| 81110-19786 |
KP60..LHD;KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN SEMI-SEALED,YELLOW |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13013 |
KP6# 12V 45/40W,WHITE,12V 45/40W,SEMI-SEALED,WHITE |
2 | ||
| 90981-13014 |
KP60..LHD;KP62..LHD..5F;KP61..LHD..5F..GEN;KP61..LHD..3D..GEN;KP61..LHD..5F..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG;KP61..LHD..(4D,5D)..(3FC,4F);KP61..LHD..3D..(3FC,4F)..EUG 12V 45/40W,YELLOW,12V 45/40W,SEMI-SEALED,YELLOW |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13013 |
KP6# 12V 45/40W,WHITE,12V 45/40W,SEMI-SEALED,WHITE |
2 | ||
| 90981-13014 |
KP60..LHD;KP62..LHD..5F;KP61..LHD..5F..GEN;KP61..LHD..3D..GEN;KP61..LHD..5F..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG;KP61..LHD..(4D,5D)..(3FC,4F);KP61..LHD..3D..(3FC,4F)..EUG 12V 45/40W,YELLOW,12V 45/40W,SEMI-SEALED,YELLOW |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-01016 |
KP6#..LHD..GEN 12V 50/40W,KOITO |
2 | ||
| 90981-01018 |
KP6#..LHD 12V 45/40W,*YSB,SEMI-SEALED,YELLOW |
2 | ||
| 90981-01017 |
KP6#..LHD 12V 45/40W,*WSB,SEMI-SEALED,WHITE |
2 | ||
| 90981-04003 |
KP60,62..LHD..GEN 12V 65/55W,*WB,IKI |
2 | ||
| 90981-04004 |
KP60,62..LHD..GEN 12V 65/55W,*WB,KOITO |
2 | ||
| 90981-04006 |
KP6#..LHD 12V 45/40W,*WSB,SEMI-SEALED,WHITE |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-01016 |
KP6#..LHD..GEN 12V 50/40W,KOITO |
2 | ||
| 90981-01018 |
KP6#..LHD 12V 45/40W,*YSB,SEMI-SEALED,YELLOW |
2 | ||
| 90981-01017 |
KP6#..LHD 12V 45/40W,*WSB,SEMI-SEALED,WHITE |
2 | ||
| 90981-04003 |
KP60,62..LHD..GEN 12V 65/55W,*WB,IKI |
2 | ||
| 90981-04004 |
KP60,62..LHD..GEN 12V 65/55W,*WB,KOITO |
2 | ||
| 90981-04006 |
KP6#..LHD 12V 45/40W,*WSB,SEMI-SEALED,WHITE |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-01016 |
KP6#..LHD..GEN 12V 50/40W,KOITO |
2 | ||
| 90981-01018 |
KP6#..LHD 12V 45/40W,*YSB,SEMI-SEALED,YELLOW |
2 | ||
| 90981-01017 |
KP6#..LHD 12V 45/40W,*WSB,SEMI-SEALED,WHITE |
2 | ||
| 90981-04003 |
KP60,62..LHD..GEN 12V 65/55W,*WB,IKI |
2 | ||
| 90981-04004 |
KP60,62..LHD..GEN 12V 65/55W,*WB,KOITO |
2 | ||
| 90981-04006 |
KP6#..LHD 12V 45/40W,*WSB,SEMI-SEALED,WHITE |
2 | ||
| 81111 - RING, SEALED BEAM RETAINING | ||||
| 81111-12421 |
KP6#..GEN IKI |
2 | ||
| 81111-22150 |
KP6# KOITO |
2 | ||
| 81111-16010 |
KP60,62..GEN IKI |
2 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-12070 |
KP6# KOITO |
1 | ||
| 81153-16020 |
KP6# KOITO |
1 | ||
| 81113-10061 |
KP6#..GEN IKI |
1 | ||
| 81153-16010 |
KP60,62..GEN IKI |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-62010 |
KP6# KOITO |
2 | ||
| 81121-10170 |
KP6#..GEN IKI |
2 | ||
| 81121-16010 |
KP60,62..GEN IKI |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-16010 |
KP60,62..GEN IKI |
4 | ||
| 81131-10150 |
KP6# KOITO |
4 | ||
| 81131-10170 |
KP6#..GEN IKI |
4 | ||
| 81131-20360 |
KP6# KOITO |
4 | ||
| 81132 - NUT, HEADLAMP SELF LOCKING | ||||
| 81132-20380 |
KP60,62..GEN IKI |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-10130 |
KP6#..LHD SEMI-SEALED,YELLOW |
1 | ||
| 81150-10110 |
KP6#..LHD SEMI-SEALED,WHITE |
1 | ||
| 81150-19695 |
KP6#..LHD..GEN IKI |
1 | ||
| 81150-10140 |
KP6#..LHD..GEN KOITO |
1 | ||
| 81150-19716 |
KP6#..LHD SEMI-SEALED,WHITE |
1 | ||
| 81150-19686 |
KP60,62..LHD..GEN KOITO |
1 | ||
| 81150-19696 |
KP60,62..LHD..GEN IKI |
1 | ||
| 81150-19726 |
KP60..LHD;KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN SEMI-SEALED,YELLOW |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81113-16020 |
KP6# KOITO |
1 | ||
| 81113-16010 |
KP60,62..GEN IKI |
1 | ||
| 81153-12010 |
KP6# KOITO |
1 | ||
| 81153-10021 |
KP6#..GEN IKI |
1 | ||
| Common parts | ||||
| 81131-12581 | ||||
| 81136-12571 | ||||
| 91651-40612 | ||||
