KP62L-PHKRS (1978)
Toyota Starlet
(7802-8005)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

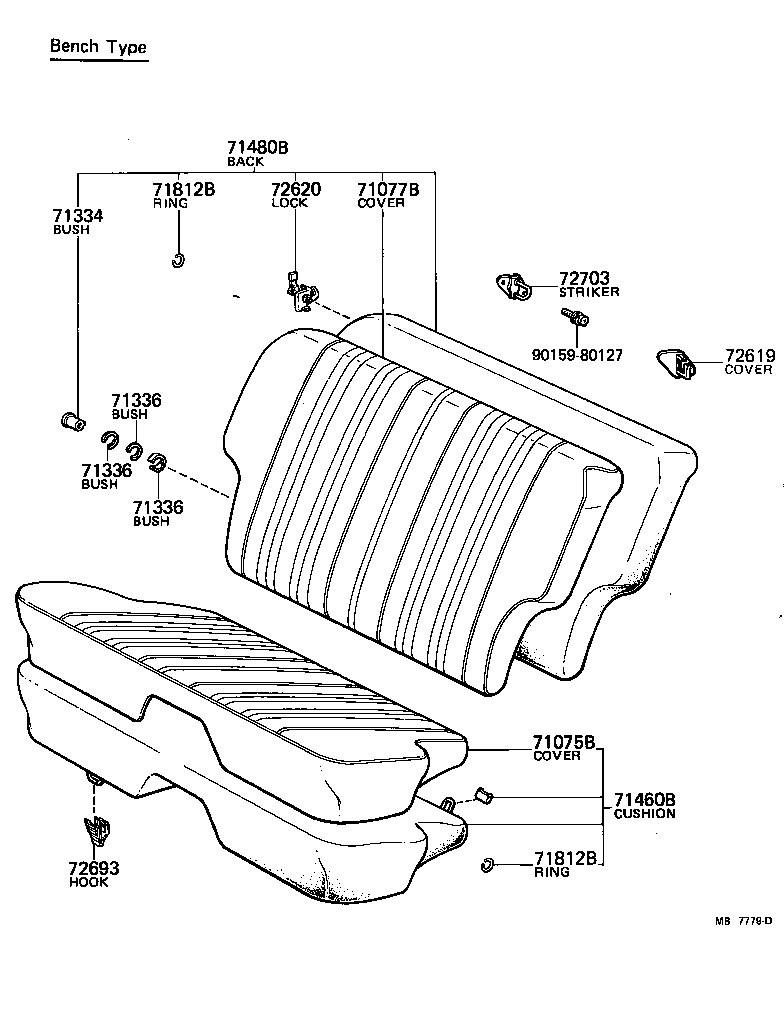

| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1029006 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1029004 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1034004 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1034001 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1029001 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1031001 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1031006 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1031004 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1034006 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1029106 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1029101 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1034106 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1034101 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1029204 |
KP60,62..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1029104 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1034104 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1029206 |
KP60,62..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1031104 |
KP6#..5D SEMI FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1031101 |
KP6#..5D SEMI FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1034204 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1031106 |
KP6#..5D SEMI FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1034201 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1034206 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1036101 |
KP6#..5D FULL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1036104 |
KP6#..5D FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1036106 |
KP6#..5D FULL FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1029201 |
KP60,62..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-1033001 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1038001 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1038004 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1033004 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1038006 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1033006 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1038104 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1041006 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1041004 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1038101 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1041106 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1038106 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1041101 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1041001 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1038204 |
KP60,62..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1046004 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1041104 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1046001 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1046006 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1038201 |
KP60,62..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1052004 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1038206 |
KP60,62..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1052001 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1052006 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71334 - BUSH, REAR SEAT BACK PIVOT | ||||
| 90386-13003 |
KP6#..SED BENCH SEAT |
2 | ||
| 90386-13005 |
KP6#..SED SEPARATE SEAT |
2 | ||
| 90386-13003 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN BENCH SEAT |
2 | ||
| 71336 - BUSH OR SPACER, REAR SEAT BACK HINGE | ||||
| 71332-10010 |
KP6#..SED T=8 |
2 | ||
| 71332-10010 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN T=8 |
2 | ||
| 71331-20030 |
KP6#..SED T=2 |
4 | ||
| 71331-20030 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN T=2 |
4 | ||
| 71336 - BUSH OR SPACER, REAR SEAT BACK HINGE | ||||
| 71332-10010 |
KP6#..SED T=8 |
2 | ||
| 71332-10010 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN T=8 |
2 | ||
| 71331-20030 |
KP6#..SED T=2 |
4 | ||
| 71331-20030 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN T=2 |
4 | ||
| 71336 - BUSH OR SPACER, REAR SEAT BACK HINGE | ||||
| 71332-10010 |
KP6#..SED T=8 |
2 | ||
| 71332-10010 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN T=8 |
2 | ||
| 71331-20030 |
KP6#..SED T=2 |
4 | ||
| 71331-20030 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN T=2 |
4 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1026001 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1026004 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1026006 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1031004 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1031001 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1031006 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1028004 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1028001 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1028006 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1026104 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1031104 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1031101 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1026101 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1031106 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1026106 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1026201 |
KP60,62..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1026206 |
KP60,62..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1028101 |
KP6#..5D SEMI FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1028104 |
KP6#..5D SEMI FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1026204 |
KP60,62..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1031206 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1028106 |
KP6#..5D SEMI FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1031204 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1032101 |
KP6#..5D FULL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1031201 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1032106 |
KP6#..5D FULL FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1032104 |
KP6#..5D FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-1036004 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1036006 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1039001 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1039004 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1039006 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1036001 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1042001 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1042006 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1042004 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1036101 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1036106 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1036104 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1039104 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1039101 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1039106 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1042106 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1036204 |
KP60,62..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1036206 |
KP60,62..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1042104 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1042101 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1036201 |
KP60,62..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1042204 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1042201 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1042206 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-30010 |
KP6#..SED |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-30010 |
KP6#..SED |
1 | ||
| 72620 - LOCK ASSY, REAR SEAT BACK | ||||
| 72630-10020 |
KP6#..SED RH |
1 | ||
| 72640-10010 |
KP6#..SED LH |
1 | ||
| 72630-10030 |
KP6#..SED RH |
1 | ||
| 72640-10020 |
KP6#..SED LH |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10020 |
KP6#..SED |
2 | ||
| 72693-10021 |
KP6#..SED |
2 | ||
| 72703 - STRIKER SUB-ASSY, REAR SEAT BACK STOPPER | ||||
| 72602-10010 |
KP6#..SED LH |
1 | ||
| 72601-10020 |
KP6#..SED RH |
1 | ||
| Common parts | ||||
| 90159-80127 | ||||
(7802-8005)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1029006 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1029004 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1034004 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1034001 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1029001 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1031001 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1031006 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1031004 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1034006 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1029106 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1029101 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1034106 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1034101 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1029204 |
KP60,62..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1029104 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1034104 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1029206 |
KP60,62..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1031104 |
KP6#..5D SEMI FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1031101 |
KP6#..5D SEMI FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1034204 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1031106 |
KP6#..5D SEMI FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1034201 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1034206 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1036101 |
KP6#..5D FULL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1036104 |
KP6#..5D FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1036106 |
KP6#..5D FULL FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1029201 |
KP60,62..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1034001 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1034004 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1034106 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1034006 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1034101 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1034104 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1036206 |
KP6#..5D FULL FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1034204 |
KP6#..5D SEMI FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1036201 |
KP6#..5D FULL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1036204 |
KP6#..5D FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1034201 |
KP6#..5D SEMI FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1034206 |
KP6#..5D SEMI FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1020006 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1020004 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1020001 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71078-1020101 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71078-1020106 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1020204 |
KP6#..5D SEMI FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1020104 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1020201 |
KP6#..5D SEMI FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71078-1020206 |
KP6#..5D SEMI FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1016201 |
KP6#..5D FULL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71078-1016206 |
KP6#..5D FULL FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1016204 |
KP6#..5D FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-10010 |
KP6#..SED |
1 | ||
| 71334 - BUSH, REAR SEAT BACK PIVOT | ||||
| 90386-13003 |
KP6#..SED BENCH SEAT |
2 | ||
| 90386-13005 |
KP6#..SED SEPARATE SEAT |
2 | ||
| 90386-13003 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN BENCH SEAT |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1026001 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1026004 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1026006 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1031004 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1031001 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1031006 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1028004 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1028001 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1028006 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1026104 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1031104 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1031101 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1026101 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1031106 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1026106 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1026201 |
KP60,62..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1026206 |
KP60,62..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1028101 |
KP6#..5D SEMI FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1028104 |
KP6#..5D SEMI FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1026204 |
KP60,62..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1031206 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1028106 |
KP6#..5D SEMI FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1031204 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1032101 |
KP6#..5D FULL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1031201 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1032106 |
KP6#..5D FULL FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1032104 |
KP6#..5D FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1033004 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1033001 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1033101 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1033106 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1033006 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1033204 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1033301 |
KP6#..5D SEMI FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1033201 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1033104 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1033206 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1035304 |
KP6#..5D FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1033304 |
KP6#..5D SEMI FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1035301 |
KP6#..5D FULL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1035306 |
KP6#..5D FULL FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1033306 |
KP6#..5D SEMI FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1020101 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71490-1020006 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1020106 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1020004 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1020001 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71490-1020104 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1020201 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71490-1020206 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1020306 |
KP6#..5D SEMI FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1020204 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1020301 |
KP6#..5D SEMI FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71490-1020304 |
KP6#..5D SEMI FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1016304 |
KP6#..5D FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1016301 |
KP6#..5D FULL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71490-1016306 |
KP6#..5D FULL FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-30010 |
KP6#..SED |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-30010 |
KP6#..SED |
1 | ||
| 72620 - LOCK ASSY, REAR SEAT BACK | ||||
| 72630-10020 |
KP6#..SED RH |
1 | ||
| 72640-10010 |
KP6#..SED LH |
1 | ||
| 72630-10030 |
KP6#..SED RH |
1 | ||
| 72640-10020 |
KP6#..SED LH |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10020 |
KP6#..SED |
2 | ||
| 72693-10021 |
KP6#..SED |
2 | ||
| 72703 - STRIKER SUB-ASSY, REAR SEAT BACK STOPPER | ||||
| 72602-10010 |
KP6#..SED LH |
1 | ||
| 72601-10020 |
KP6#..SED RH |
1 | ||
| Common parts | ||||
| 90159-60050 | ||||
| 90159-80127 | ||||
| 91615-40616 | ||||
(8005-8208)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1029006 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1029004 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1034004 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1034001 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1029001 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1031001 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1031006 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1031004 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1034006 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1029106 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1029101 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1034106 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1034101 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1029204 |
KP60,62..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1029104 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1034104 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1029206 |
KP60,62..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1031104 |
KP6#..5D SEMI FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1031101 |
KP6#..5D SEMI FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1034204 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1031106 |
KP6#..5D SEMI FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1034201 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1034206 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1036101 |
KP6#..5D FULL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71075-1036104 |
KP6#..5D FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71075-1036106 |
KP6#..5D FULL FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1029201 |
KP60,62..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-1033001 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1038001 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1038004 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1033004 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1038006 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1033006 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1038104 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1041006 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1041004 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1038101 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1041106 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1038106 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1041101 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1041001 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1038204 |
KP60,62..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1046004 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1041104 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1046001 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1046006 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1038201 |
KP60,62..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1052004 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1038206 |
KP60,62..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1052001 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1052006 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1034001 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1034004 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1034106 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1034006 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1034101 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1034104 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1036206 |
KP6#..5D FULL FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1034204 |
KP6#..5D SEMI FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1036201 |
KP6#..5D FULL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1036204 |
KP6#..5D FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71077-1034201 |
KP6#..5D SEMI FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71077-1034206 |
KP6#..5D SEMI FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1020006 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1020004 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1020001 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71078-1020101 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71078-1020106 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1020204 |
KP6#..5D SEMI FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1020104 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71078-1020201 |
KP6#..5D SEMI FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71078-1020206 |
KP6#..5D SEMI FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1016201 |
KP6#..5D FULL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71078-1016206 |
KP6#..5D FULL FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1016204 |
KP6#..5D FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71258 - PANEL SUB-ASSY, REAR SEAT BACK | ||||
| 71202-10041 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-10010 |
KP6#..SED |
1 | ||
| 71334 - BUSH, REAR SEAT BACK PIVOT | ||||
| 90386-13003 |
KP6#..SED BENCH SEAT |
2 | ||
| 90386-13005 |
KP6#..SED SEPARATE SEAT |
2 | ||
| 90386-13003 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN BENCH SEAT |
2 | ||
| 71336 - BUSH OR SPACER, REAR SEAT BACK HINGE | ||||
| 71332-10010 |
KP6#..SED T=8 |
2 | ||
| 71332-10010 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN T=8 |
2 | ||
| 71331-20030 |
KP6#..SED T=2 |
4 | ||
| 71331-20030 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN T=2 |
4 | ||
| 71336 - BUSH OR SPACER, REAR SEAT BACK HINGE | ||||
| 71332-10010 |
KP6#..SED T=8 |
2 | ||
| 71332-10010 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN T=8 |
2 | ||
| 71331-20030 |
KP6#..SED T=2 |
4 | ||
| 71331-20030 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN T=2 |
4 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1026001 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1026004 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1026006 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1031004 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1031001 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1031006 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1028004 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1028001 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1028006 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1026104 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1031104 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1031101 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1026101 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1031106 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1026106 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1026201 |
KP60,62..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1026206 |
KP60,62..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1028101 |
KP6#..5D SEMI FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1028104 |
KP6#..5D SEMI FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1026204 |
KP60,62..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1031206 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1028106 |
KP6#..5D SEMI FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1031204 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71460-1032101 |
KP6#..5D FULL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1031201 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71460-1032106 |
KP6#..5D FULL FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1032104 |
KP6#..5D FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-1036004 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1036006 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1039001 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1039004 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1039006 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1036001 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1042001 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1042006 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1042004 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1036101 |
KP6#..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1036106 |
KP6#..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1036104 |
KP6#..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1039104 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1039101 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1039106 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1042106 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1036204 |
KP60,62..5D..GEN VL,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1036206 |
KP60,62..5D..GEN VL,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1042104 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1042101 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1036201 |
KP60,62..5D..GEN VL,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1042204 |
KP6#..5D PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1042201 |
KP6#..5D PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1042206 |
KP6#..5D PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480P - PANEL SUB-ASSY, REAR SEAT BACK | ||||
| 71202-10032 |
KP6#..SED RH |
1 | ||
| 71203-10032 |
KP6#..SED LH |
1 | ||
| 71480P - PANEL SUB-ASSY, REAR SEAT BACK | ||||
| 71202-10032 |
KP6#..SED RH |
1 | ||
| 71203-10032 |
KP6#..SED LH |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1033004 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1033001 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1033101 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1033106 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1033006 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1033204 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1033301 |
KP6#..5D SEMI FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1033201 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1033104 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1033206 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1035304 |
KP6#..5D FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1033304 |
KP6#..5D SEMI FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71480-1035301 |
KP6#..5D FULL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71480-1035306 |
KP6#..5D FULL FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1033306 |
KP6#..5D SEMI FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1020101 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71490-1020006 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1020106 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1020004 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1020001 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71490-1020104 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1020201 |
KP6#..5D FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71490-1020206 |
KP6#..5D FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1020306 |
KP6#..5D SEMI FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1020204 |
KP6#..5D FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1020301 |
KP6#..5D SEMI FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71490-1020304 |
KP6#..5D SEMI FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1016304 |
KP6#..5D FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71490-1016301 |
KP6#..5D FULL FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71490-1016306 |
KP6#..5D FULL FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-10041 |
KP6#..5D |
1 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-10010 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN BENCH SEAT,L=1070 |
1 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-10010 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN BENCH SEAT,L=1070 |
1 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-10010 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN BENCH SEAT,L=1070 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-30010 |
KP6#..SED |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 71812-30010 |
KP6#..SED |
1 | ||
| 72620 - LOCK ASSY, REAR SEAT BACK | ||||
| 72630-10020 |
KP6#..SED RH |
1 | ||
| 72640-10010 |
KP6#..SED LH |
1 | ||
| 72630-10030 |
KP6#..SED RH |
1 | ||
| 72640-10020 |
KP6#..SED LH |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-1001004 |
KP6#..SED BLUE,BLUE,TRIM8# |
1 | ||
| 72665-1001001 |
KP6#..SED BLACK,BLACK,TRIM2# |
1 | ||
| 72665-1001006 |
KP6#..SED LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-1001001 |
KP6#..SED BLACK,BLACK,TRIM2# |
1 | ||
| 72666-1001006 |
KP6#..SED LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72666-1001004 |
KP6#..SED BLUE,BLUE,TRIM8# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-10020 |
KP6#..SED |
2 | ||
| 72693-10021 |
KP6#..SED |
2 | ||
| 72703 - STRIKER SUB-ASSY, REAR SEAT BACK STOPPER | ||||
| 72602-10010 |
KP6#..SED LH |
1 | ||
| 72601-10020 |
KP6#..SED RH |
1 | ||
| Common parts | ||||
| 71628-10010 | ||||
| 90159-80127 | ||||
| 91615-40616 | ||||
| 91651-40614 | ||||

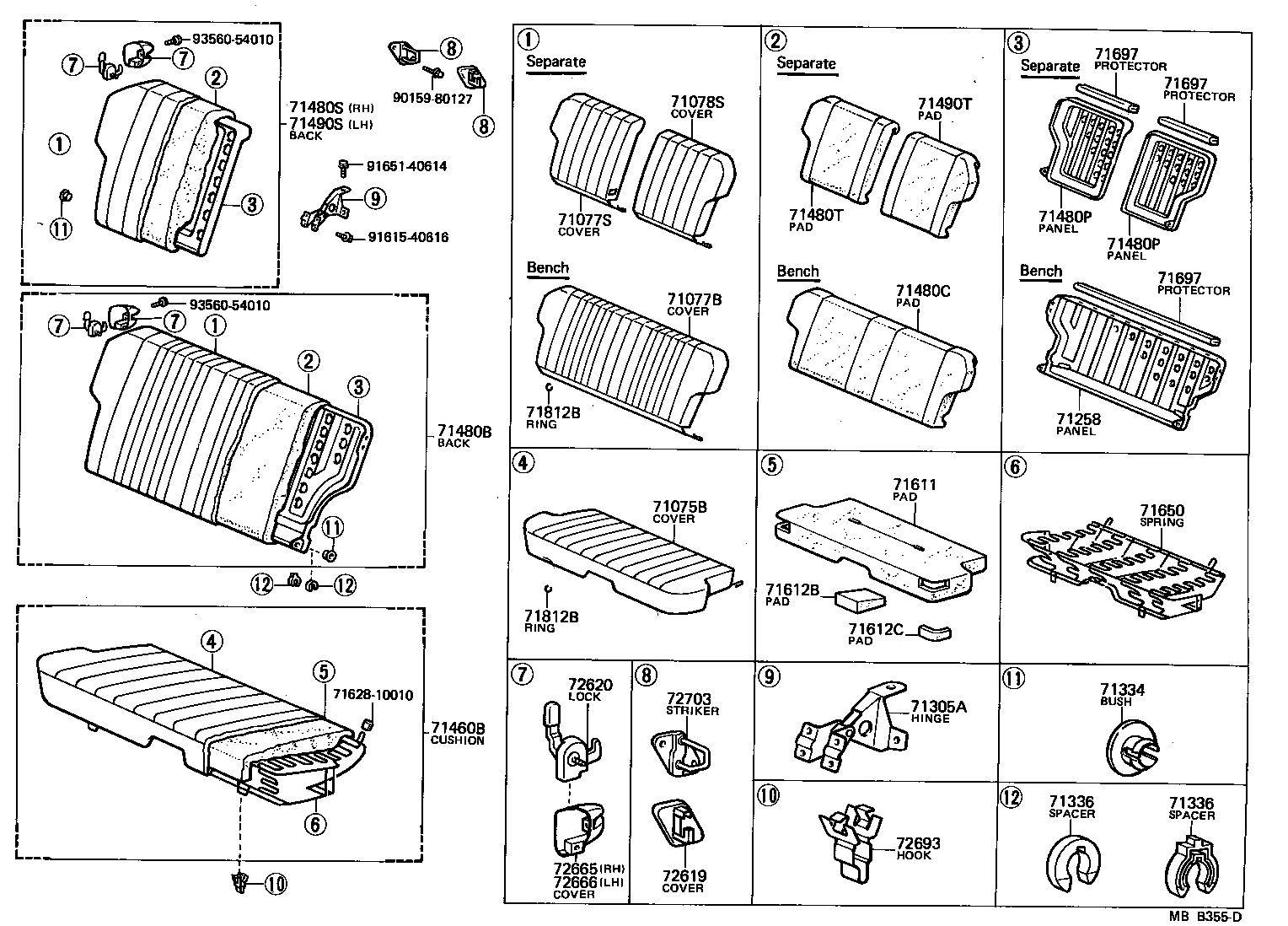

| 93560-54010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
