KP62L-PHKRS (1978)

Toyota Starlet

Production Oct 1978 - Aug 1982
Engine 3KH
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

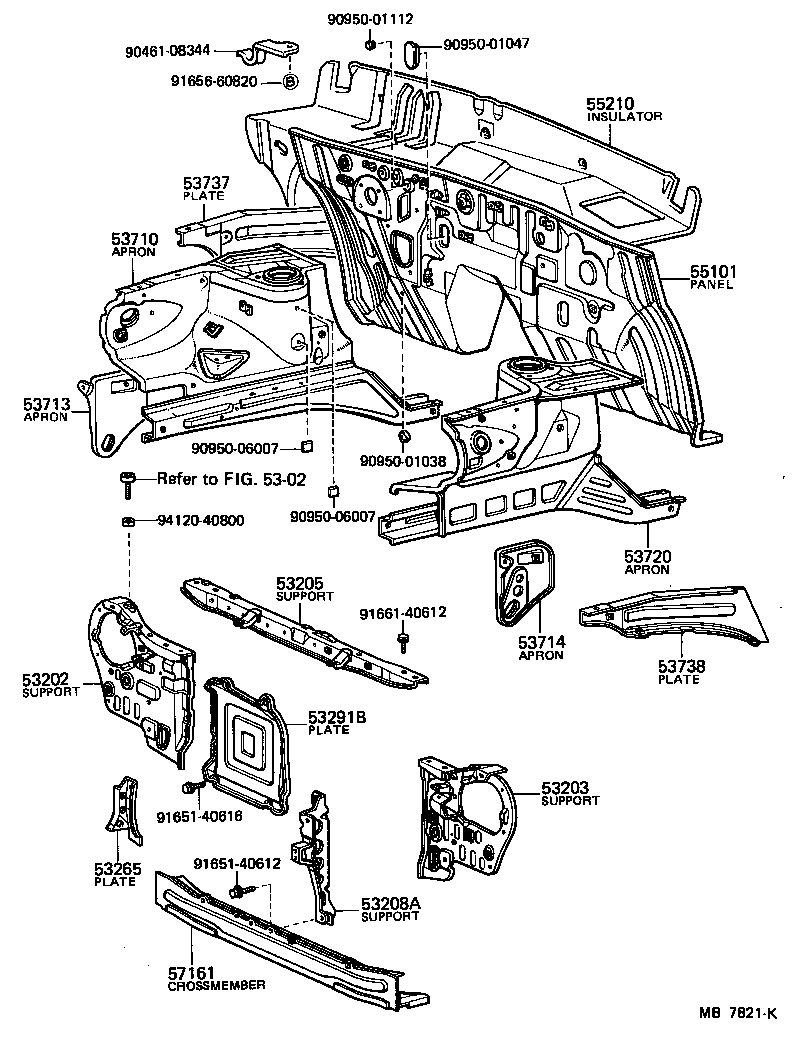

(7802-8005)

Click highlighted areas on diagram

diagram 5302 53202 53203 53205 53208A 53265 53291B 53710 53713 53714 53720 53737 53738 55101 55210 57161 9046108344 9095001038 9095001047 9095001112 9095006007 9095006007 9165140612 9165140616 9165660820 9166140612 9412040800
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-10050

KP6#

 1
53202-10051

KP6#

 1
53202-10052

KP6#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-10071

KP6#

 1
53203-10070

KP6#

 1
53203-10072

KP60,62

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-10040

KP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG

 1
53205-10100

KP60..LHD;KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN

W/O HEADLAMP CLEANER

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-10010

KP6#

 1
53208-10011

KP6#

 1
53265 - PLATE, BATTERY CARRIER MOUNTING, NO.2
53265-10010

KP6#

 1
53291B - PLATE, RADIATOR COVER
53291-10010

KP6#

 1
53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH
53701-10140

KP62..EUR;KP62..LHD..GEN

W/COOLER

 1
53701-10121

KP6#

 1
53701-10141

KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN

W/COOLER

 1
53701-10200

KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN

W/COOLER

 1
53701-10230

KP62..LHD;KP61..LHD..EUG

W/COOLER

 1
53701-10130

KP6#

 1
53701-10220

KP6#

 1
53701-10190

KP6#

 1
53713 - APRON, FENDER SIDE, RH
53707-10010

KP6#

 1
53707-10011

KP6#

 1
53714 - APRON, FENDER SIDE, LH
53708-10010

KP6#

 1
53708-10011

KP6#

 1
53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH
53702-10181

KP6#..LHD

 1
53702-10230

KP6#..LHD

 1
53702-10240

KP60,62

 1
53702-10180

KP6#

 1
53702-10260

KP60,62..LHD

 1
53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53737-10050

KP6#..SED

 1
53737-10040

KP6#

 1
53737-10041

KP6#

 1
53737-10030

KP6#

 1
53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53738-10060

KP6#..SED

 1
53738-10030

KP6#

 1
53738-10050

KP6#

 1
55101 - PANEL SUB-ASSY, DASH
55101-10201

KP6#..LHD

 1
55101-10200

KP6#..LHD

 1
55101-10203

KP6#..LHD..MTM

 1
55101-10202

KP6#..LHD

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-10020

KP6#..LHD

W/HEATER

 1
55210-10040

KP60,62..LHD..GEN

W/O HEATER

 1
57161 - CROSSMEMBER, FRONT
57104-10041

KP6#

 1
57104-10040

KP6#

 1
Common parts
90461-08344
90950-01038
90950-01047
90950-01112
90950-06007
91651-40612
91651-40616
91656-60820
91661-40612
94120-40800
Linked diagrams
5302

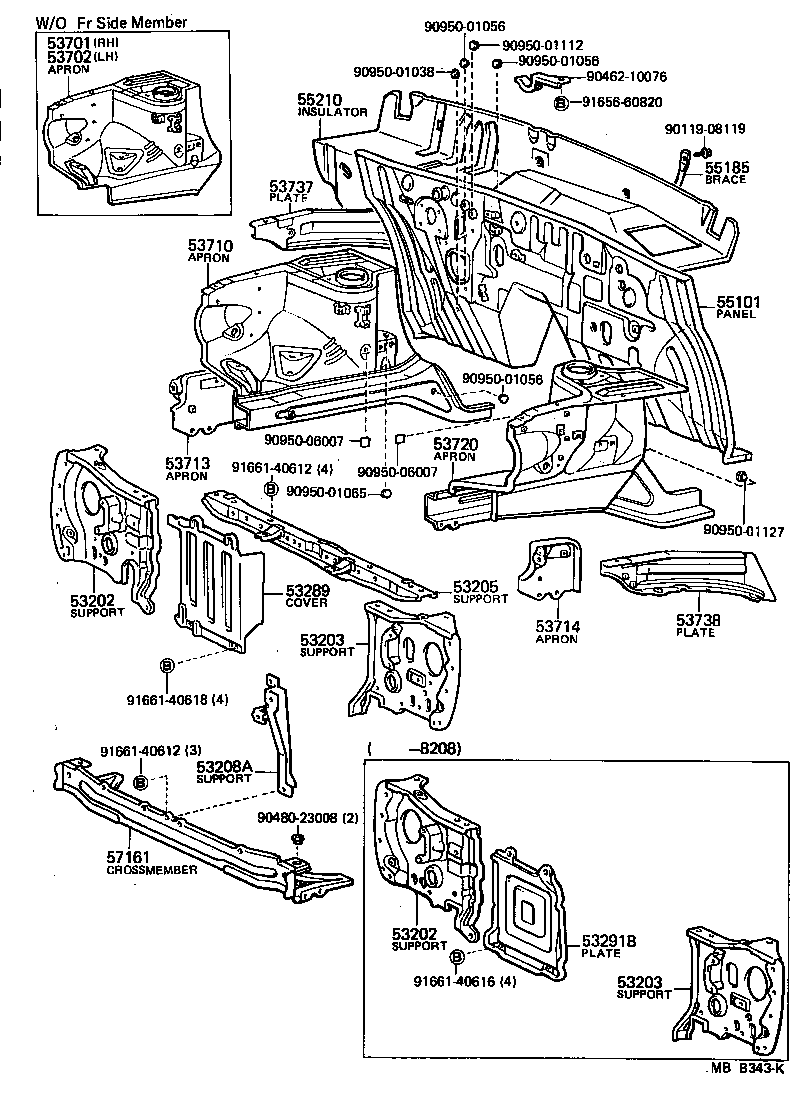

(8005- )

Click highlighted areas on diagram

diagram 53202 53202 53203 53203 53205 53208A 53289 53291B 53701 53702 53710 53713 53714 53720 53737 53738 55101 55185 55210 57161 9011908119 9046210076 9048023008 9095001038 9095001056 9095001056 9095001056 9095001065 9095001112 9095001127 9095006007 9095006007 9165660820 9166140612 9166140612 9166140616 9166140618
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-10050

KP6#

 1
53202-10051

KP6#

 1
53202-10052

KP6#

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-10050

KP6#

 1
53202-10051

KP6#

 1
53202-10052

KP6#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-10071

KP6#

 1
53203-10070

KP6#

 1
53203-10072

KP60,62

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-10071

KP6#

 1
53203-10070

KP6#

 1
53203-10072

KP60,62

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-10040

KP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG

 1
53205-10100

KP60..LHD;KP62..LHD..5F;KP62..4F..EUG;KP61..LHD..EUG;KP62..LHD..4F..GEN

W/O HEADLAMP CLEANER

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-10010

KP6#

 1
53208-10011

KP6#

 1
53291B - PLATE, RADIATOR COVER
53291-10010

KP6#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-10900

KP6#

 1
53701-10904

KP6#

 1
53701-10905

KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN

W/COOLER

 1
53701-10901

KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN

W/COOLER

 1
53701-10900

KP6#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-10901

KP6#..LHD

 1
53702-10909

KP60,62

 1
53702-10910

KP6#..LHD

 1
53702-10904

KP6#..LHD

 1
53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH
53701-10140

KP62..EUR;KP62..LHD..GEN

W/COOLER

 1
53701-10121

KP6#

 1
53701-10141

KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN

W/COOLER

 1
53701-10200

KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN

W/COOLER

 1
53701-10230

KP62..LHD;KP61..LHD..EUG

W/COOLER

 1
53701-10130

KP6#

 1
53701-10220

KP6#

 1
53701-10190

KP6#

 1
53713 - APRON, FENDER SIDE, RH
53707-10010

KP6#

 1
53707-10011

KP6#

 1
53714 - APRON, FENDER SIDE, LH
53708-10010

KP6#

 1
53708-10011

KP6#

 1
53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH
53702-10181

KP6#..LHD

 1
53702-10230

KP6#..LHD

 1
53702-10240

KP60,62

 1
53702-10180

KP6#

 1
53702-10260

KP60,62..LHD

 1
53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53737-10050

KP6#..SED

 1
53737-10040

KP6#

 1
53737-10041

KP6#

 1
53737-10030

KP6#

 1
53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53738-10060

KP6#..SED

 1
53738-10030

KP6#

 1
53738-10050

KP6#

 1
55101 - PANEL SUB-ASSY, DASH
55101-10201

KP6#..LHD

 1
55101-10200

KP6#..LHD

 1
55101-10203

KP6#..LHD..MTM

 1
55101-10202

KP6#..LHD

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-10020

KP6#..LHD

W/HEATER

 1
55210-10040

KP60,62..LHD..GEN

W/O HEATER

 1
57161 - CROSSMEMBER, FRONT
57104-10041

KP6#

 1
57104-10040

KP6#

 1
Common parts
90119-08119
90462-10076
90480-23008
90950-01038
90950-01056
90950-01065
90950-01112
90950-01127
90950-06007
91656-60820
91661-40612
91661-40616
91661-40618
