KP62L-PHKRS (1978)
Toyota Starlet
(7802-8208)KP60 ; (7802-8208)KP61..EUG ; (7802-8208)KP62..RHD ; (7802-8208)KP62..LH

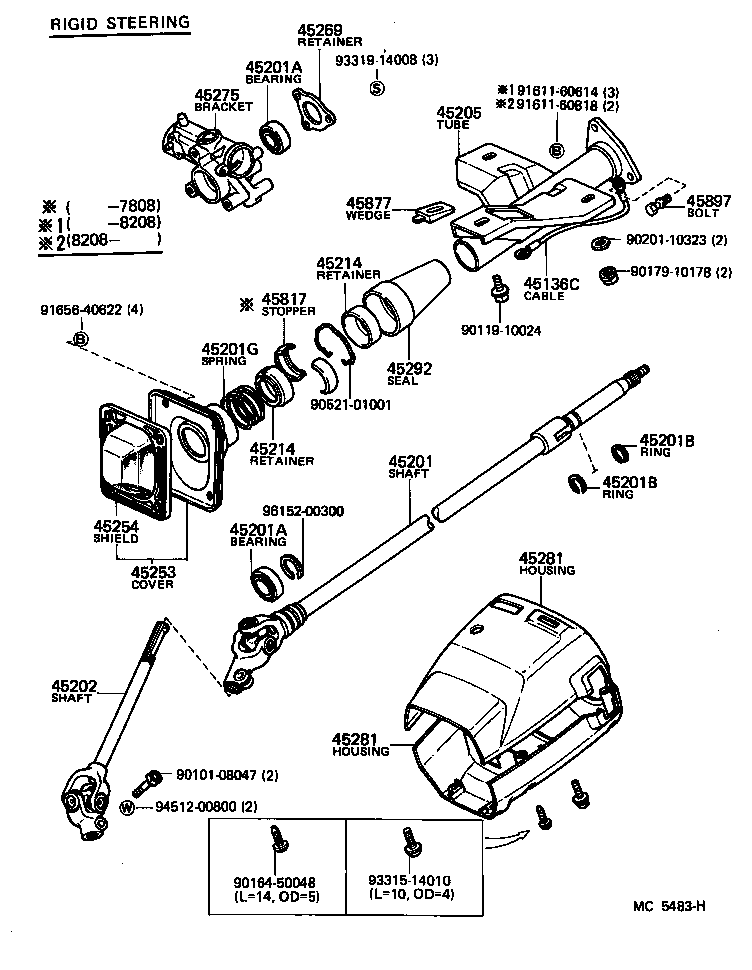

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45136C - CABLE, BOND(FOR HORN EARTH) | ||||
| 90980-07129 |
KP6# |
1 | ||
| 90980-07129 |
KP6# |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-10030 |
KP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG RIGID STEERING |
1 | ||
| 45210-10030 |
KP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG RIGID STEERING |
1 | ||
| 45210-10020 |
KP6# COLLAPSIBLE STEERING |
1 | ||
| 45210-10020 |
KP6# COLLAPSIBLE STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
KP6# UPR |
1 | ||
| 90363-18038 |
KP6# UPR |
1 | ||
| 90363-30007 |
KP6# LWR |
1 | ||
| 90363-30007 |
KP6# LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
KP6# UPR |
1 | ||
| 90363-18038 |
KP6# UPR |
1 | ||
| 90363-30007 |
KP6# LWR |
1 | ||
| 90363-30007 |
KP6# LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
KP6# T=1.35-1.45,T=1.35-1.45 |
2 | ||
| 90520-17196 |
KP6# T=1.35-1.45,T=1.35-1.45 |
2 | ||
| 90520-17042 |
KP6# T=1.20,T=1.15-1.25 |
2 | ||
| 90520-17042 |
KP6# T=1.20,T=1.15-1.25 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
KP6# T=1.35-1.45,T=1.35-1.45 |
2 | ||
| 90520-17196 |
KP6# T=1.35-1.45,T=1.35-1.45 |
2 | ||
| 90520-17042 |
KP6# T=1.20,T=1.15-1.25 |
2 | ||
| 90520-17042 |
KP6# T=1.20,T=1.15-1.25 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-32003 |
KP6# |
1 | ||
| 90501-32003 |
KP6# |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45202-10030 |
KP62..LHD..5F;KP61..LHD..5F..GEN;KP61..LHD..3D..GEN;KP61..LHD..5F..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG;KP61..LHD..(4D,5D)..(3FC,4F);KP61..LHD..3D..(3FC,4F)..EUG |
1 | ||
| 45202-10030 |
KP62..LHD..5F;KP61..LHD..5F..GEN;KP61..LHD..3D..GEN;KP61..LHD..5F..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG;KP61..LHD..(4D,5D)..(3FC,4F);KP61..LHD..3D..(3FC,4F)..EUG |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-10040 |
KP6#..LHD W/COLLAPSIBLE STEERING |
1 | ||
| 45205-10040 |
KP6#..LHD W/COLLAPSIBLE STEERING |
1 | ||
| 45205-10060 |
KP60..LHD;KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG W/RIGID STEERING |
1 | ||
| 45205-10060 |
KP60..LHD;KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG W/RIGID STEERING |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
KP6# |
2 | ||
| 45214-10010 |
KP6# |
2 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
KP6# |
2 | ||
| 45214-10010 |
KP6# |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-10020 |
KP6#..LHD |
1 | ||
| 45025-10020 |
KP6#..LHD |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-10021 |
KP6#..LHD |
1 | ||
| 45254-10021 |
KP6#..LHD |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-10010 |
KP6# |
1 | ||
| 45269-10010 |
KP6# |
1 | ||
| 45269-35010 |
KP6# |
1 | ||
| 45269-35010 |
KP6# |
1 | ||
| 45269-35010 |
KP6# |
1 | ||
| 45269-35010 |
KP6# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45275-10030 |
KP6#..LHD |
1 | ||
| 45275-10030 |
KP6#..LHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1005005 |
KP6#..LHD UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1005005 |
KP6#..LHD UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1005001 |
KP6#..LHD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1005001 |
KP6#..LHD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-1005005 |
KP6#..LHD LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1005005 |
KP6#..LHD LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1005001 |
KP6#..LHD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-1005001 |
KP6#..LHD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1005004 |
KP6#..LHD UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1005004 |
KP6#..LHD UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1005006 |
KP6#..LHD LWR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1005006 |
KP6#..LHD LWR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1005004 |
KP6#..LHD LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1005004 |
KP6#..LHD LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1005006 |
KP6#..LHD UPR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1005006 |
KP6#..LHD UPR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1005005 |
KP6#..LHD UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1005005 |
KP6#..LHD UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1005001 |
KP6#..LHD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1005001 |
KP6#..LHD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-1005005 |
KP6#..LHD LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1005005 |
KP6#..LHD LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1005001 |
KP6#..LHD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-1005001 |
KP6#..LHD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1005004 |
KP6#..LHD UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1005004 |
KP6#..LHD UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1005006 |
KP6#..LHD LWR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1005006 |
KP6#..LHD LWR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1005004 |
KP6#..LHD LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1005004 |
KP6#..LHD LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1005006 |
KP6#..LHD UPR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1005006 |
KP6#..LHD UPR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-10010 |
KP6# |
1 | ||
| 45292-10010 |
KP6# |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-10011 |
KP6# |
2 | ||
| 45817-10011 |
KP6# |
2 | ||
| 45877 - WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING) | ||||
| 45877-12010 |
KP6# |
1 | ||
| 45877-12010 |
KP6# |
1 | ||
| Common parts | ||||
| 90101-08047 | ||||
| 90119-10024 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 90521-01001 | ||||
| 91611-60614 | ||||
| 91611-60818 | ||||
| 91656-40622 | ||||
| 93315-14010 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||
| 96152-00300 | ||||
(7802-8208)KP62..LHD..4F..EUG ; (8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45136C - CABLE, BOND(FOR HORN EARTH) | ||||
| 90980-07129 |
KP6# |
1 | ||
| 90980-07129 |
KP6# |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-10030 |
KP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG RIGID STEERING |
1 | ||
| 45210-10030 |
KP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG RIGID STEERING |
1 | ||
| 45210-10020 |
KP6# COLLAPSIBLE STEERING |
1 | ||
| 45210-10020 |
KP6# COLLAPSIBLE STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
KP6# UPR |
1 | ||
| 90363-18038 |
KP6# UPR |
1 | ||
| 90363-30007 |
KP6# LWR |
1 | ||
| 90363-30007 |
KP6# LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
KP6# UPR |
1 | ||
| 90363-18038 |
KP6# UPR |
1 | ||
| 90363-30007 |
KP6# LWR |
1 | ||
| 90363-30007 |
KP6# LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
KP6# T=1.35-1.45,T=1.35-1.45 |
2 | ||
| 90520-17196 |
KP6# T=1.35-1.45,T=1.35-1.45 |
2 | ||
| 90520-17042 |
KP6# T=1.20,T=1.15-1.25 |
2 | ||
| 90520-17042 |
KP6# T=1.20,T=1.15-1.25 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
KP6# T=1.35-1.45,T=1.35-1.45 |
2 | ||
| 90520-17196 |
KP6# T=1.35-1.45,T=1.35-1.45 |
2 | ||
| 90520-17042 |
KP6# T=1.20,T=1.15-1.25 |
2 | ||
| 90520-17042 |
KP6# T=1.20,T=1.15-1.25 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-32003 |
KP6# |
1 | ||
| 90501-32003 |
KP6# |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45202-10030 |
KP62..LHD..5F;KP61..LHD..5F..GEN;KP61..LHD..3D..GEN;KP61..LHD..5F..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG;KP61..LHD..(4D,5D)..(3FC,4F);KP61..LHD..3D..(3FC,4F)..EUG |
1 | ||
| 45202-10030 |
KP62..LHD..5F;KP61..LHD..5F..GEN;KP61..LHD..3D..GEN;KP61..LHD..5F..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG;KP61..LHD..(4D,5D)..(3FC,4F);KP61..LHD..3D..(3FC,4F)..EUG |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-10040 |
KP6#..LHD W/COLLAPSIBLE STEERING |
1 | ||
| 45205-10040 |
KP6#..LHD W/COLLAPSIBLE STEERING |
1 | ||
| 45205-10060 |
KP60..LHD;KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG W/RIGID STEERING |
1 | ||
| 45205-10060 |
KP60..LHD;KP62..LHD..5F;KP61..LHD..EUG;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG W/RIGID STEERING |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
KP6# |
2 | ||
| 45214-10010 |
KP6# |
2 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
KP6# |
2 | ||
| 45214-10010 |
KP6# |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-10020 |
KP6#..LHD |
1 | ||
| 45025-10020 |
KP6#..LHD |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-10021 |
KP6#..LHD |
1 | ||
| 45254-10021 |
KP6#..LHD |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-10010 |
KP6# |
1 | ||
| 45269-10010 |
KP6# |
1 | ||
| 45269-35010 |
KP6# |
1 | ||
| 45269-35010 |
KP6# |
1 | ||
| 45269-35010 |
KP6# |
1 | ||
| 45269-35010 |
KP6# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45275-10030 |
KP6#..LHD |
1 | ||
| 45275-10030 |
KP6#..LHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1005005 |
KP6#..LHD UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1005005 |
KP6#..LHD UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1005001 |
KP6#..LHD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1005001 |
KP6#..LHD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-1005005 |
KP6#..LHD LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1005005 |
KP6#..LHD LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1005001 |
KP6#..LHD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-1005001 |
KP6#..LHD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1005004 |
KP6#..LHD UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1005004 |
KP6#..LHD UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1005006 |
KP6#..LHD LWR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1005006 |
KP6#..LHD LWR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1005004 |
KP6#..LHD LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1005004 |
KP6#..LHD LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1005006 |
KP6#..LHD UPR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1005006 |
KP6#..LHD UPR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1005005 |
KP6#..LHD UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1005005 |
KP6#..LHD UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1005001 |
KP6#..LHD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1005001 |
KP6#..LHD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-1005005 |
KP6#..LHD LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1005005 |
KP6#..LHD LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1005001 |
KP6#..LHD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-1005001 |
KP6#..LHD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1005004 |
KP6#..LHD UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1005004 |
KP6#..LHD UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1005006 |
KP6#..LHD LWR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1005006 |
KP6#..LHD LWR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1005004 |
KP6#..LHD LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1005004 |
KP6#..LHD LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1005006 |
KP6#..LHD UPR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1005006 |
KP6#..LHD UPR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-10010 |
KP6# |
1 | ||
| 45292-10010 |
KP6# |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-10011 |
KP6# |
2 | ||
| 45817-10011 |
KP6# |
2 | ||
| 45877 - WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING) | ||||
| 45877-12010 |
KP6# |
1 | ||
| 45877-12010 |
KP6# |
1 | ||
| Common parts | ||||
| 90101-08047 | ||||
| 90119-10024 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 90521-01001 | ||||
| 91611-60614 | ||||
| 91611-60818 | ||||
| 91656-40622 | ||||
| 93315-14010 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||
| 96152-00300 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
