KP62L-PHKRS (1978)

Toyota Starlet

Production Oct 1978 - Aug 1982
Engine 3KH
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7911- )

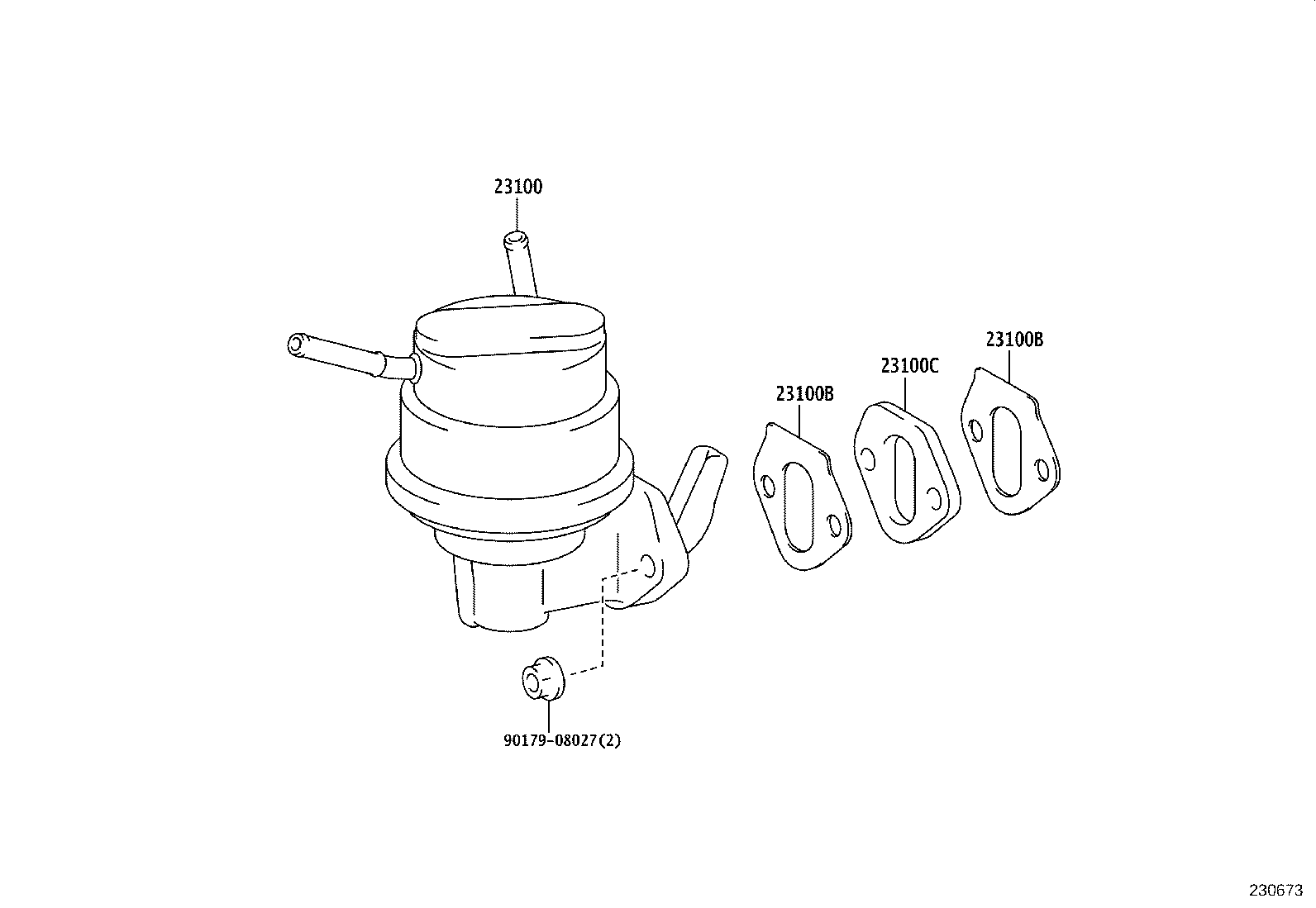

Click highlighted areas on diagram

diagram 23100 23100B 23100B 23100C 9017908027
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-19125

2K,3K#..KP6#

 1
23100-29085

2K,3K#..KP6#

 1
23100B - GASKET, FUEL PUMP
90923-05006

2K,3K#,4K#..KP6#

 2
23100B - GASKET, FUEL PUMP
90923-05006

2K,3K#,4K#..KP6#

 2
23100C - INSULATOR, FUEL PUMP
90923-06003

2K,3K#,4K#..KP6#

 1
Common parts
90179-08027

(7802-7911)

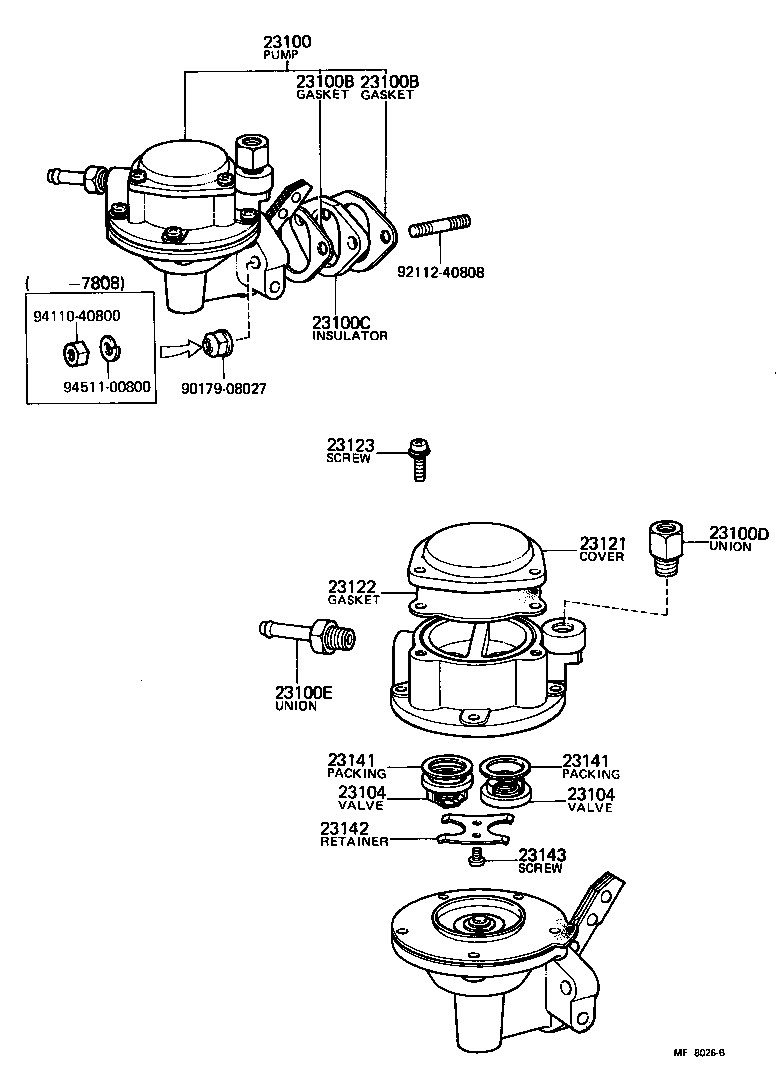

Click highlighted areas on diagram

diagram 23100 23100B 23100B 23100C 23100D 23100E 23104 23104 23121 23122 23123 23141 23141 23142 23143 9017908027 9211240808 9411040800 9451100800
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-19125

2K,3K#..KP6#

 1
23100-29085

2K,3K#..KP6#

 1
23100B - GASKET, FUEL PUMP
90923-05006

2K,3K#,4K#..KP6#

 2
23100B - GASKET, FUEL PUMP
90923-05006

2K,3K#,4K#..KP6#

 2
23100C - INSULATOR, FUEL PUMP
90923-06003

2K,3K#,4K#..KP6#

 1
23100D - UNION, NIPPLE(FOR FUEL OUTLET)
23116-24010

2K,3K#..KP6#

 1
23100E - UNION, NIPPLE(FOR FUEL INLET)
90404-51244

2K,3K#..KP6#

 1
23104 - VALVE SUB-ASSY
23104-40010

2K,3K#..KP6#

 2
23104 - VALVE SUB-ASSY
23104-40010

2K,3K#..KP6#

 2
23121 - COVER, FUEL PUMP
23121-24010

2K,3K#..KP6#

 1
23122 - GASKET, FUEL PUMP COVER
23122-24010

2K,3K#..KP6#

 1
23123 - SCREW, COVER SET, NO.1
23123-33011

2K,3K#..KP6#

 8
23141 - PACKING, VALVE
23141-60010

2K,3K#..KP6#

 2
23141 - PACKING, VALVE
23141-60010

2K,3K#..KP6#

 2
23142 - RETAINER, VALVE
23142-30020

2K,3K#..KP6#

 1
23143 - SCREW, VALVE RETAINER SET
23143-60021

2K,3K#..KP6#

 2
Common parts
90179-08027
92112-40808
94110-40800
94511-00800
