KP62L-PGMRSW (1978)

Toyota Starlet

Production Oct 1978 - Aug 1981
Engine 3KH
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802-8005)3D

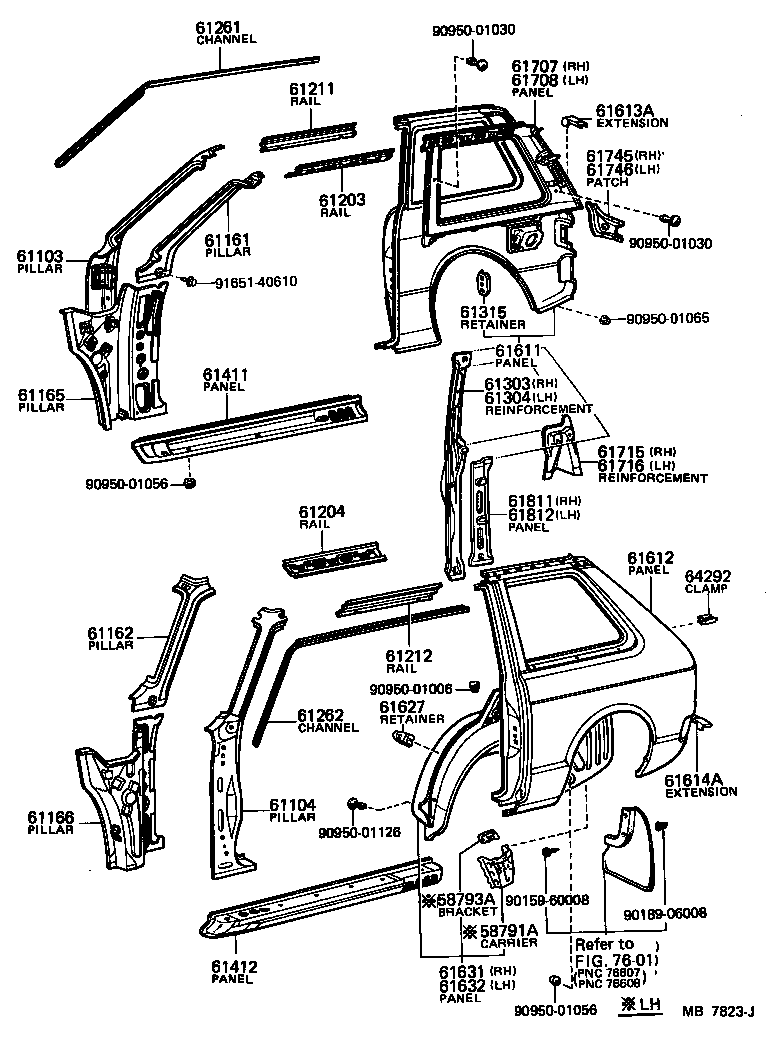

Click highlighted areas on diagram

diagram 58791A 58793A 61103 61104 61161 61162 61165 61166 61203 61204 61211 61212 61261 61262 61303 61304 61315 61411 61412 61611 61612 61613A 61614A 61627 61631 61632 61707 61708 61715 61716 61745 61746 61811 61812 64292 7601 9015960008 9018906008 9095001006 9095001030 9095001030 9095001056 9095001056 9095001065 9095001126 9165140610
Part # Description Qty Price
58791A - CARRIER, JACK
58791-10020

KP6#..SED

 1
58793A - BRACKET, JACK CARRIER
58793-10020

KP6#..SED

 1
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61027-10010

KP6#

 1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61028-10010

KP6#

 1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61161-10040

KP6#

 1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61162-10040

KP6#

 1
61165 - PILLAR, FRONT BODY LOWER INNER, RH
61023-10030

KP6#..LHD

 1
61166 - PILLAR, FRONT BODY LOWER INNER, LH
61024-10030

KP6#..LHD

 1
61024-10030

KP6#..SED..LHD

 1
61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH
61231-10040

KP6#..3D

 1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61231-10040

KP6#..3D

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-10040

KP6#..3D

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61211-10040

KP6#..3D

 1
61261 - CHANNEL, ROOF DRIP, RH
61261-10040

KP6#..SED

 1
61262 - CHANNEL, ROOF DRIP, LH
61262-10040

KP6#..SED

 1
61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61303-10040

KP6#..3D..EUR

 1
61303-10041

KP6#..3D..EUR

 1
61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH
61304-10031

KP6#..3D..EUR

 1
61304-10030

KP6#..3D..EUR

 1
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61309-10030

KP6#

 2
61411 - PANEL, ROCKER, OUTER RH
61401-10010

KP6#..3D..EUR

 1
61412 - PANEL, ROCKER, OUTER LH
61402-10010

KP6#..3D..EUR

 1
61611 - PANEL, QUARTER, RH
61601-10100

KP6#..3D

 1
61601-10071

KP6#..3D

 1
61601-10072

KP6#..3D

 1
61612 - PANEL, QUARTER, LH
61602-10061

KP6#..3D

 1
61602-10062

KP6#..3D

 1
61602-10090

KP6#..3D

 1
61613A - EXTENSION, QUARTER PANEL REAR, RH
61625-10010

KP6#..SED

 1
61614A - EXTENSION, QUARTER PANEL, REAR LH
61626-10010

KP6#..SED

 1
61627 - RETAINER, QUARTER TRIM, LOWER
61751-10060

KP6#..3D

 6
61631 - PANEL, QUARTER WHEEL HOUSE, RH
61607-10900

KP6#..SED

 1
61607-10901

KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN

 1
61632 - PANEL, QUARTER WHEEL HOUSE, LH
61608-10900

KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN

 1
61608-10908

KP6#..SED

 1
61707 - PANEL SUB-ASSY, QUARTER, INNER RH
61731-10901

KP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG

W/HINGE,*PT

 1
61731-10902

KP6#..3D

W/O HINGE,*PT

 1
61731-10900

KP6#..3D

W/HINGE,W/O *PT

 1
61731-10903

KP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG

W/O HINGE,W/*PT

 1
61708 - PANEL SUB-ASSY, QUARTER, INNER LH
61732-10902

KP6#..3D

W/O HINGE,*PT

 1
61732-10900

KP6#..3D

W/HINGE,W/O *PT

 1
61732-10901

KP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG

W/HINGE,*PT

 1
61732-10903

KP60..3D;KP62..RHD..3D;KP62..LHD..3D..5F;KP62..LHD..3D..4F..GEN;KP62..LHD..3D..4F..EUG

W/O HINGE,W/*PT

 1
61715 - REINFORCEMENT, ROOF SIDE, INNER REAR RH
61737-10020

KP6#..3D

 1
61716 - REINFORCEMENT, ROOF SIDE, INNER REAR LH
61738-10010

KP6#..3D

 1
61745 - PATCH, BACK DOOR OPENING, LOWER RH
61745-10010

KP6#..SED

 1
61746 - PATCH, BACK DOOR OPENING, LOWER LH
61746-10010

KP6#..SED

 1
61811 - PANEL, QUARTER INSIDE, FRONT RH
61613-10010

KP6#..3D

 1
61812 - PANEL, QUARTER INSIDE, FRONT LH
61614-10010

KP6#..3D

 1
64292 - CLAMP, JACK HANDLE
64292-10020

KP6#..SED

 3
Common parts
90159-60008
90189-06008
90950-01006
90950-01030
90950-01056
90950-01065
90950-01126
91651-40610
Linked diagrams
7601
