KP62L-PGKRCC (1978)
Toyota Starlet
Production
Jul 1978
-
Aug 1981
Engine
3KC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

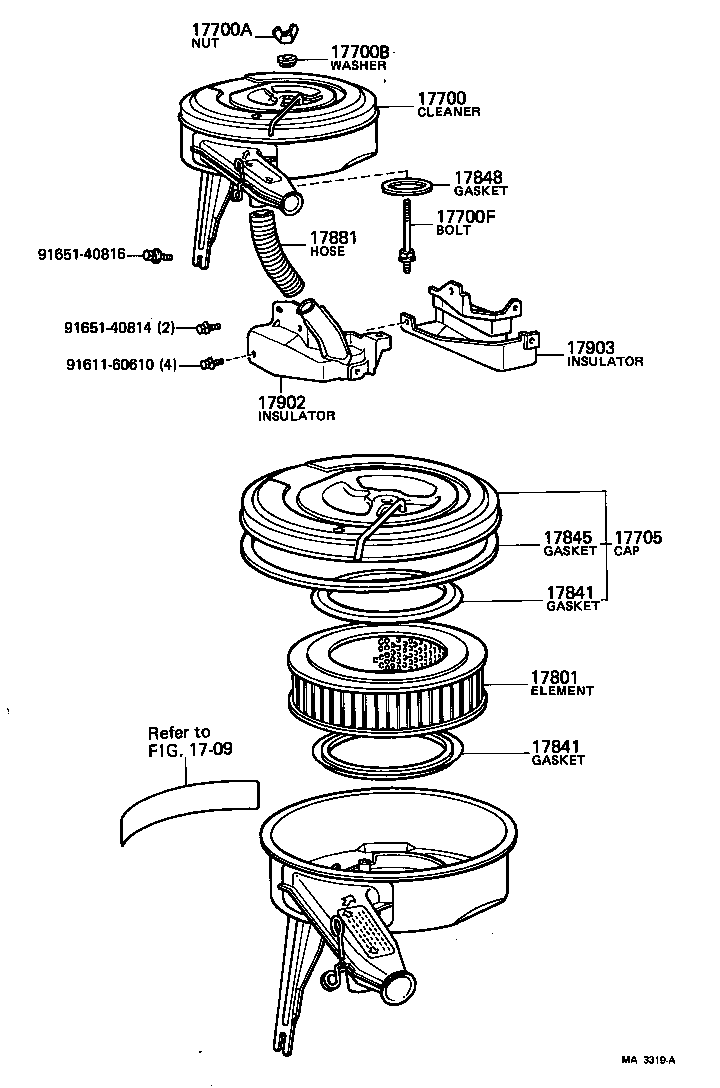

(7807-8102)3K# ; (8102-8208)3KH..GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-24560 |
3KC..KP62 |
1 | ||
| 17700-24561 |
3KC..KP62 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00600 |
2K,3K#..KP60,62 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-06023 |
2K,3K#..KP60,62 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06131 |
2K,3K#..KP60,62 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-24311 |
3KC..KP62 |
1 | ||
| 17705-24310 |
3KC..KP62 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-24010 |
2K,3K#..KP60,62 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-24020 |
2K,3K#..KP60,62 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-24020 |
2K,3K#..KP60,62 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-24010 |
2K,3K#..KP60,62 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63187 |
2K,3K#..KP60,62 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-13010 |
3K#..KP62..EUR |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17167-24020 |
3KC..KP62 |
1 | ||
| 17903 - INLET SUB-ASSY, HOT AIR INTAKE, NO.2 | ||||
| 17168-24020 |
3KC..KP62 |
1 | ||
| Common parts | ||||
| 91611-60610 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(8102-8108)3K#..EUR
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-13010 |
3K#..KP62..EUR |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-24560 |
3KC..KP62 |
1 | ||
| 17700-24561 |
3KC..KP62 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-24560 |
3KC..KP62 |
1 | ||
| 17700-24561 |
3KC..KP62 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00600 |
2K,3K#..KP60,62 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-06023 |
2K,3K#..KP60,62 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06131 |
2K,3K#..KP60,62 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-24311 |
3KC..KP62 |
1 | ||
| 17705-24310 |
3KC..KP62 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-24011 |
3K#..KP62..EUR |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
3K#..KP62..EUR |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-24010 |
2K,3K#..KP60,62 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-24020 |
2K,3K#..KP60,62 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-24020 |
2K,3K#..KP60,62 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-24010 |
2K,3K#..KP60,62 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63187 |
2K,3K#..KP60,62 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-13010 |
3K#..KP62..EUR |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17167-24020 |
3KC..KP62 |
1 | ||
| 17903 - INLET SUB-ASSY, HOT AIR INTAKE, NO.2 | ||||
| 17168-24020 |
3KC..KP62 |
1 | ||
| Common parts | ||||
| 91611-60610 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
