KP61R-PHMDS (1982)

Toyota Starlet

Production Aug 1982 - Sep 1984
Engine 4K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )RHD

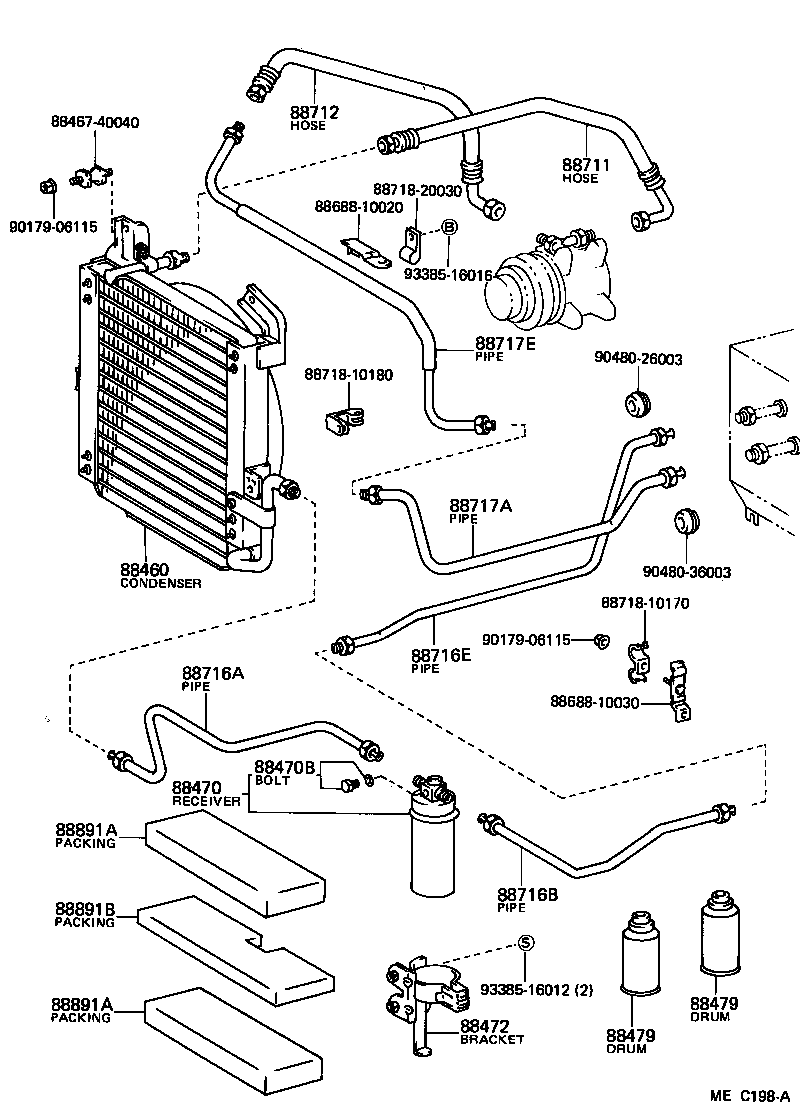

Click highlighted areas on diagram

diagram 88460 8846740040 88470 88470B 88472 88479 88479 8868810020 8868810030 88711 88712 88716A 88716B 88716E 88717A 88717E 8871810170 8871810180 8871820030 88891A 88891A 88891B 9017906115 9017906115 9048026003 9048036003 9338516012 9338516016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-10080

KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070

KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD

 1
88470B - BOLT, FUSE
90099-04579

KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-10120

KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD

400G

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD

400G

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-10070

KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-10060

KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-10330

KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-10340

KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-10350

KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-10150

KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD

 1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-10130

KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD

 1
88891A - PACKING A (FOR COOLER)
88578-10060

KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD

L=300

 1
88578-10070

KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD

L=270

 1
88891A - PACKING A (FOR COOLER)
88578-10060

KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD

L=300

 1
88578-10070

KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD

L=270

 1
88891B - PACKING B (FOR COOLER)
88578-10080

KP61..RHD..GEN;KP60..RHD..5D..DLX;KP60..SED..RHD..STD

 1
Common parts
88467-40040
88688-10020
88688-10030
88718-10170
88718-10180
88718-20030
90179-06115
90480-26003
90480-36003
93385-16012
93385-16016
