KP61R-PHHDS (1982)
Toyota Starlet
Production
Aug 1982
-
Sep 1984
Engine
4K
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )

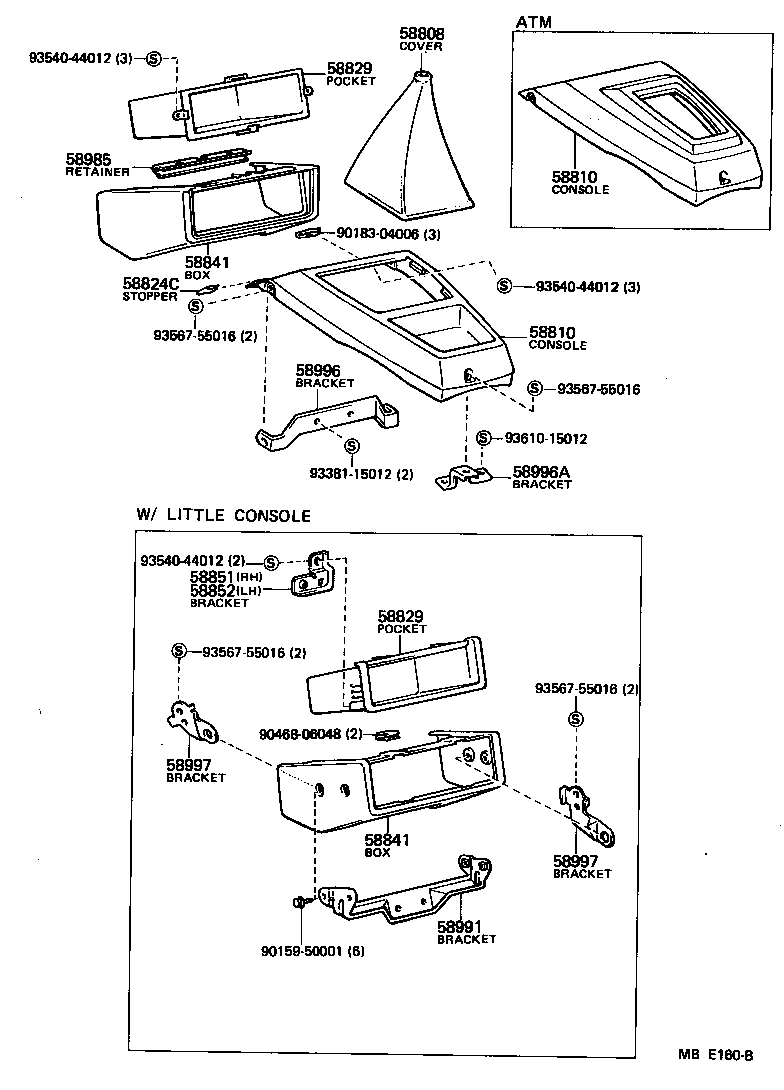

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58810 - CONSOLE ASSY | ||||
| 58812-1002006 |
KP61..3FC BROWN,BROWN,TRIM4# |
1 | ||
| 58812-1002002 |
KP61..3FC DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 58812-1002003 |
KP61..3FC GRAY,GRAY,TRIM1# |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58812-1002006 |
KP61..3FC BROWN,BROWN,TRIM4# |
1 | ||
| 58812-1002002 |
KP61..3FC DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 58812-1002003 |
KP61..3FC GRAY,GRAY,TRIM1# |
1 | ||
| 58824C - STOPPER, CONSOLE REAR PANEL, NO.2 | ||||
| 58937-10010 |
KP6#..DLX..GEN |
1 | ||
| 58829 - POCKET, CONSOLE BOX | ||||
| 58825-10040 |
KP6#..DLX..GEN |
1 | ||
| 58829 - POCKET, CONSOLE BOX | ||||
| 58825-10040 |
KP6#..DLX..GEN |
1 | ||
| 58841 - BOX, CONSOLE, UPPER | ||||
| 58813-1004002 |
KP6#..SED..DLX..GEN DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 58813-1004003 |
KP6#..DLX..GEN GRAY,GRAY,TRIM1# |
1 | ||
| 58813-1004006 |
KP6#..DLX..GEN BROWN,BROWN,TRIM4# |
1 | ||
| 58841 - BOX, CONSOLE, UPPER | ||||
| 58813-1004002 |
KP6#..SED..DLX..GEN DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 58813-1004003 |
KP6#..DLX..GEN GRAY,GRAY,TRIM1# |
1 | ||
| 58813-1004006 |
KP6#..DLX..GEN BROWN,BROWN,TRIM4# |
1 | ||
| 58985 - RETAINER, CONSOLE BOX | ||||
| 58985-10010 |
KP6#..DLX..GEN |
1 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-10020 |
KP6#..DLX..GEN |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-10020 |
KP6#..DLX..GEN |
1 | ||
| Common parts | ||||
| 90159-50001 | ||||
| 90183-04006 | ||||
| 90468-06048 | ||||
| 93381-15012 | ||||
| 93540-44012 | ||||
| 93567-55016 | ||||
| 93610-15012 | ||||
