KP61L-PHMDS (1982)

Toyota Starlet

Production Aug 1982 - Sep 1984
Engine 4K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

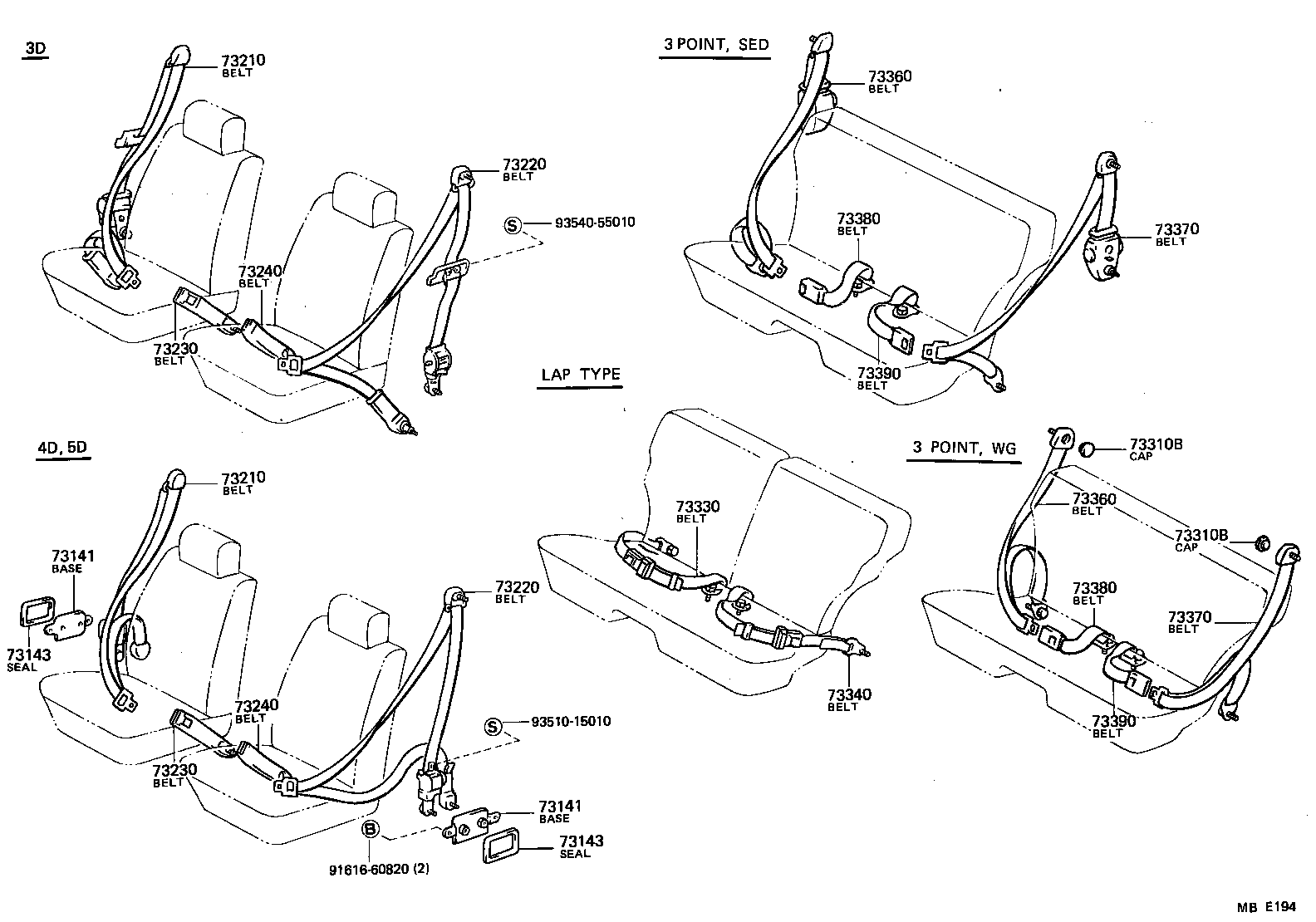

Click highlighted areas on diagram

diagram 73141 73141 73143 73143 73210 73210 73220 73220 73230 73230 73240 73240 73310B 73310B 73330 73340 73360 73360 73370 73370 73380 73380 73390 73390 9161660820 9351015010 9354055010
Part # Description Qty Price
73141 - BASE, FRONT SEAT BELT ANCHOR
73141-10010

KP6#..4D,5D

 2
73141-10010

KP6#..SED

 2
73141 - BASE, FRONT SEAT BELT ANCHOR
73141-10010

KP6#..4D,5D

 2
73141-10010

KP6#..SED

 2
73143 - SEAL, SEAT BELT HOLE
73143-10010

KP6#..SED

 2
73143-10010

KP6#..4D,5D

 2
73143 - SEAL, SEAT BELT HOLE
73143-10010

KP6#..SED

 2
73143-10010

KP6#..4D,5D

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1006004

KP6#..(4D,5D)..GEN

*NLR,BLUE,BLUE,TRIM8#

 1
73210-1006006

KP6#..(4D,5D)..GEN

*NLR,LIGHT BROWN,BROWN,TRIM4#

 1
73210-1006001

KP6#..(4D,5D)..GEN

*NLR,BLACK,BLACK,TRIM2#

 1
73210-1014103

KP6#..(4D,5D)..GEN

GRAY,GRAY,TRIM1#

 1
73210-1014136

KP6#..(4D,5D)..GEN

BROWN,BROWN,TRIM4#

 1
73210-1014102

KP6#..(4D,5D)..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73210-1014203

KP6#..(4D,5D)..GEN

GRAY,GRAY,TRIM1#

 1
73210-1014236

KP6#..(4D,5D)..GEN

BROWN,BROWN,TRIM4#

 1
73210-1014202

KP6#..(4D,5D)..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1006004

KP6#..(4D,5D)..GEN

*NLR,BLUE,BLUE,TRIM8#

 1
73210-1006006

KP6#..(4D,5D)..GEN

*NLR,LIGHT BROWN,BROWN,TRIM4#

 1
73210-1006001

KP6#..(4D,5D)..GEN

*NLR,BLACK,BLACK,TRIM2#

 1
73210-1014103

KP6#..(4D,5D)..GEN

GRAY,GRAY,TRIM1#

 1
73210-1014136

KP6#..(4D,5D)..GEN

BROWN,BROWN,TRIM4#

 1
73210-1014102

KP6#..(4D,5D)..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73210-1014203

KP6#..(4D,5D)..GEN

GRAY,GRAY,TRIM1#

 1
73210-1014236

KP6#..(4D,5D)..GEN

BROWN,BROWN,TRIM4#

 1
73210-1014202

KP6#..(4D,5D)..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-1002006

KP6#..(4D,5D)..GEN

*NLR,LIGHT BROWN,BROWN,TRIM4#

 1
73220-1002004

KP6#..(4D,5D)..GEN

*NLR,BLUE,BLUE,TRIM8#

 1
73220-1002001

KP6#..(4D,5D)..GEN

*NLR,BLACK,BLACK,TRIM2#

 1
73210-1014103

KP6#..(4D,5D)..GEN

GRAY,GRAY,TRIM1#

 1
73210-1014102

KP6#..(4D,5D)..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73210-1014136

KP6#..(4D,5D)..GEN

BROWN,BROWN,TRIM4#

 1
73220-1016002

KP6#..(4D,5D)..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73220-1016036

KP6#..(4D,5D)..GEN

BROWN,BROWN,TRIM4#

 1
73220-1016003

KP6#..(4D,5D)..GEN

GRAY,GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-1002006

KP6#..(4D,5D)..GEN

*NLR,LIGHT BROWN,BROWN,TRIM4#

 1
73220-1002004

KP6#..(4D,5D)..GEN

*NLR,BLUE,BLUE,TRIM8#

 1
73220-1002001

KP6#..(4D,5D)..GEN

*NLR,BLACK,BLACK,TRIM2#

 1
73210-1014103

KP6#..(4D,5D)..GEN

GRAY,GRAY,TRIM1#

 1
73210-1014102

KP6#..(4D,5D)..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73210-1014136

KP6#..(4D,5D)..GEN

BROWN,BROWN,TRIM4#

 1
73220-1016002

KP6#..(4D,5D)..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73220-1016036

KP6#..(4D,5D)..GEN

BROWN,BROWN,TRIM4#

 1
73220-1016003

KP6#..(4D,5D)..GEN

GRAY,GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1004006

KP6#..GEN

LIGHT BROWN,BROWN,TRIM4#

 1
73230-1004001

KP6#..GEN

BLACK,BLACK,TRIM2#

 1
73230-1004004

KP6#..GEN

BLUE,BLUE,TRIM8#

 1
73230-1013136

KP6#..GEN

BROWN,BROWN,TRIM4#

 1
73230-1013103

KP6#..GEN

GRAY,GRAY,TRIM1#

 1
73230-1013102

KP6#..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73230-1013236

KP6#..GEN

BROWN,BROWN,TRIM4#

 1
73230-1013202

KP6#..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73230-1013203

KP6#..GEN

GRAY,GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1004006

KP6#..GEN

LIGHT BROWN,BROWN,TRIM4#

 1
73230-1004001

KP6#..GEN

BLACK,BLACK,TRIM2#

 1
73230-1004004

KP6#..GEN

BLUE,BLUE,TRIM8#

 1
73230-1013136

KP6#..GEN

BROWN,BROWN,TRIM4#

 1
73230-1013103

KP6#..GEN

GRAY,GRAY,TRIM1#

 1
73230-1013102

KP6#..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73230-1013236

KP6#..GEN

BROWN,BROWN,TRIM4#

 1
73230-1013202

KP6#..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73230-1013203

KP6#..GEN

GRAY,GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-1004006

KP6#..GEN

LIGHT BROWN,BROWN,TRIM4#

 1
73230-1004001

KP6#..GEN

BLACK,BLACK,TRIM2#

 1
73230-1004004

KP6#..GEN

BLUE,BLUE,TRIM8#

 1
73230-1013102

KP6#..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73230-1013103

KP6#..GEN

GRAY,GRAY,TRIM1#

 1
73230-1013136

KP6#..GEN

BROWN,BROWN,TRIM4#

 1
73230-1013202

KP6#..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73230-1013203

KP6#..GEN

GRAY,GRAY,TRIM1#

 1
73230-1013236

KP6#..GEN

BROWN,BROWN,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-1004006

KP6#..GEN

LIGHT BROWN,BROWN,TRIM4#

 1
73230-1004001

KP6#..GEN

BLACK,BLACK,TRIM2#

 1
73230-1004004

KP6#..GEN

BLUE,BLUE,TRIM8#

 1
73230-1013102

KP6#..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73230-1013103

KP6#..GEN

GRAY,GRAY,TRIM1#

 1
73230-1013136

KP6#..GEN

BROWN,BROWN,TRIM4#

 1
73230-1013202

KP6#..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73230-1013203

KP6#..GEN

GRAY,GRAY,TRIM1#

 1
73230-1013236

KP6#..GEN

BROWN,BROWN,TRIM4#

 1
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-1005002

KP6#..SED..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73330-1005036

KP6#..SED..GEN

BROWN,BROWN,TRIM4#

 1
73330-1005003

KP6#..SED..GEN

GRAY,GRAY,TRIM1#

 1
73330-1005102

KP6#..SED..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73330-1005103

KP6#..SED..GEN

GRAY,GRAY,TRIM1#

 1
73330-1005136

KP6#..SED..GEN

BROWN,BROWN,TRIM4#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73330-1005002

KP6#..SED..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73330-1005036

KP6#..SED..GEN

BROWN,BROWN,TRIM4#

 1
73330-1005003

KP6#..SED..GEN

GRAY,GRAY,TRIM1#

 1
73330-1005102

KP6#..SED..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
73330-1005136

KP6#..SED..GEN

BROWN,BROWN,TRIM4#

 1
73330-1005103

KP6#..SED..GEN

GRAY,GRAY,TRIM1#

 1
Common parts
91616-60820
93510-15010
93540-55010
