KP61L-PHKRSW (1981)

Toyota Starlet

Production Aug 1981 - Aug 1982
Engine 4K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )4K..EUG

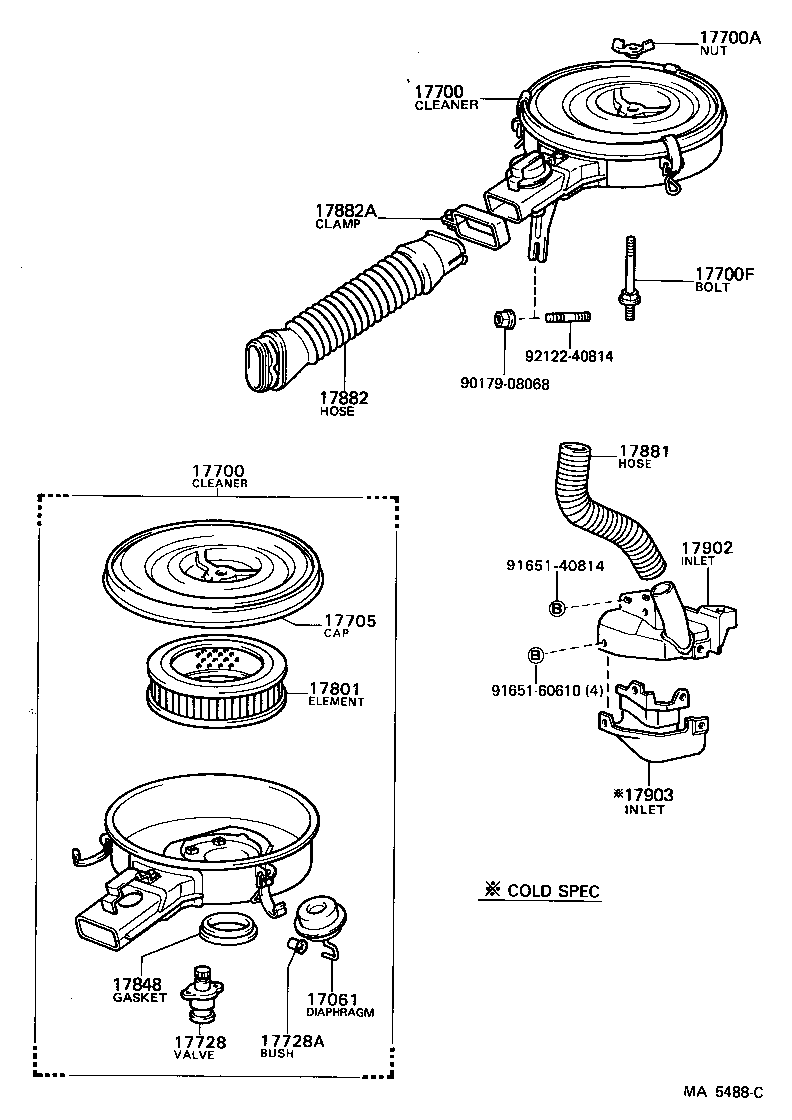

Click highlighted areas on diagram

diagram 17061 17700 17700 17700A 17700F 17705 17728 17728A 17801 17848 17881 17882 17882A 17902 17903 9017908068 9165140814 9165160610 9212240814
Part # Description Qty Price
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

4K#..KP61

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06142

4K#..KP61

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-13010

4K#..KP61

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-13010

4K#..KP61

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-26020

2K,4K..KP60,61..EUG

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-13022

4K..KP61

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01023

4K..KP61

 1
17903 - INLET SUB-ASSY, HOT AIR INTAKE, NO.2
17168-24010

4K..KP61

COLD SPEC

 1
Common parts
90179-08068
91651-40814
91651-60610
92122-40814
