KP60RV-PXKRS (1978)
Toyota Starlet
Production
Oct 1978
-
Sep 1984
Engine
2K
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7810-8005)4D
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61027-10011 |
KP6# |
1 | ||
| 61027-10010 |
KP6# |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61028-10010 |
KP6# |
1 | ||
| 61028-10011 |
KP6# |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61021-10020 |
KP6# |
1 | ||
| 61161-10040 |
KP6# |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-10040 |
KP6# |
1 | ||
| 61022-10010 |
KP6# |
1 | ||
| 61165 - PILLAR, FRONT BODY LOWER INNER, RH | ||||
| 61023-10021 |
KP6#..RHD |
1 | ||
| 61023-10080 |
KP6#..RHD W/RR WIPER |
1 | ||
| 61023-10022 |
KP6#..RHD W/O RR WIPER |
1 | ||
| 61023-10020 |
KP6#..RHD |
1 | ||
| 61023-10013 |
KP6#..RHD W/O RR WIPER |
1 | ||
| 61166 - PILLAR, FRONT BODY LOWER INNER, LH | ||||
| 61024-10020 |
KP6#..RHD |
1 | ||
| 61024-96441 |
KP6#..RHD..4D |
1 | ||
| 61024-10021 |
KP6#..RHD |
1 | ||
| 61024-96445 |
KP60..RHD..4D |
1 | ||
| 61024-96446 |
KP60..RHD..4D |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61231-96440 |
KP6#..4D |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61232-96440 |
KP6#..4D |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-96440 |
KP6#..4D |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-96440 |
KP6#..4D |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-96440 |
KP6#..4D |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-96440 |
KP6#..4D |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-10030 |
KP6#..4D,5D |
1 | ||
| 61301-10031 |
KP6#..4D,5D |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-10030 |
KP6#..4D,5D |
1 | ||
| 61302-10031 |
KP6#..4D,5D |
1 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61309-10030 |
KP6# |
2 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61309-10030 |
KP6# |
2 | ||
| 61343 - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-10020 |
KP6#..4D,5D |
1 | ||
| 61344 - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-10020 |
KP6#..4D,5D |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-10110 |
KP6#..4D,5D |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-10110 |
KP6#..4D,5D |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-10900 |
KP6#..4D |
1 | ||
| 61511-96440 |
KP6#..4D |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61512-96440 |
KP6#..4D |
1 | ||
| 61512-10900 |
KP6#..4D |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-96900 |
KP6#..4D |
1 | ||
| 61601-10905 |
KP6#..4D |
1 | ||
| 61601-96901 |
KP6#..4D |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-96900 |
KP6#..4D |
1 | ||
| 61602-10906 |
KP6#..4D |
1 | ||
| 61602-96901 |
KP6#..4D |
1 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61603-96440 |
KP6#..4D |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61604-96440 |
KP6#..4D |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-96441 |
KP6#..4D |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-96445 |
KP6#..4D |
1 | ||
| 61743 - REINFORCEMENT, BACK DOOR OPENING, INNER RH | ||||
| 61033-96440 |
KP6#..4D |
1 | ||
| 61744 - REINFORCEMENT, BACK DOOR OPENING, INNER LH | ||||
| 61034-96440 |
KP6#..4D |
1 | ||
| 61792 - COVER, ROOF SIDE INNER SERVICE HOLE | ||||
| 61791-96440 |
KP6#..4D W/O RR WIPER |
2 | ||
| 61792-96440 |
KP6#..4D LH,W/RR WIPER |
1 | ||
| 61791-96440 |
KP6#..4D RH,W/RR WIPER |
1 | ||
| Common parts | ||||
| 90950-01006 | ||||
| 90950-01056 | ||||
| 90950-01126 | ||||
| 90950-01134 | ||||
| 90950-01153 | ||||
| 90950-01188 | ||||
| 91651-40610 | ||||

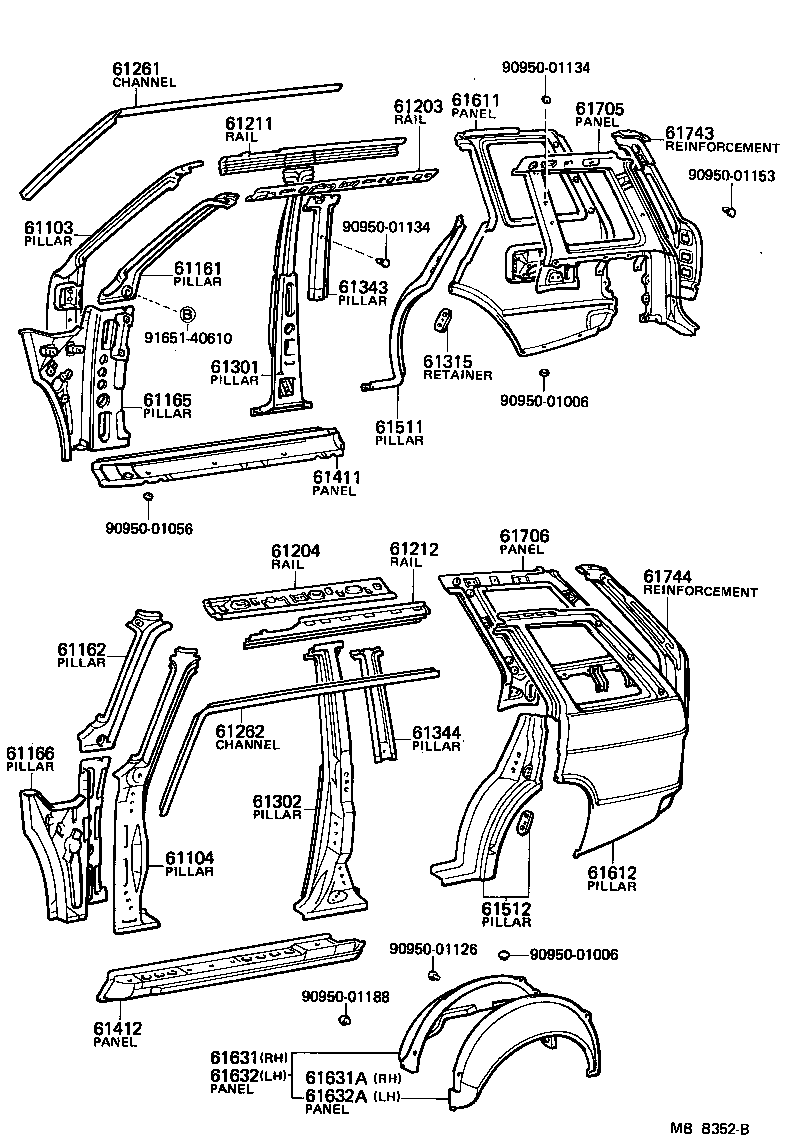

(8005-8208)4D
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61027-10011 |
KP6# |
1 | ||
| 61027-10010 |
KP6# |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61028-10010 |
KP6# |
1 | ||
| 61028-10011 |
KP6# |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61021-10020 |
KP6# |
1 | ||
| 61161-10040 |
KP6# |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-10040 |
KP6# |
1 | ||
| 61022-10010 |
KP6# |
1 | ||
| 61165 - PILLAR, FRONT BODY LOWER INNER, RH | ||||
| 61023-10021 |
KP6#..RHD |
1 | ||
| 61023-10080 |
KP6#..RHD W/RR WIPER |
1 | ||
| 61023-10022 |
KP6#..RHD W/O RR WIPER |
1 | ||
| 61023-10020 |
KP6#..RHD |
1 | ||
| 61023-10013 |
KP6#..RHD W/O RR WIPER |
1 | ||
| 61166 - PILLAR, FRONT BODY LOWER INNER, LH | ||||
| 61024-10020 |
KP6#..RHD |
1 | ||
| 61024-96441 |
KP6#..RHD..4D |
1 | ||
| 61024-10021 |
KP6#..RHD |
1 | ||
| 61024-96445 |
KP60..RHD..4D |
1 | ||
| 61024-96446 |
KP60..RHD..4D |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61231-96440 |
KP6#..4D |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61232-96440 |
KP6#..4D |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-96440 |
KP6#..4D |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-96440 |
KP6#..4D |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-96440 |
KP6#..4D |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-96440 |
KP6#..4D |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-10030 |
KP6#..4D,5D |
1 | ||
| 61301-10031 |
KP6#..4D,5D |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-10030 |
KP6#..4D,5D |
1 | ||
| 61302-10031 |
KP6#..4D,5D |
1 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61309-10030 |
KP6# |
2 | ||
| 61343 - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-10020 |
KP6#..4D,5D |
1 | ||
| 61344 - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-10020 |
KP6#..4D,5D |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-10110 |
KP6#..4D,5D |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-10110 |
KP6#..4D,5D |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-10900 |
KP6#..4D |
1 | ||
| 61511-96440 |
KP6#..4D |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61512-96440 |
KP6#..4D |
1 | ||
| 61512-10900 |
KP6#..4D |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-96900 |
KP6#..4D |
1 | ||
| 61601-10905 |
KP6#..4D |
1 | ||
| 61601-96901 |
KP6#..4D |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-96900 |
KP6#..4D |
1 | ||
| 61602-10906 |
KP6#..4D |
1 | ||
| 61602-96901 |
KP6#..4D |
1 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61603-96440 |
KP6#..4D |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-96441 |
KP6#..4D |
1 | ||
| 61631-96440 |
KP6#..4D |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61604-96440 |
KP6#..4D |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-96440 |
KP6#..4D |
1 | ||
| 61632-96441 |
KP6#..4D |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-96441 |
KP6#..4D |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-96445 |
KP6#..4D |
1 | ||
| 61743 - REINFORCEMENT, BACK DOOR OPENING, INNER RH | ||||
| 61033-96440 |
KP6#..4D |
1 | ||
| 61744 - REINFORCEMENT, BACK DOOR OPENING, INNER LH | ||||
| 61034-96440 |
KP6#..4D |
1 | ||
| Common parts | ||||
| 90950-01006 | ||||
| 90950-01056 | ||||
| 90950-01126 | ||||
| 90950-01134 | ||||
| 90950-01153 | ||||
| 90950-01188 | ||||
| 91651-40610 | ||||

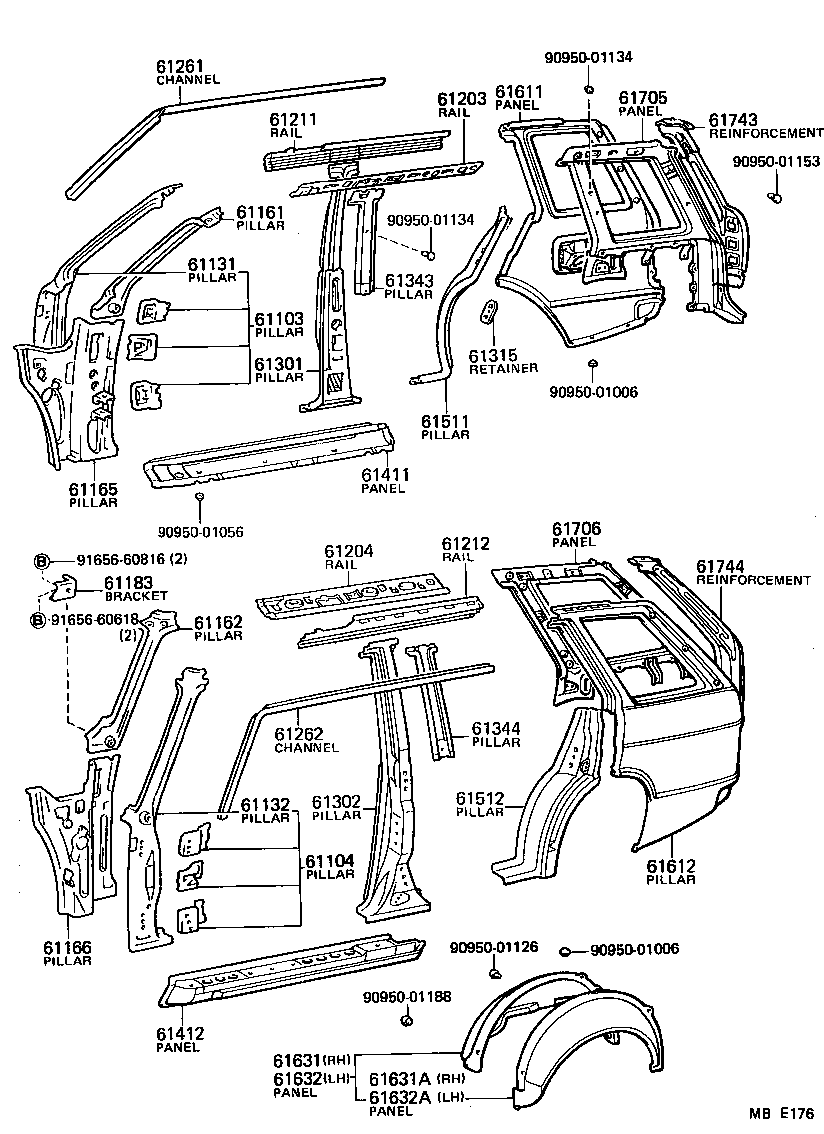

(8208- )4D
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61027-10011 |
KP6# |
1 | ||
| 61027-10010 |
KP6# |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61028-10010 |
KP6# |
1 | ||
| 61028-10011 |
KP6# |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-10101 |
KP6# |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-10091 |
KP6# |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61021-10020 |
KP6# |
1 | ||
| 61161-10040 |
KP6# |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-10040 |
KP6# |
1 | ||
| 61022-10010 |
KP6# |
1 | ||
| 61165 - PILLAR, FRONT BODY LOWER INNER, RH | ||||
| 61023-10021 |
KP6#..RHD |
1 | ||
| 61023-10080 |
KP6#..RHD W/RR WIPER |
1 | ||
| 61023-10022 |
KP6#..RHD W/O RR WIPER |
1 | ||
| 61023-10020 |
KP6#..RHD |
1 | ||
| 61023-10013 |
KP6#..RHD W/O RR WIPER |
1 | ||
| 61166 - PILLAR, FRONT BODY LOWER INNER, LH | ||||
| 61024-10020 |
KP6#..RHD |
1 | ||
| 61024-96441 |
KP6#..RHD..4D |
1 | ||
| 61024-10021 |
KP6#..RHD |
1 | ||
| 61024-96445 |
KP60..RHD..4D |
1 | ||
| 61024-96446 |
KP60..RHD..4D |
1 | ||
| 61183 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61183-10020 |
KP6# RH |
1 | ||
| 61184-10010 |
KP6# LH |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61231-96440 |
KP6#..4D |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61232-96440 |
KP6#..4D |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-96440 |
KP6#..4D |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-96440 |
KP6#..4D |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-96440 |
KP6#..4D |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-96440 |
KP6#..4D |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-10030 |
KP6#..4D,5D |
1 | ||
| 61301-10031 |
KP6#..4D,5D |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-10030 |
KP6#..4D,5D |
1 | ||
| 61302-10031 |
KP6#..4D,5D |
1 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61309-10030 |
KP6# |
2 | ||
| 61343 - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-10020 |
KP6#..4D,5D |
1 | ||
| 61344 - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-10020 |
KP6#..4D,5D |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-10110 |
KP6#..4D,5D |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-10110 |
KP6#..4D,5D |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-10900 |
KP6#..4D |
1 | ||
| 61511-96440 |
KP6#..4D |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61512-96440 |
KP6#..4D |
1 | ||
| 61512-10900 |
KP6#..4D |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-96900 |
KP6#..4D |
1 | ||
| 61601-10905 |
KP6#..4D |
1 | ||
| 61601-96901 |
KP6#..4D |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-96900 |
KP6#..4D |
1 | ||
| 61602-10906 |
KP6#..4D |
1 | ||
| 61602-96901 |
KP6#..4D |
1 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61603-96440 |
KP6#..4D |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-96441 |
KP6#..4D |
1 | ||
| 61631-96440 |
KP6#..4D |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61604-96440 |
KP6#..4D |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-96440 |
KP6#..4D |
1 | ||
| 61632-96441 |
KP6#..4D |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-96441 |
KP6#..4D |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-96445 |
KP6#..4D |
1 | ||
| 61743 - REINFORCEMENT, BACK DOOR OPENING, INNER RH | ||||
| 61033-96440 |
KP6#..4D |
1 | ||
| 61744 - REINFORCEMENT, BACK DOOR OPENING, INNER LH | ||||
| 61034-96440 |
KP6#..4D |
1 | ||
| Common parts | ||||
| 90950-01006 | ||||
| 90950-01056 | ||||
| 90950-01126 | ||||
| 90950-01134 | ||||
| 90950-01153 | ||||
| 90950-01188 | ||||
| 91656-60618 | ||||
| 91656-60816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
