KP60R-PHMRS (1978)
Toyota Starlet
Production
Feb 1978
-
Aug 1982
Engine
2K
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7802- )RHD

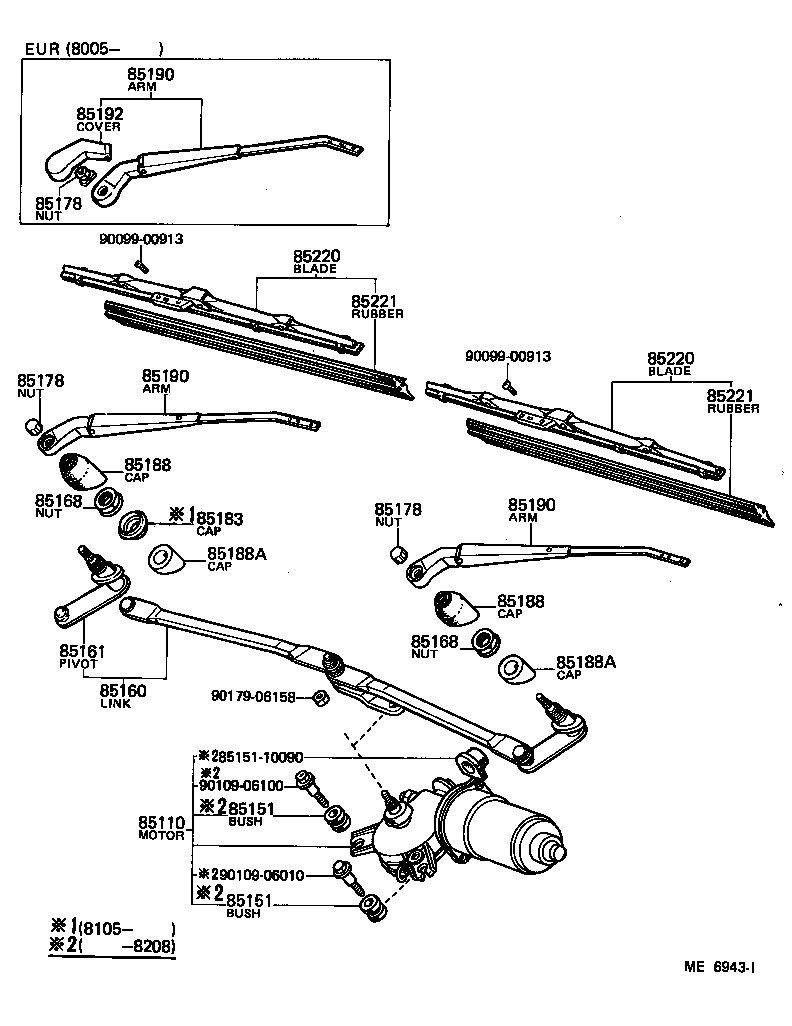

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-10080 |
KP6#..RHD |
1 | ||
| 85110-10081 |
KP60,62..RHD..GEN |
1 | ||
| 85151 - BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER | ||||
| 85151-10080 |
KP6# |
2 | ||
| 85151 - BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER | ||||
| 85151-10080 |
KP6# |
2 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85160-10081 |
KP6#..RHD |
1 | ||
| 85160-10080 |
KP6#..RHD |
1 | ||
| 85161 - PIVOT, WINDSHIELD WIPER LINK, NO.1 | ||||
| 85161-10081 |
KP6# DRIVER SIDE |
1 | ||
| 85168 - NUT, WINDSHIELD WIPER LINK PIVOT | ||||
| 85186-10080 |
KP6# |
2 | ||
| 85168 - NUT, WINDSHIELD WIPER LINK PIVOT | ||||
| 85186-10080 |
KP6# |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08013 |
KP6#..RHD |
2 | ||
| 90176-08013 |
KP60,62..RHD..GEN |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08013 |
KP6#..RHD |
2 | ||
| 90176-08013 |
KP60,62..RHD..GEN |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08013 |
KP6#..RHD |
2 | ||
| 90176-08013 |
KP60,62..RHD..GEN |
2 | ||
| 85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1 | ||||
| 85178-10080 |
KP6# LH |
1 | ||
| 85178-10090 |
KP6# RH |
1 | ||
| 85178-10081 |
KP6# LH |
1 | ||
| 85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1 | ||||
| 85178-10090 |
KP6# RH |
1 | ||
| 85178-10080 |
KP6# LH |
1 | ||
| 85178-10081 |
KP6# LH |
1 | ||
| 85188A - CAP, WINDSHIELD WIPER PIVOT, NO.2 | ||||
| 85179-10080 |
KP6# |
2 | ||
| 85176-10080 |
KP6# |
2 | ||
| 85188A - CAP, WINDSHIELD WIPER PIVOT, NO.2 | ||||
| 85179-10080 |
KP6# |
2 | ||
| 85176-10080 |
KP6# |
2 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85190-10280 |
KP6#..RHD |
2 | ||
| 85190-10281 |
KP60,62..RHD..GEN |
2 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85190-10280 |
KP6#..RHD |
2 | ||
| 85190-10281 |
KP60,62..RHD..GEN |
2 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85190-10280 |
KP6#..RHD |
2 | ||
| 85190-10281 |
KP60,62..RHD..GEN |
2 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-12220 |
KP6#..RHD |
2 | ||
| 85220-22180 |
KP60,62..RHD..GEN |
2 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-12220 |
KP6#..RHD |
2 | ||
| 85220-22180 |
KP60,62..RHD..GEN |
2 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-12060 |
KP6# |
2 | ||
| 85221-12060 |
KP6#..RHD |
2 | ||
| 85221-22030 |
KP6#..RHD |
2 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-12060 |
KP6# |
2 | ||
| 85221-12060 |
KP6#..RHD |
2 | ||
| 85221-22030 |
KP6#..RHD |
2 | ||
| Common parts | ||||
| 85151-10090 | ||||
| 90099-00913 | ||||
| 90109-06010 | ||||
| 90109-06100 | ||||
| 90179-06158 | ||||
