KP60R-PHMRS (1978)
Toyota Starlet
(7802- )

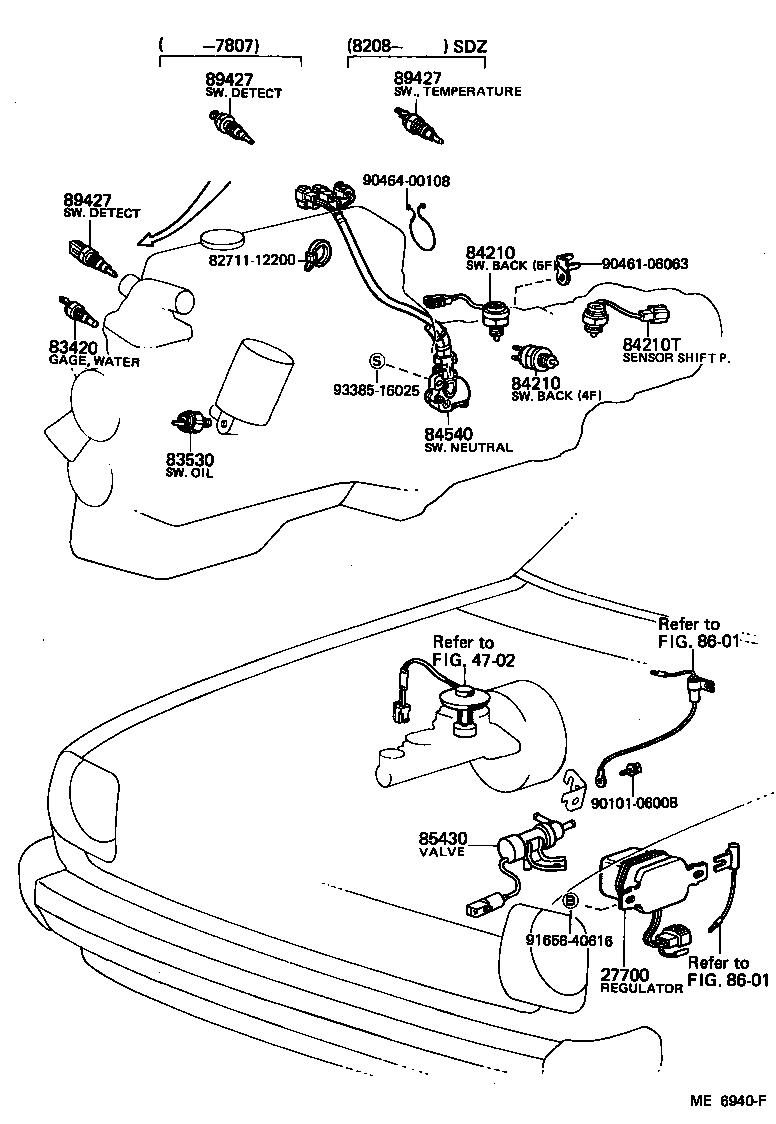

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-13010 |
2K,3K#..KP6# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-12010 |
KP6# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-10020 |
KP6# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-10060 |
KP6#..5F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-10060 |
KP6#..5F |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89428-10030 |
KP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 89428-13020 |
KP60 |
1 | ||
| 89428-10031 |
KP60;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89428-10030 |
KP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 89428-13020 |
KP60 |
1 | ||
| 89428-10031 |
KP60;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89428-10030 |
KP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 89428-13020 |
KP60 |
1 | ||
| 89428-10031 |
KP60;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90101-06008 | ||||
| 90461-06063 | ||||
| 90464-00108 | ||||
| 91656-40616 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8601 | ||||
(7802-8208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62915 |
KP6# 15A,15A |
7 | ||
| 99118-62920 |
KP6# 20A,20A |
1 | ||
| 99118-62005 |
KP6# 5A |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62915 |
KP6# 15A,15A |
7 | ||
| 99118-62920 |
KP6# 20A,20A |
1 | ||
| 99118-62005 |
KP6# 5A |
2 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-10050 |
KP6# |
1 | ||
| 82611-10051 |
KP60;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN SUMITOMO |
1 | ||
| 82611-10052 |
KP60,62;KP61..EUG SUMITOMO |
1 | ||
| 82611-10080 |
KP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN FURUKAWA |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-10050 |
KP6# |
1 | ||
| 82611-10051 |
KP60;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN SUMITOMO |
1 | ||
| 82611-10052 |
KP60,62;KP61..EUG SUMITOMO |
1 | ||
| 82611-10080 |
KP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN FURUKAWA |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19096 |
KP6#..RHD MATSUSHITA |
1 | ||
| 84112-19076 |
KP6#..RHD TOKAIRIKA |
1 | ||
| 84112-19075 |
KP6#..RHD TOKAIRIKA |
1 | ||
| 84112-19095 |
KP6#..RHD MATSUSHITA |
1 | ||
| 84112-19077 |
KP6#..RHD TOKAIRIKA |
1 | ||
| 84112-19097 |
KP6#..RHD MATSUSHITA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19015 |
KP6#..RHD TOKAIRIKA |
1 | ||
| 84140-10030 |
KP6#..RHD MATSUSHITA |
1 | ||
| 84140-10031 |
KP6#..RHD MATSUSHITA |
1 | ||
| 84140-19016 |
KP6#..RHD TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-10210 |
KP6#..RHD..GEN |
1 | ||
| 84310-10211 |
KP6#..RHD..GEN |
1 | ||
| 84310-10220 |
KP6#..RHD W/*IW |
1 | ||
| 84310-10210 |
KP6#..RHD |
1 | ||
| 84310-10221 |
KP6#..RHD W/*IW |
1 | ||
| 84310-10222 |
KP6#..RHD W/*IW |
1 | ||
| 84310-10212 |
KP60,62..RHD..GEN |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
KP6# TOKAIRIKA |
1 | ||
| 84312-20020 |
KP6# MATSUSHITA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-10080 |
KP6#..RHD MATSUSHITA |
1 | ||
| 84332-19015 |
KP6#..RHD TOKAIRIKA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-14021 |
KP6# |
1 | ||
| 84450-14021 |
KP6#..RHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-10100 |
KP6#..RHD MATSUSHITA,W/*IW |
1 | ||
| 84652-19145 |
KP6#..RHD TOKAIRIKA,INTERMITENT WIPER |
1 | ||
| 84652-10090 |
KP6#..RHD..GEN MATSUSHITA |
1 | ||
| 84652-19135 |
KP6#..RHD..GEN TOKAIRIKA |
1 | ||
| 84652-10090 |
KP6#..RHD MATSUSHITA |
1 | ||
| 84652-19135 |
KP6#..RHD TOKAIRIKA |
1 | ||
| 84652-10091 |
KP60,62..RHD..GEN MATSUSHITA |
1 | ||
| 84652-19146 |
KP60,62..RHD TOKAIRIKA,W/*IW |
1 | ||
| 84652-19136 |
KP60,62..RHD..GEN TOKAIRIKA |
1 | ||
| 84652-10101 |
KP6#..RHD MATSUSHITA,W/*IW |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-10010 |
KP6# |
1 | ||
| 84653-10020 |
KP6# |
1 | ||
| 84653-21030 |
KP6# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-10041 |
KP6# |
1 | ||
| 84732-10040 |
KP6# |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
KP6# |
2 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
KP6# |
2 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-16010 |
KP6# |
1 | ||
| 84731-12010 |
KP6# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-22040 |
KP6# |
1 | ||
| 84790-10060 |
KP6# |
1 | ||
| 84790-10050 |
KP6# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11018 |
KP6# 12V 1.2W W/O SOCKET,12V 1.4W |
1 | ||
| 90981-11024 |
KP6# 12V 1.4W,12V 1.4W |
1 | ||
| 90981-11014 |
KP6# 14V 1.4W,12V 1.4W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12031 |
KP6#..GEN |
1 | ||
| 85500-30340 |
KP60,62..GEN |
1 | ||
| Common parts | ||||
| 90159-50105 | ||||
| 90463-15402 | ||||
| 90464-00108 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
(7802- )

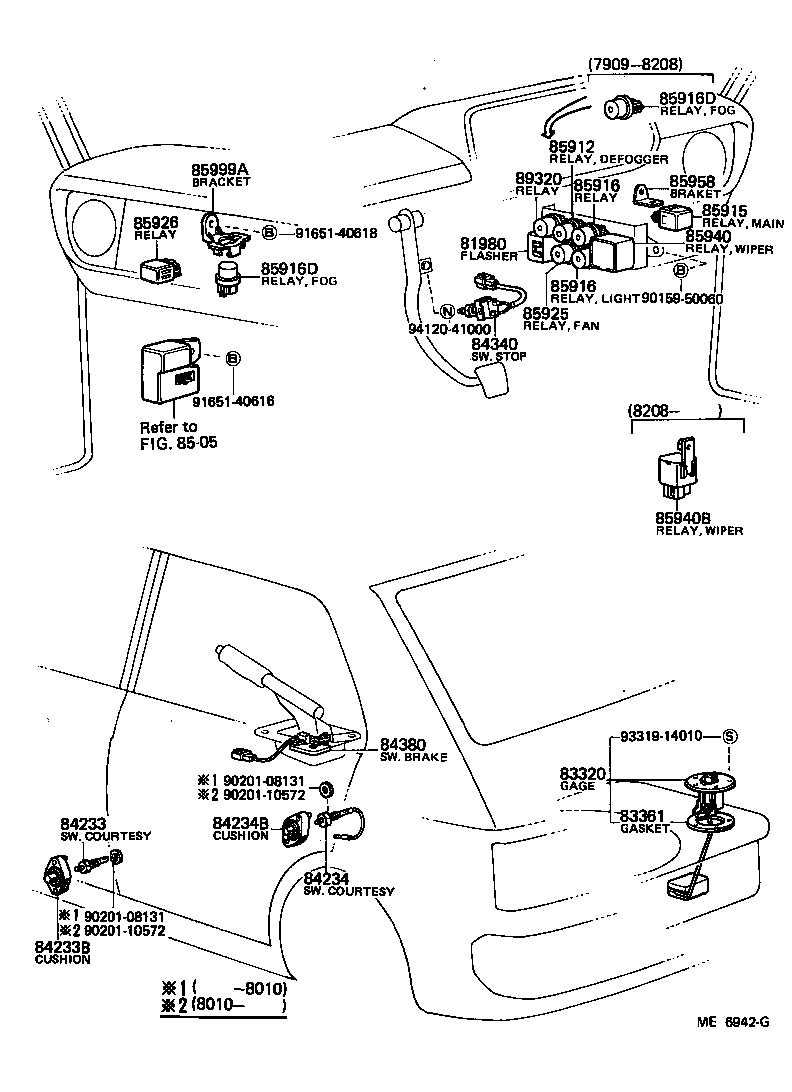

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
KP6# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19336 |
KP6#..SED |
1 | ||
| 83320-19335 |
KP6#..SED |
1 | ||
| 83320-19336 |
KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
KP6# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20010 |
KP6# |
2 | ||
| 84230-20110 |
KP6# |
2 | ||
| 84231-20060 |
KP6# |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-20010 |
KP6# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-20040 |
KP6#..5D |
2 | ||
| 84231-20060 |
KP6#..5D |
2 | ||
| 84230-20110 |
KP6#..5D |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-20010 |
KP6#..5D |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22060 |
KP6# |
1 | ||
| 84340-36030 |
KP6# |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-10020 |
KP6# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02002 |
KP6# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
KP6# |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
KP6# |
2 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
KP6# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22051 |
KP6# |
1 | ||
| 85958 - BRACKET, MAIN RELAY | ||||
| 85999-10020 |
KP6# |
1 | ||
| Common parts | ||||
| 90159-50060 | ||||
| 90201-08131 | ||||
| 90201-10572 | ||||
| 91651-40616 | ||||
| 91651-40618 | ||||
| 93319-14010 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8505 | ||||
