KP60R-PHMRS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

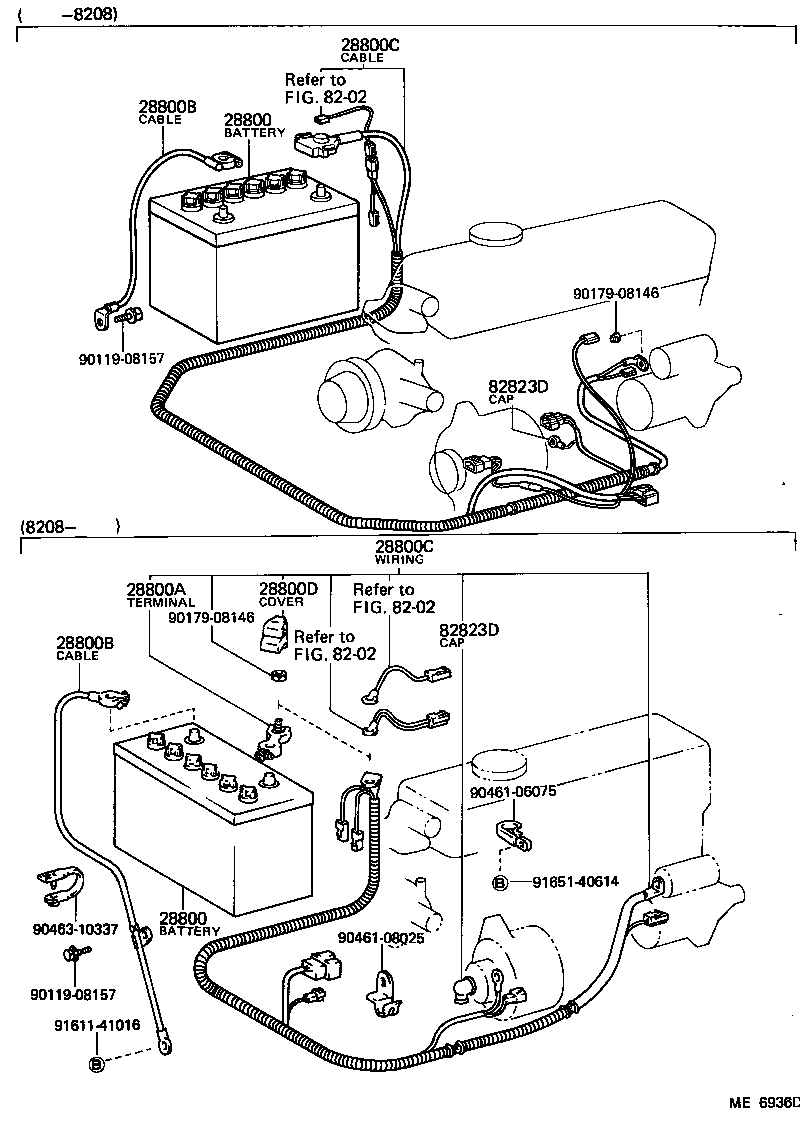

Click highlighted areas on diagram

diagram 28800 28800 28800A 28800B 28800B 28800C 28800C 28800D 8202 8202 8202 82823D 82823D 9011908157 9011908157 9017908146 9017908146 9046106075 9046108025 9046310337 9161141016 9165140614
Part # Description Qty Price
28800 - BATTERY
28800-31031

2K,3KH..KP6#

32C24L,N40L(12V 40AH-20HR)

 1
28800-10021

2K,3KH..KP6#..GEN

NS40L(12V 33AH-20HR)

 1
28800-13060

2K,3KH..KP60,62..GEN

28B19R,NS40S(12V 30AH-20HR)

 1
28800-13110

2K,3KH..KP60,62..GEN

28B19R(S),NS40S(S)(12V 30AH-20HR)

 1
28800-13110

2K,3KH..KP6#

28B19R(S),NS40S(S)(12V 30AH-20HR)

 1
28800-33071

2K,3KH,4K..KP6#

32C24R,N40L(12V 40AH-20HR)

 1
28800 - BATTERY
28800-31031

2K,3KH..KP6#

32C24L,N40L(12V 40AH-20HR)

 1
28800-10021

2K,3KH..KP6#..GEN

NS40L(12V 33AH-20HR)

 1
28800-13060

2K,3KH..KP60,62..GEN

28B19R,NS40S(12V 30AH-20HR)

 1
28800-13110

2K,3KH..KP60,62..GEN

28B19R(S),NS40S(S)(12V 30AH-20HR)

 1
28800-13110

2K,3KH..KP6#

28B19R(S),NS40S(S)(12V 30AH-20HR)

 1
28800-33071

2K,3KH,4K..KP6#

32C24R,N40L(12V 40AH-20HR)

 1
28800B - CABLE, BATTERY TO GROUND
90982-02148

2K,3KH..KP6#..GEN

NS40L

 1
90982-02150

2K,3KH..KP6#

N40L

 1
90982-02202

2K,3KH..KP60,62..GEN

N40,NS40S(S)

 1
90982-02201

2K,3KH..KP60,62..GEN

NS40S

 1
28800B - CABLE, BATTERY TO GROUND
90982-02148

2K,3KH..KP6#..GEN

NS40L

 1
90982-02150

2K,3KH..KP6#

N40L

 1
90982-02202

2K,3KH..KP60,62..GEN

N40,NS40S(S)

 1
90982-02201

2K,3KH..KP60,62..GEN

NS40S

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82250-10120

2K,3KH..KP6#..RHD..GEN

NS40L

 1
82250-10130

2K,3KH..KP6#..RHD

N40L,N50ZL

 1
82250-10131

2K,3KH..KP6#..RHD..GEN

N40,NS40S(S)

 1
82250-10190

2K,3KH..KP6#..RHD..GEN

NS40S

 1
82250-10191

2K,3KH..KP60,62..RHD..GEN

NS40S

 1
82250-10132

2K,3KH..KP60,62..RHD..GEN

NS40S(S),N40

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82250-10120

2K,3KH..KP6#..RHD..GEN

NS40L

 1
82250-10130

2K,3KH..KP6#..RHD

N40L,N50ZL

 1
82250-10131

2K,3KH..KP6#..RHD..GEN

N40,NS40S(S)

 1
82250-10190

2K,3KH..KP6#..RHD..GEN

NS40S

 1
82250-10191

2K,3KH..KP60,62..RHD..GEN

NS40S

 1
82250-10132

2K,3KH..KP60,62..RHD..GEN

NS40S(S),N40

 1
Common parts
90119-08157
90179-08146
90461-06075
90461-08025
90463-10337
91611-41016
91651-40614
Linked diagrams
8202
