KP60R-PHMRS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

Click highlighted areas on diagram

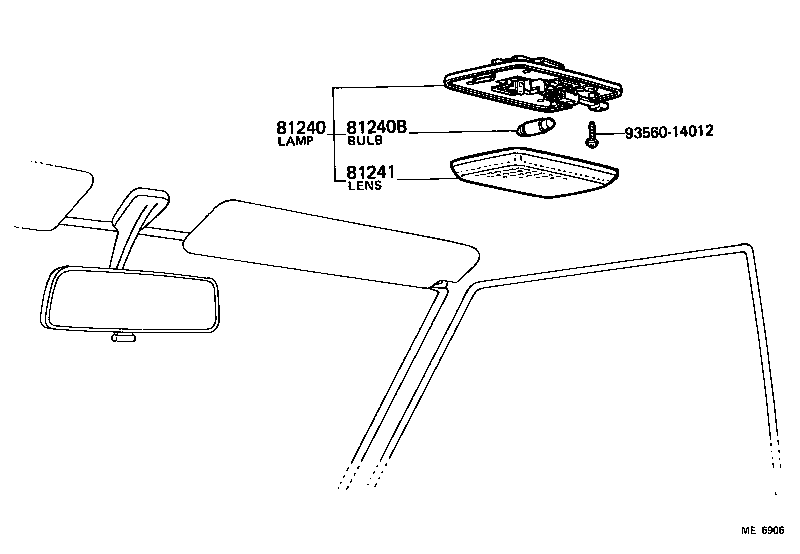

diagram 81240 81240B 81241 9356014012
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-1003003

KP6#

GRAY,GRAY,TRIM2#

 1
81240-1003005

KP6#

BEIGE,BEIGE,TRIM4#

 1
81240-1003004

KP6#

BLUE,BLUE,TRIM8#

 1
81240-1003008

KP6#

IVORY,IVORY,TRIM2#,4#,8#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11015

KP6#

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-10030

KP6#

 1
Common parts
93560-14012
