KP60R-PHMRS (1978)
Toyota Starlet
Production
Feb 1978
-
Aug 1982
Engine
2K
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7802- )RHD

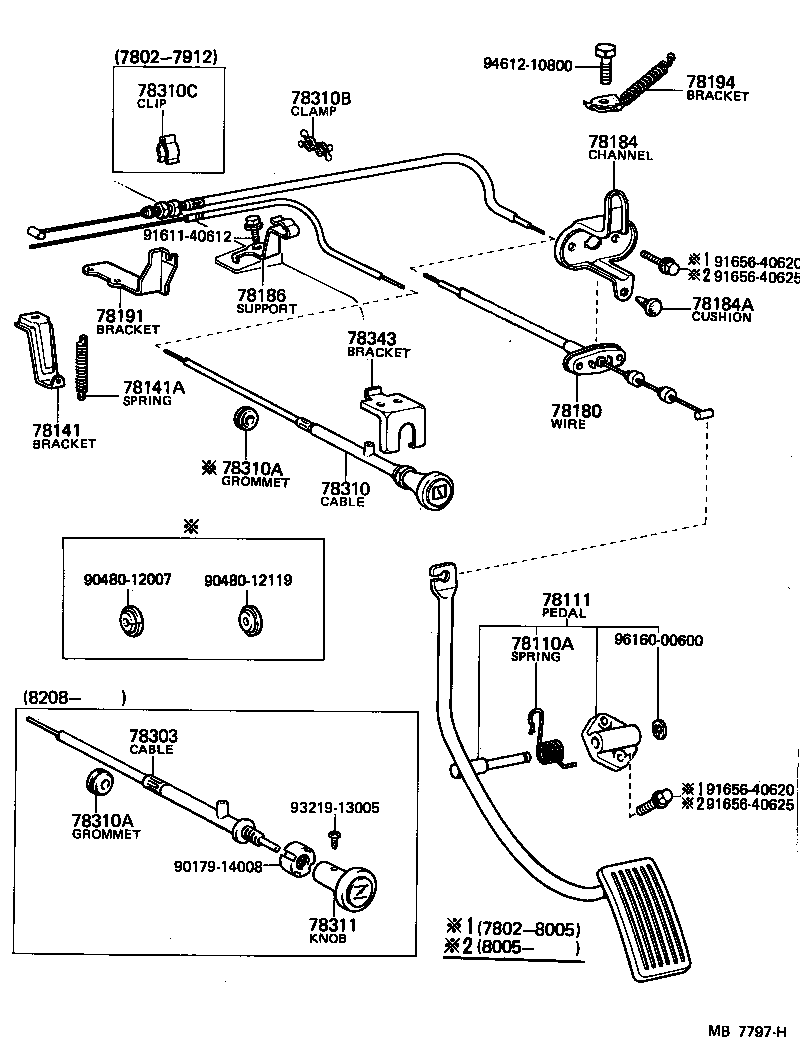

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18398 |
KP60..RHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78010-10010 |
KP60..RHD |
1 | ||
| 78010-10030 |
KP6#..RHD |
1 | ||
| 78141 - BRACKET, ACCELERATOR WIRE RETURN SPRING | ||||
| 78141-12011 |
KP60 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-10100 |
KP6#..RHD |
1 | ||
| 78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER | ||||
| 78181-10060 |
KP6#..RHD |
1 | ||
| 78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL) | ||||
| 90541-06008 |
KP6# |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-10020 |
KP6# |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78184-12040 |
KP60,62 |
1 | ||
| 78194 - BRACKET, ACCELERATOR WIRE SUPPORT, NO.2 | ||||
| 78184-10040 |
KP6#..RHD |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-10180 |
KP6#..RHD |
1 | ||
| 78310-10200 |
KP6#..RHD |
1 | ||
| 78310-10210 |
KP6#..SED..RHD W/WARNING |
1 | ||
| 78310-10210 |
KP6#..RHD |
1 | ||
| 78310A - GROMMET, CHOKE CABLE | ||||
| 90480-12119 |
KP6# |
1 | ||
| 90480-12007 |
KP6# SLIT TYPE |
1 | ||
| 90480-12119 |
KP6# |
1 | ||
| 78310A - GROMMET, CHOKE CABLE | ||||
| 90480-12119 |
KP6# |
1 | ||
| 90480-12007 |
KP6# SLIT TYPE |
1 | ||
| 90480-12119 |
KP6# |
1 | ||
| 78310C - CLIP (FOR CHOKE CABLE) | ||||
| 90468-06116 |
KP6#..RHD |
1 | ||
| 78343 - BRACKET, CHOKE ROD | ||||
| 55364-10030 |
KP6# |
1 | ||
| Common parts | ||||
| 90179-14008 | ||||
| 90480-12007 | ||||
| 90480-12119 | ||||
| 91611-40612 | ||||
| 91656-40620 | ||||
| 91656-40625 | ||||
| 93219-13005 | ||||
| 94612-10800 | ||||
| 96160-00600 | ||||
