KP60R-PHMRS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

Click highlighted areas on diagram

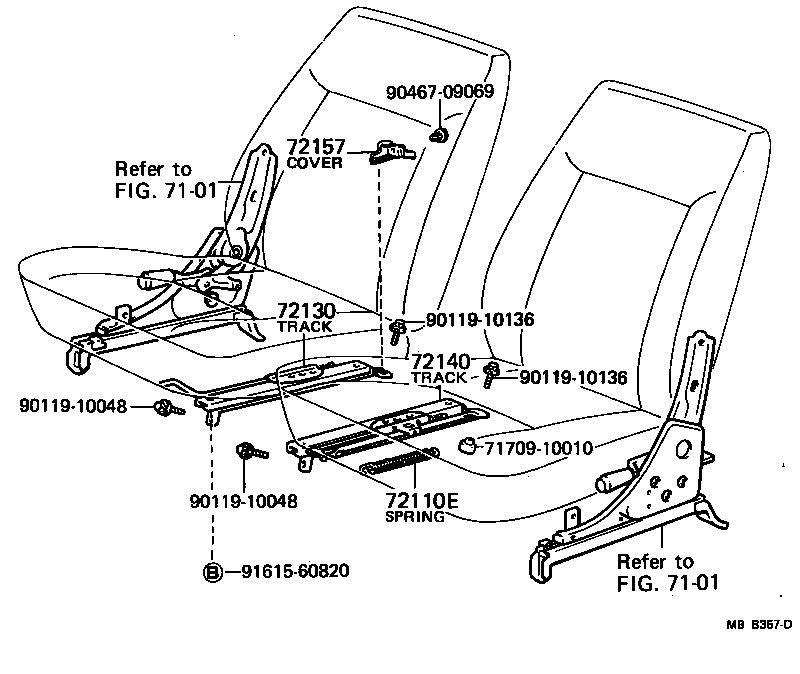

diagram 7101 7101 7170910010 72110E 72130 72140 72157 9011910048 9011910048 9011910136 9011910136 9046709069 9161560820
Part # Description Qty Price
72130 - TRACK ASSY, RH SEAT, INNER
72130-10070

KP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG

W/O WALK-IN TYPE

 1
72130-10071

KP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN

W/O WALK-IN TYPE

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-10081

KP6#

W/O WALK-IN TYPE

 1
72140-10080

KP6#

W/O WALK-IN TYPE

 1
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-10010

KP6#

 1
Common parts
71709-10010
90119-10048
90119-10136
90467-09069
91615-60820
Linked diagrams
7101
