KP60R-PHMRS (1978)
Toyota Starlet
Production
Feb 1978
-
Aug 1982
Engine
2K
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7802- )4D,5D

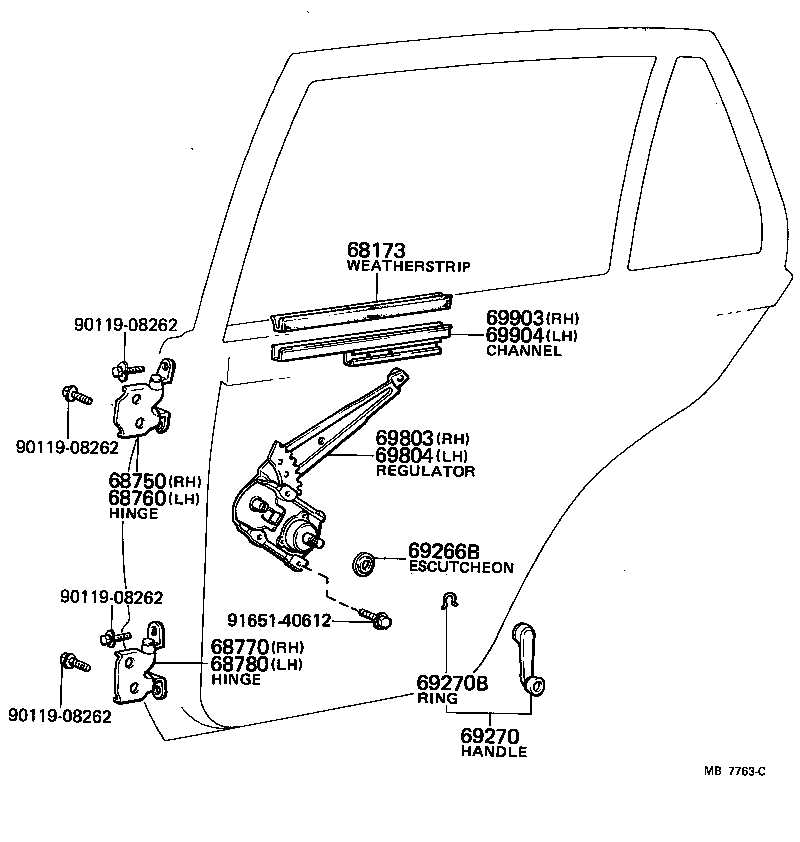

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68173 - WEATHERSTRIP, REAR DOOR GLASS CHANNEL | ||||
| 69975-22020 |
KP6#..4D,5D |
2 | ||
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-14010 |
KP6#..4D,5D |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-14010 |
KP6#..4D,5D |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68730-14020 |
KP6#..4D,5D |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68740-14020 |
KP6#..4D,5D |
1 | ||
| 69266B - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR) | ||||
| 69285-2201001 |
KP6#..4D,5D BLACK,BLACK,TRIM2# |
2 | ||
| 69285-2201004 |
KP6#..4D,5D BLUE,BLUE,TRIM8# |
2 | ||
| 69285-2201005 |
KP6#..4D,5D BEIGE,BEIGE,TRIM4# |
2 | ||
| 69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR | ||||
| 69260-1004004 |
KP6#..4D,5D BLUE,BLUE,TRIM8# |
2 | ||
| 69260-1004001 |
KP6#..4D,5D BLACK,BLACK,TRIM2# |
2 | ||
| 69260-1004004 |
KP6#..5D BLUE,BLUE,TRIM8# |
2 | ||
| 69260-1004036 |
KP6#..4D,5D LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 69260-1004005 |
KP6#..4D,5D BEIGE,BEIGE,TRIM4# |
2 | ||
| 69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE) | ||||
| 90520-01002 |
KP6#..4D,5D |
2 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69830-10020 |
KP6#..4D,5D |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-10020 |
KP6#..4D,5D |
1 | ||
| 69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH | ||||
| 69905-10020 |
KP6#..4D,5D T=4.0 GLASS |
1 | ||
| 69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH | ||||
| 69906-10020 |
KP6#..4D,5D T=4.0 GLASS |
1 | ||
| Common parts | ||||
| 90119-08262 | ||||
| 91651-40612 | ||||
