KP60R-PHMRS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )4D,5D

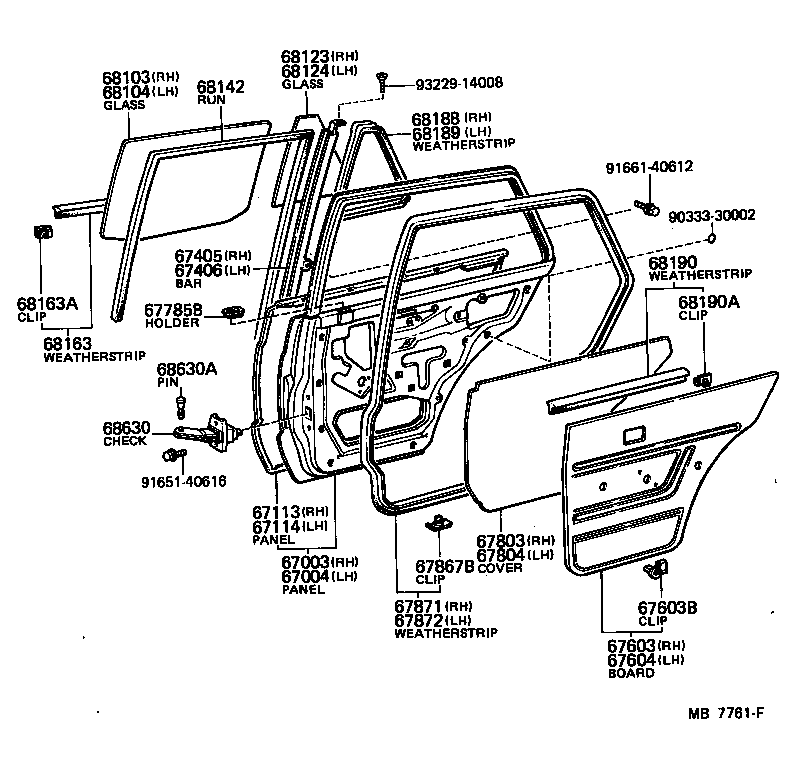

Click highlighted areas on diagram

diagram 67003 67004 67113 67114 67405 67406 67603 67603B 67604 67785B 67803 67804 67867B 67871 67872 68103 68104 68123 68124 68142 68163 68163A 68188 68189 68190 68190A 68630 68630A 9033330002 9165140616 9166140612 9322914008
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-10020

KP6#..5D

 1
67003-10030

KP6#..5D

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-10020

KP6#..5D

 1
67004-10040

KP6#..5D

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-10020

KP6#..4D,5D

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-10020

KP6#..4D,5D

 1
67405 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-10030

KP6#..5D

 1
67406 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-10030

KP6#..5D

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-1006006

KP6#..4D,5D

LIGHT BROWN,BROWN,TRIM4#

 1
67630-1008006

KP6#..5D

W/ARMREST,LIGHT BROWN,BROWN,TRIM4#

 1
67630-1006001

KP6#..4D,5D

BLACK,BLACK,TRIM2#

 1
67630-1010004

KP6#..5D

BLUE,BLUE,TRIM8#

 1
67630-1006004

KP6#..4D,5D

BLUE,BLUE,TRIM8#

 1
67630-1008004

KP6#..5D

W/ARMREST,BLUE,BLUE,TRIM8#

 1
67630-1010016

KP6#..4D,5D

LIGHT BROWN,BROWN,TRIM4#

 1
67630-1008016

KP6#..5D

W/ARMREST,LIGHT BROWN,BROWN,TRIM4#

 1
67630-1008001

KP6#..5D

W/ARMREST,BLACK,BLACK,TRIM2#

 1
67630-1010001

KP6#..4D,5D

BLACK,BLACK,TRIM2#

 1
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-11008

KP6#..4D,5D

 24
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-1008001

KP6#..5D

W/ARMREST,BLACK,BLACK,TRIM2#

 1
67640-1006006

KP6#..4D,5D

LIGHT BROWN,BROWN,TRIM4#

 1
67640-1008004

KP6#..5D

W/ARMREST,BLUE,BLUE,TRIM8#

 1
67640-1006001

KP6#..4D,5D

BLACK,BLACK,TRIM2#

 1
67640-1010004

KP6#..5D

BLUE,BLUE,TRIM8#

 1
67640-1008016

KP6#..5D

W/ARMREST,LIGHT BROWN,BROWN,TRIM4#

 1
67640-1008006

KP6#..5D

W/ARMREST,LIGHT BROWN,BROWN,TRIM4#

 1
67640-1006004

KP6#..4D,5D

BLUE,BLUE,TRIM8#

 1
67640-1010016

KP6#..4D,5D

LIGHT BROWN,BROWN,TRIM4#

 1
67640-1010001

KP6#..4D,5D

BLACK,BLACK,TRIM2#

 1
67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
69751-20030

KP6#..4D,5D

 2
67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
67841-10020

KP6#..4D,5D

 1
67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
67841-10020

KP6#..4D,5D

 1
67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67868-30040

KP6#..4D,5D

 36
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-10030

KP6#..5D

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-10030

KP6#..5D

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-10030

KP6#..5D

*TT,T=4.0

 1
68113-10040

KP6#..5D

*TEM,T=4.0

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-10030

KP6#..5D

*TT,T=4.0

 1
68114-10040

KP6#..5D

*TEM,T=4.0

 1
68123 - GLASS, REAR DOOR WINDOW, RH
68123-10040

KP6#..5D

*TEM,T=4.0

 1
68123-10030

KP6#..5D

*TT,T=4.0

 1
68124 - GLASS, REAR DOOR WINDOW, LH
68124-10030

KP6#..5D

*TT,T=4.0

 1
68124-10040

KP6#..5D

*TEM,T=4.0

 1
68142 - RUN, REAR DOOR GLASS
68142-10020

KP6#..5D

L=1898

 2
68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER
68180-10051

KP6#..4D,5D

RH

 1
68230-10010

KP6#..4D,5D

LH

 1
68180-10050

KP6#..4D,5D

RH

 1
68230-10011

KP6#..4D,5D

LH

 1
68163A - CLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
68211-10030

KP6#..4D,5D

 8
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-10020

KP6#..5D

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-10020

KP6#..5D

 1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68240-10010

KP6#..4D,5D

LH

 1
68190-10030

KP6#..4D,5D

RH

 1
68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)
68211-10030

KP6#..4D,5D

 8
68630 - CHECK ASSY, REAR DOOR
68630-10010

KP6#..4D,5D

 2
68630A - PIN(FOR REAR DOOR CHECK)
68617-22010

KP6#..4D,5D

 2
Common parts
90333-30002
91651-40616
91661-40612
93229-14008
