KP60R-PHMRS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )4D,5D

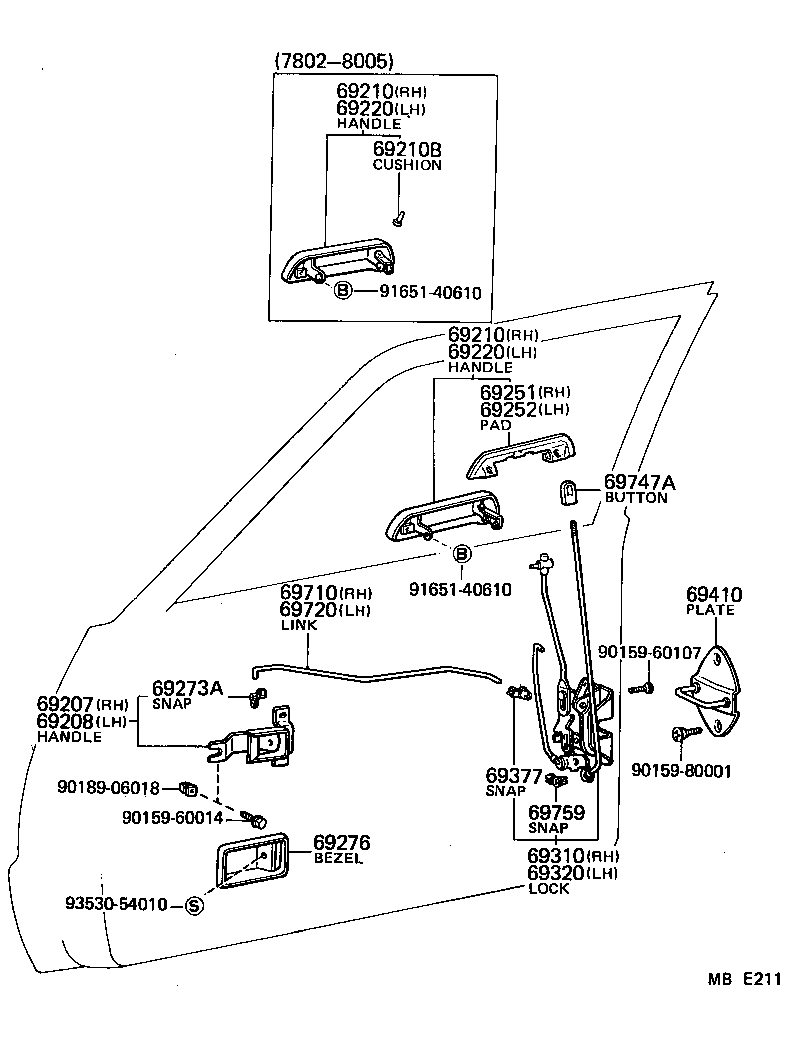

Click highlighted areas on diagram

diagram 69207 69208 69210 69210 69210B 69220 69220 69251 69252 69273A 69276 69310 69320 69377 69410 69710 69720 69747A 69759 9015960014 9015960107 9015980001 9018906018 9165140610 9165140610 9353054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1204005

KP6#..4D,5D

BEIGE,BEIGE,TRIM4#

 1
69205-1002004

KP6#..4D,5D

BLUE,BLUE,TRIM8#

 1
69205-1204001

KP6#..4D,5D

BLACK,BLACK,TRIM2#

 1
69205-1002001

KP6#..4D,5D

BLACK,BLACK,TRIM2#

 1
69205-1204004

KP6#..4D,5D

BLUE,BLUE,TRIM8#

 1
69205-1002005

KP6#..4D,5D

BEIGE,BEIGE,TRIM4#

 1
69205-1002004

KP6#..5D

BLUE,BLUE,TRIM8#

 1
69205-1002006

KP6#..4D,5D

LIGHT BROWN,BROWN,TRIM4#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1204005

KP6#..4D,5D

BEIGE,BEIGE,TRIM4#

 1
69206-1002004

KP6#..4D,5D

BLUE,BLUE,TRIM8#

 1
69206-1204001

KP6#..4D,5D

BLACK,BLACK,TRIM1#

 1
69206-1002001

KP6#..4D,5D

BLACK,BLACK,TRIM2#

 1
69206-1204004

KP6#..4D,5D

BLUE,BLUE,TRIM8#

 1
69206-1002005

KP6#..4D,5D

BEIGE,BEIGE,TRIM4#

 1
69206-1002006

KP6#..4D,5D

LIGHT BROWN,BROWN,TRIM4#

 1
69206-1002004

KP6#..5D

BLUE,BLUE,TRIM8#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-10030

KP6#

CHROME PLATED

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-10030

KP6#

CHROME PLATED

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

KP6#

 2
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-10030

KP6#

CHROME PLATED

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-10030

KP6#

CHROME PLATED

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69276-1001204

KP6#..4D,5D

BLUE,BLUE,TRIM8#

 2
69276-1001201

KP6#..4D,5D

BLACK,BLACK,TRIM2#

 2
69276-1001205

KP6#..4D,5D

BEIGE,BEIGE,TRIM4#

 2
69276-1001246

KP6#..4D,5D

LIGHT BROWN,BROWN,TRIM4#

 2
69276-1001204

KP6#..4D,5D

BLUE,BLUE,TRIM8#

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-10070

KP6#..4D,5D

 1
69310-10071

KP6#..(4D,5D)..GEN

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-10070

KP6#..4D,5D

 1
69320-10071

KP6#..(4D,5D)..GEN

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69377-30020

KP6#

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-22020

KP6#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-10020

KP6#..4D,5D

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-10030

KP6#..4D,5D

 1
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-2002001

KP6#..4D,5D

BLACK

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-12030

KP6#

 4
Common parts
90159-60014
90159-60107
90159-80001
90189-06018
91651-40610
93530-54010
