KP60R-PHMRS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

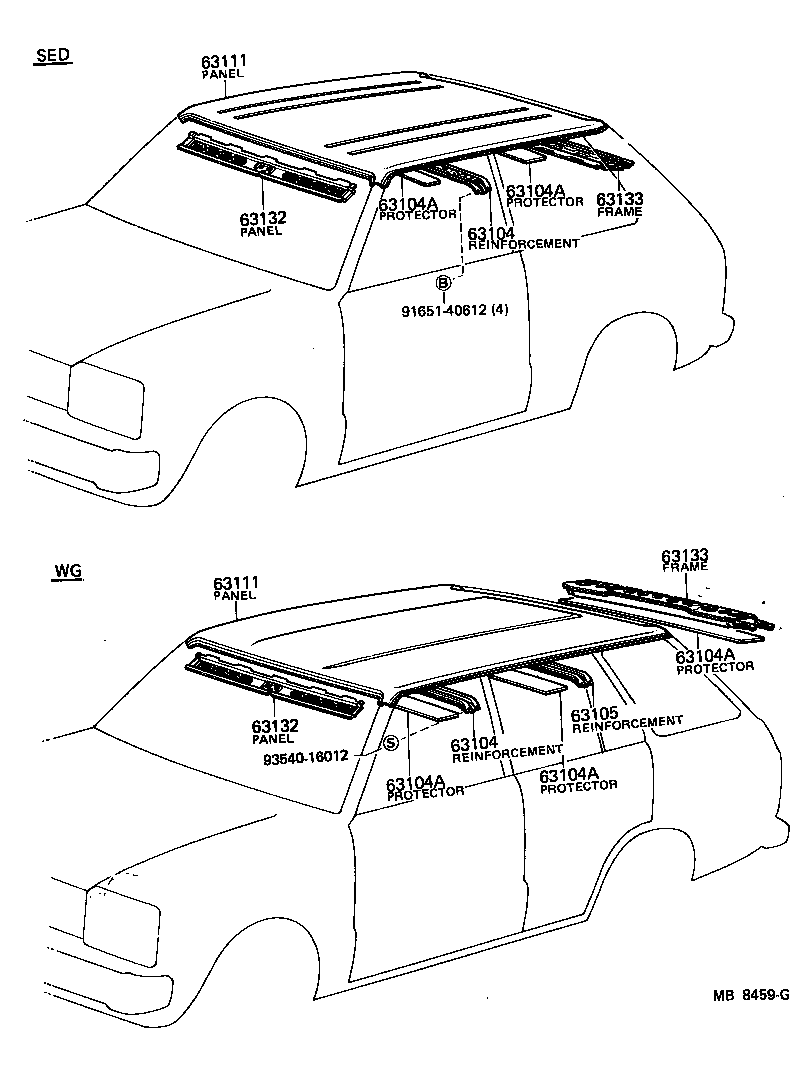

Click highlighted areas on diagram

diagram 63104 63104 63104A 63104A 63104A 63104A 63104A 63105 63111 63111 63132 63132 63133 63133 9165140612 9354016012
Part # Description Qty Price
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-10040

KP6#..SED

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-10040

KP6#..SED

 1
63111 - PANEL, ROOF
63111-10050

KP6#..SED

 1
63111 - PANEL, ROOF
63111-10050

KP6#..SED

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-10070

KP6#

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-10070

KP6#

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63105-10020

KP6#..SED

W/RR WINDOW WIPER

 1
63105-10030

KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG

 1
63105-10040

KP6#..SED

W/O RR WINDOW WIPER,*DEF

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63105-10020

KP6#..SED

W/RR WINDOW WIPER

 1
63105-10030

KP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..LHD..4F..GEN;KP62..SED..LHD..4F..EUG

 1
63105-10040

KP6#..SED

W/O RR WINDOW WIPER,*DEF

 1
Common parts
91651-40612
93540-16012
