KP60R-PHMRS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

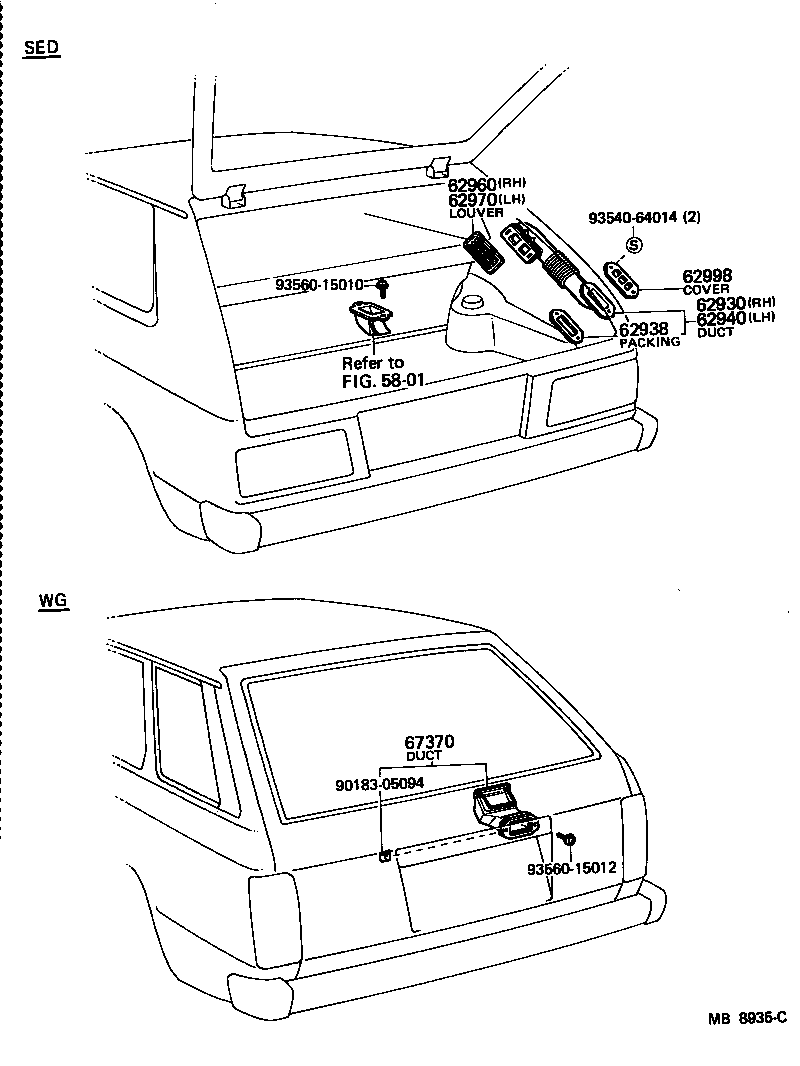

Click highlighted areas on diagram

diagram 5801 62930 62938 62940 62960 62970 62998 67370 9018305094 9354064014 9356015010 9356015012
Part # Description Qty Price
62930 - DUCT ASSY, ROOF SIDE VENT, RH
62930-10010

KP6#..SED

 1
62938 - PACKING,QUARTER VENT DUCT
62937-10010

KP6#..SED

 2
62940 - DUCT ASSY, ROOF SIDE VENT, LH
62940-10010

KP6#..SED

 1
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62905-10090

KP6#..SED

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62905-10090

KP6#..SED

 1
Common parts
90183-05094
93540-64014
93560-15010
93560-15012
Linked diagrams
5801
