KP60R-PHMRS (1978)
Toyota Starlet
Production
Feb 1978
-
Aug 1982
Engine
2K
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7802- )SED

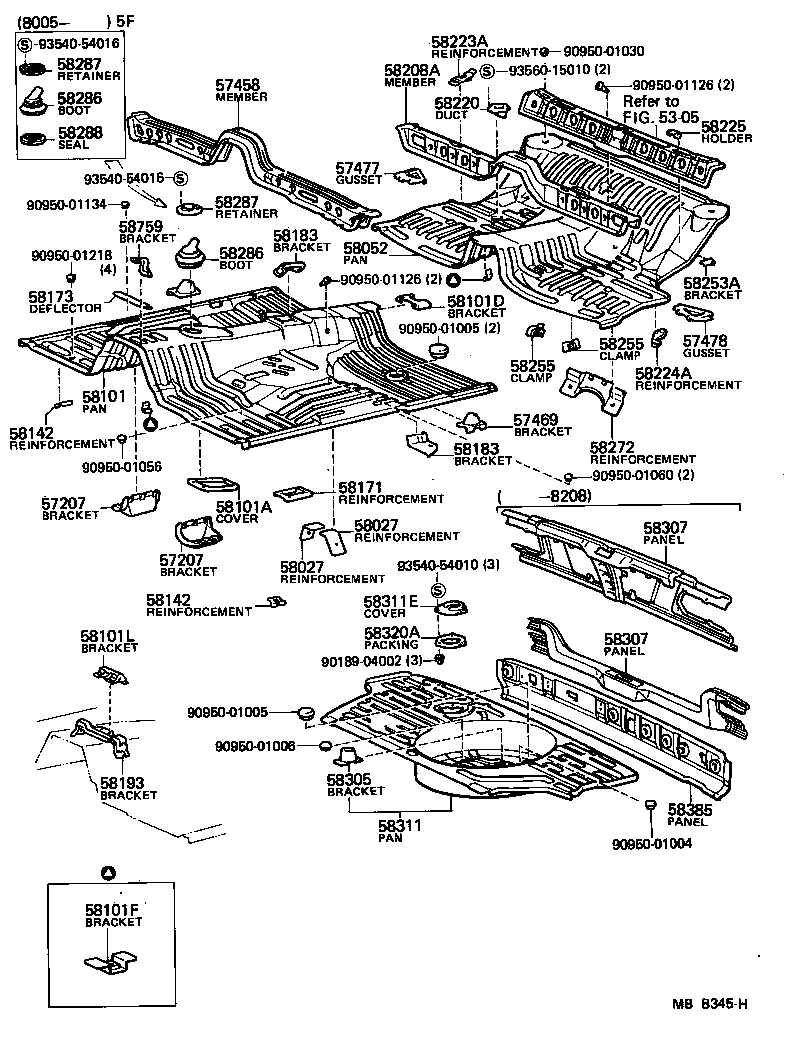

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57207-10011 |
KP6# RH |
1 | ||
| 57208-10030 |
KP6# LH |
1 | ||
| 57208-10031 |
KP6# LH |
1 | ||
| 57207-10010 |
KP6# RH |
1 | ||
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57207-10011 |
KP6# RH |
1 | ||
| 57208-10030 |
KP6# LH |
1 | ||
| 57208-10031 |
KP6# LH |
1 | ||
| 57207-10010 |
KP6# RH |
1 | ||
| 57458 - MEMBER, FRONT FLOOR CROSS, NO.1 | ||||
| 57451-10030 |
KP6# |
1 | ||
| 57451-10031 |
KP6# |
1 | ||
| 57408-10030 |
KP6# |
1 | ||
| 57408-10020 |
KP6# |
1 | ||
| 57469 - BRACKET, FRONT SEAT, OUTSIDE | ||||
| 57468-10010 |
KP6# RH |
1 | ||
| 57469-10010 |
KP6# LH |
1 | ||
| 57477 - GUSSET, REAR SEAT, RH | ||||
| 57477-10020 |
KP6#..5D |
1 | ||
| 57478 - GUSSET, REAR SEAT, LH | ||||
| 57478-10020 |
KP6#..5D |
1 | ||
| 58027 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1 | ||||
| 58161-10020 |
KP6# |
2 | ||
| 58027 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1 | ||||
| 58161-10020 |
KP6# |
2 | ||
| 58052 - PAN SUB-ASSY, CENTER FLOOR | ||||
| 58201-10110 |
KP6#..SED |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58111-10061 |
KP6# |
1 | ||
| 58111-10060 |
KP6# |
1 | ||
| 58101D - BRACKET, PARKING BRAKE CABLE GUIDE | ||||
| 58264-10020 |
KP6# |
1 | ||
| 58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN | ||||
| 58141-10020 |
KP6# |
2 | ||
| 58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN | ||||
| 58141-10020 |
KP6# |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-12030 |
KP6# |
1 | ||
| 58173 - DEFLECTOR, FRONT FLOOR STONE | ||||
| 58173-10020 |
KP6# |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58184-10030 |
KP6# LH |
1 | ||
| 58183-10030 |
KP6# RH |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58184-10030 |
KP6# LH |
1 | ||
| 58183-10030 |
KP6# RH |
1 | ||
| 58208A - MEMBER, CENTER FLOOR CROSS, NO.1 | ||||
| 57461-10021 |
KP6#..SED |
1 | ||
| 58220 - DUCT ASSY, CENTER FLOOR VENT | ||||
| 58220-10010 |
KP6#..SED |
1 | ||
| 58223A - REINFORCEMENT, FLOOR SIDE PANEL, RH | ||||
| 58213-10010 |
KP6#..SED |
1 | ||
| 58224A - REINFORCEMENT, FLOOR SIDE PANEL, LH | ||||
| 58214-10010 |
KP6#..SED |
1 | ||
| 58225 - HOLDER, REAR SEAT CUSHION | ||||
| 58225-10010 |
KP6#..SED |
2 | ||
| 58253A - BRACKET, PARKING CABLE CLAMP | ||||
| 58253-10020 |
KP6#..SED |
1 | ||
| 58255 - CLAMP, PARKING BRAKE CABLE, NO.1 | ||||
| 58208-10080 |
KP6#..SED LH |
1 | ||
| 58207-10060 |
KP6#..SED RH |
1 | ||
| 58255 - CLAMP, PARKING BRAKE CABLE, NO.1 | ||||
| 58208-10080 |
KP6#..SED LH |
1 | ||
| 58207-10060 |
KP6#..SED RH |
1 | ||
| 58272 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58270-10010 |
KP6#..SED |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58209-10010 |
KP6# |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58209-10010 |
KP6# |
1 | ||
| 58287 - RETAINER, SHIFT LEVER BOOT | ||||
| 58287-10020 |
KP6# |
1 | ||
| 58287 - RETAINER, SHIFT LEVER BOOT | ||||
| 58287-10020 |
KP6# |
1 | ||
| 58288 - SEAL, SHIFT LEVER BOOT | ||||
| 58288-10030 |
KP6#..5F |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
KP6#..SED |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-10180 |
KP6#..SED W/BIG BUMPER |
1 | ||
| 58307-10150 |
KP6#..SED W/SMALL BUMPER |
1 | ||
| 58307-10151 |
KP6#..SED |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-10180 |
KP6#..SED W/BIG BUMPER |
1 | ||
| 58307-10150 |
KP6#..SED W/SMALL BUMPER |
1 | ||
| 58307-10151 |
KP6#..SED |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58301-10070 |
KP6#..SED |
1 | ||
| 58301-10071 |
KP6#..SED |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-10010 |
KP6#..SED |
1 | ||
| 58320A - PACKING, REAR FLOOR SERVICE HOLE | ||||
| 58339-10020 |
KP6#..SED |
1 | ||
| 58385 - PANEL, REAR VALANCE | ||||
| 58308-10020 |
KP6#..SED |
1 | ||
| 58308-10021 |
KP6#..SED |
1 | ||
| Common parts | ||||
| 90189-04002 | ||||
| 90950-01004 | ||||
| 90950-01005 | ||||
| 90950-01006 | ||||
| 90950-01030 | ||||
| 90950-01056 | ||||
| 90950-01060 | ||||
| 90950-01126 | ||||
| 90950-01134 | ||||
| 90950-01218 | ||||
| 93540-54010 | ||||
| 93540-54016 | ||||
| 93560-15010 | ||||
| Linked diagrams | ||||
| 5305 | ||||
