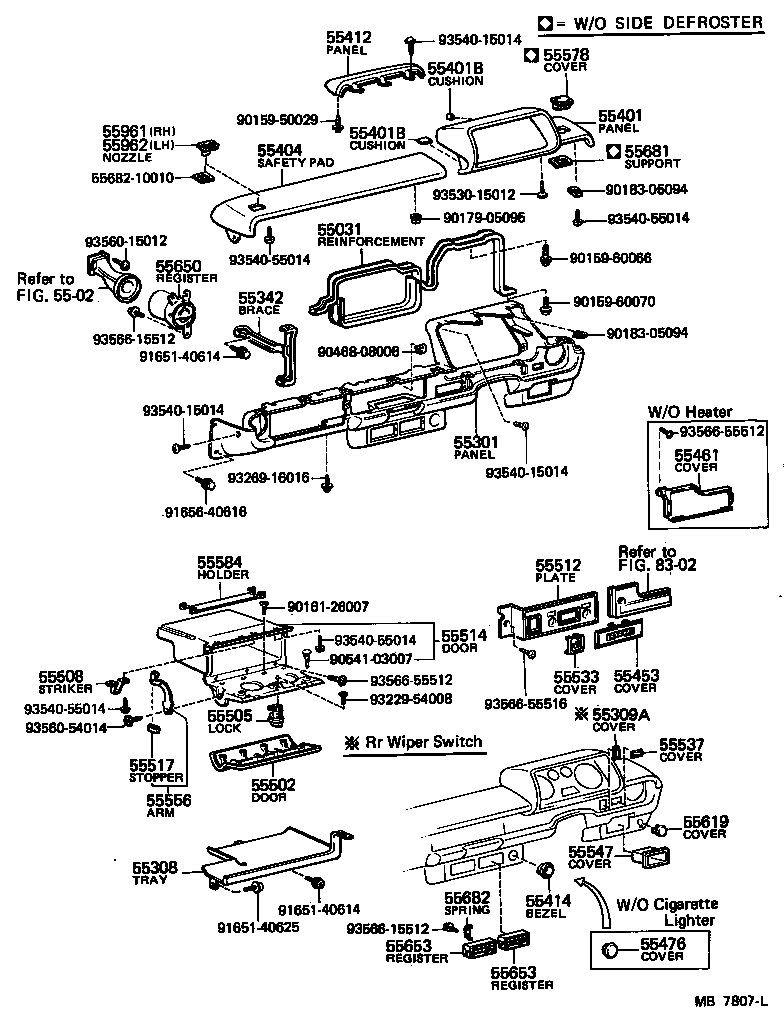

KP60R-PHMRS (1978)
Toyota Starlet
(7802-8208)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1 | ||||
| 55330-10010 |
KP6#..RHD |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-1010004 |
KP6#..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55311-1010001 |
KP6#..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55301-1034101 |
KP6#..SED..RHD ALMINISH,BLACK,BLACK,TRIM2# |
1 | ||
| 55311-1010004 |
KP6#..SED..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55311-1010005 |
KP6#..RHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55301-1034106 |
KP6#..SED..RHD ALMINISH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55301-1034104 |
KP6#..SED..RHD ALMINISH,BLUE,BLUE,TRIM8# |
1 | ||
| 55311-1010006 |
KP6#..RHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-10020 |
KP6#..RHD |
1 | ||
| 55309A - COVER, BASE SWITCH HOLE, NO.1 | ||||
| 55384-2001101 |
KP6# BLACK,BLACK,TRIM2# |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-10010 |
KP6#..RHD |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55411-1010005 |
KP6#..RHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55411-1010004 |
KP6#..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55411-1010006 |
KP6#..RHD L-BROWN,BROWN,TRIM4# |
1 | ||
| 55411-1010001 |
KP6#..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55411-1010004 |
KP6#..SED..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55401B - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-10010 |
KP6# UPR,L=6 |
3 | ||
| 55419-10020 |
KP6# LWR,L=30 |
2 | ||
| 55401B - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-10010 |
KP6# UPR,L=6 |
3 | ||
| 55419-10020 |
KP6# LWR,L=30 |
2 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1014005 |
KP6#..SED..RHD..GEN BEIGE,BEIGE,TRIM4# |
1 | ||
| 55401-1014004 |
KP60,62..SED..RHD..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 55401-1014001 |
KP60,62..SED..RHD..GEN BLACK,BLACK,TRIM2# |
1 | ||
| 55401-1014006 |
KP60,62..SED..RHD..GEN L-BROWN,BROWN,TRIM4# |
1 | ||
| 55412 - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-1002004 |
KP6#..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55414-1002001 |
KP6#..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55414-1002006 |
KP6#..RHD L-BROWN,BROWN,TRIM4# |
1 | ||
| 55414-1002005 |
KP6#..RHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55414-1002004 |
KP6#..SED..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-10020 |
KP6# |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-1002004 |
KP6#..SED BLUE,BLUE,TRIM8# |
1 | ||
| 55522-1002001 |
KP6# BLACK,BLACK,TRIM2# |
1 | ||
| 55522-10010 |
KP6#..RHD |
1 | ||
| 55522-1002104 |
KP6#..SED BLUE,BLUE,TRIM8# |
1 | ||
| 55522-1002101 |
KP6# BLACK,BLACK,TRIM2# |
1 | ||
| 55522-1002005 |
KP6# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55522-1002106 |
KP6# L-BROWN,BROWN,TRIM4# |
1 | ||
| 55461 - COVER, HEATER CONTROL HOLE | ||||
| 55523-1001004 |
KP6#..RHD..GEN W/O HEATER,BLUE,BLUE,TRIM8# |
1 | ||
| 55523-1001005 |
KP6#..RHD..GEN W/O HEATER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55523-1001006 |
KP60,62..RHD..GEN W/O HEATER,L-BROWN,BROWN,TRIM4# |
1 | ||
| 55523-1003004 |
KP60,62..SED..RHD..GEN ALMINISH,W/O HEATER,BLUE,BLUE,TRIM8# |
1 | ||
| 55523-1001004 |
KP60,62..SED..RHD..GEN W/O HEATER,BLUE,BLUE,TRIM8# |
1 | ||
| 55523-1003006 |
KP60,62..SED..RHD..GEN ALMINISH,W/O HEATER,L-BROWN,BROWN,TRIM4# |
1 | ||
| 55523-1001001 |
KP60,62..RHD..GEN W/O HEATER,BLACK,BLACK,TRIM2# |
1 | ||
| 55523-1003001 |
KP60,62..SED..RHD..GEN ALMINISH,W/O HEATER,BLACK,BLACK,TRIM2# |
1 | ||
| 55476 - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55477-10010 |
KP6# |
1 | ||
| 55502 - DOOR SUB-ASSY, GLOVE COMPARTMENT, OUTER | ||||
| 55551-1001005 |
KP6# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55551-1001004 |
KP6# BLUE,BLUE,TRIM8# |
1 | ||
| 55502-1001104 |
KP6#..SED ALMINISH,BLUE,BLUE,TRIM8# |
1 | ||
| 55502-1001106 |
KP6#..SED ALMINISH,L-BROWN,BROWN,TRIM4# |
1 | ||
| 55502-1001101 |
KP6#..SED ALMINISH,BLACK,BLACK,TRIM2# |
1 | ||
| 55551-1001004 |
KP6#..SED BLUE,BLUE,TRIM8# |
1 | ||
| 55551-1001001 |
KP6# BLACK,BLACK,TRIM2# |
1 | ||
| 55551-1001006 |
KP6# L-BROWN,BROWN,TRIM4# |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-12020 |
KP6# |
1 | ||
| 55508 - STRIKER SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-10010 |
KP6# |
1 | ||
| 55512 - PLATE, RADIO TUNER FINISH | ||||
| 55513-1004004 |
KP6#..RHD W/RADIO,CLOCK,L=124,BLUE,BLUE,TRIM8# |
1 | ||
| 55513-1004001 |
KP6#..RHD W/RADIO,CLOCK,L=124,BLACK,BLACK,TRIM2# |
1 | ||
| 55513-1004005 |
KP6#..RHD W/RADIO,CLOCK,L=124,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55513-1006005 |
KP6#..RHD BEIGE,BEIGE,TRIM4# |
1 | ||
| 55513-1006004 |
KP6#..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55513-1006001 |
KP6#..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55513-1006101 |
KP6#..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55513-1006104 |
KP6#..SED..RHD BLUE,BLUE,TRIM8# |
1 | ||
| 55405-1009006 |
KP6#..SED..RHD ALMINISH,L-BROWN,BROWN,TRIM4# |
1 | ||
| 55405-1009004 |
KP6#..SED..RHD ALMINISH,BLUE,BLUE,TRIM8# |
1 | ||
| 55513-1006106 |
KP6#..RHD L-BROWN,BROWN,TRIM4# |
1 | ||
| 55405-1009001 |
KP6#..SED..RHD ALMINISH,BLACK,BLACK,TRIM2# |
1 | ||
| 55514 - DOOR, GLOVE COMPARTMENT, INNER | ||||
| 55552-10010 |
KP6# |
1 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-14010 |
KP6# |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-10011 |
KP6#..RHD |
1 | ||
| 55533-10010 |
KP6#..RHD |
1 | ||
| 55533-10010 |
KP6# |
1 | ||
| 55537 - COVER, REAR WINDOW DEFOGGER SWITCH HOLE | ||||
| 55537-22010 |
KP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-10020 |
KP6#..RHD |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-10020 |
KP6# |
1 | ||
| 55578 - COVER, SIDE DEFROSTER OPENING, RH | ||||
| 55578-1001001 |
KP60,62..SED..RHD..GEN BLACK,BLACK,TRIM2# |
1 | ||
| 55578-1001006 |
KP60,62..SED..RHD..GEN L-BROWN,BROWN,TRIM4# |
1 | ||
| 55578-1001005 |
KP6#..SED..RHD..GEN BEIGE,BEIGE,TRIM4# |
1 | ||
| 55578-1001004 |
KP60,62..SED..RHD..GEN BLUE,BLUE,TRIM8# |
1 | ||
| 55584 - HOLDER, MAP | ||||
| 55584-10030 |
KP6# |
1 | ||
| 55619 - COVER, SWITCH HOLE | ||||
| 55617-10010 |
KP6#..RHD |
1 | ||
| 55619-1401001 |
KP6#..RHD BLACK,BLACK |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-10010 |
KP6# |
2 | ||
| 55653 - REGISTER, INSTRUMENT PANEL, NO.3 | ||||
| 55063-12010 |
KP6# |
2 | ||
| 55653 - REGISTER, INSTRUMENT PANEL, NO.3 | ||||
| 55063-12010 |
KP6# |
2 | ||
| 55681 - SUPPORT, INSTRUMENT PANEL REGISTER, NO.1 | ||||
| 55682-10010 |
KP60,62..SED..GEN |
1 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 58914-22010 |
KP6# |
1 | ||
| 55686-10020 |
KP6# |
1 | ||
| Common parts | ||||
| 55682-10010 | ||||
| 90159-50029 | ||||
| 90159-60066 | ||||
| 90159-60070 | ||||
| 90161-26007 | ||||
| 90179-05095 | ||||
| 90183-05094 | ||||
| 90468-08008 | ||||
| 90541-03007 | ||||
| 91651-40614 | ||||
| 91651-40625 | ||||
| 91656-40616 | ||||
| 93229-54008 | ||||
| 93269-16016 | ||||
| 93530-15012 | ||||
| 93540-15014 | ||||
| 93540-55014 | ||||
| 93560-15012 | ||||
| 93560-54014 | ||||
| 93566-15512 | ||||
| 93566-55512 | ||||
| 93566-55516 | ||||
| Linked diagrams | ||||
| 5502 | ||||
| 8302 | ||||
