KP60R-PHMRS (1978)

Toyota Starlet

Production Feb 1978 - Aug 1982
Engine 2K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7802- )

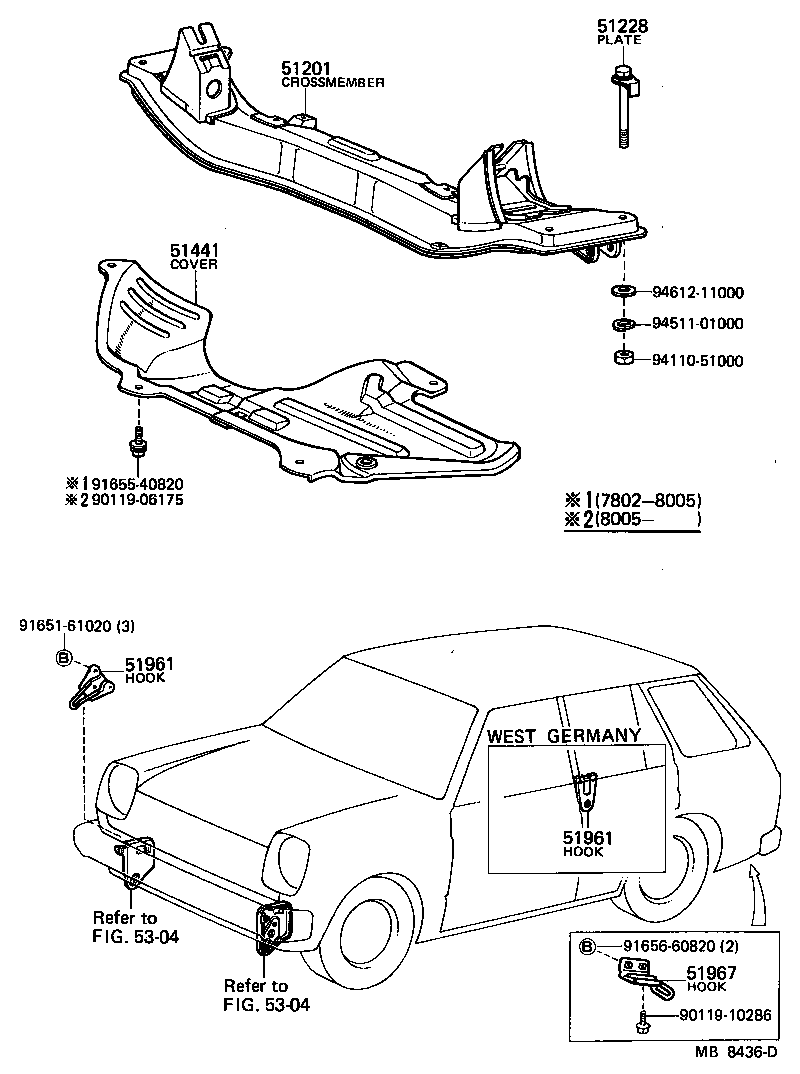

Click highlighted areas on diagram

diagram 51201 51228 51441 51961 51961 51967 5304 5304 9011906175 9011910286 9165161020 9165540820 9165660820 9411051000 9451101000 9461211000
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-10040

KP6#..RHD

 1
51228 - PLATE, SUSPENSION MEMBER SET
51229-10010

KP60

 4
51441 - COVER, ENGINE UNDER, NO.1
51405-10010

KP6#

 1
Common parts
90119-06175
90119-10286
91651-61020
91655-40820
91656-60820
94110-51000
94511-01000
94612-11000
Linked diagrams
5304
